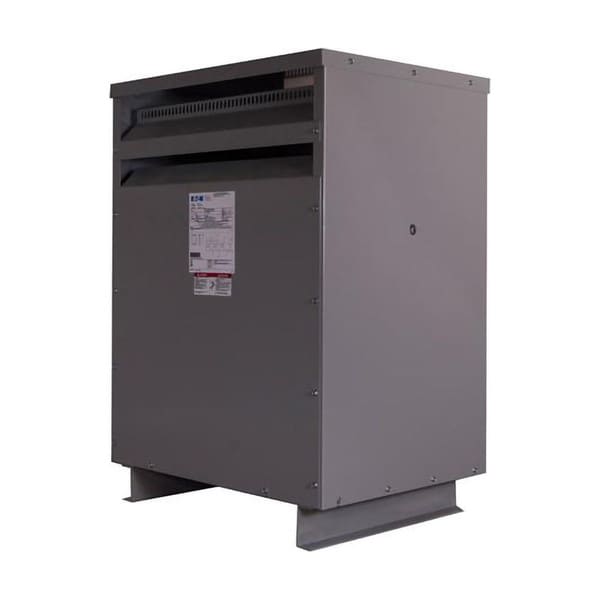

V48M28T1516 - Doe 2016 Efficient Transformer

The DOE 2016 Efficient Transformer is a high-performance, energy-efficient solution designed to meet the latest Department of Energy (DOE) 2016 standards. This three-phase transformer provides reliable voltage conversion from a primary voltage of 480 V to a secondary voltage of 208Y/120 V, making it ideal for commercial and industrial applications. With a 15 kVA power rating and aluminum windings, it supports various tap configurations for voltage flexibility and features a 150 °C temperature rise rating for enhanced thermal performance.

Key Features:

• 15 kVA power rating for efficient energy distribution
• Primary voltage: 480 V | Secondary voltage: 208Y/120 V
• Tap configuration: 2 at +2.5% FCAN, 4 at -2.5% FCBN for voltage adjustment
• Complies with DOE 2016 efficiency standards
• Aluminum windings for cost-effective, lightweight performance
• 150 °C temperature rise rating | Three-phase operation

This DOE 2016 Efficient Transformer is a dependable and energy-conscious choice for consistent voltage regulation in demanding electrical systems.

Documents:

Specifications and datasheets

Eaton Specification Sheet - V48M28T1516
