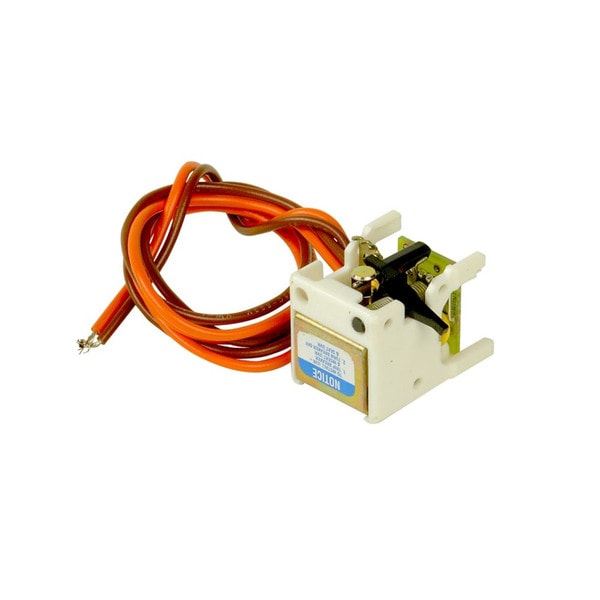

UVH1LP08K - Eaton Molded Case Circuit Breaker Accessory Undervoltage Release

The Eaton Molded Case Circuit Breaker Accessory Undervoltage Release is an essential add-on designed to provide automatic circuit breaker tripping when control voltage drops below a specified level. This field-mounted undervoltage release mechanism is equipped with pigtail leads for easy wiring and is engineered for reliable operation. Designed for use with F-Frame and J-K Frame breakers in the Series C line, it ensures enhanced system protection and control.

Key Features:

• Product Type: Undervoltage Release Mechanism
• Mounting Type: Field Mounted
• Wiring Type: Pigtail Leads
• Voltage Rating: 110-127 Volts
• Compatible Frames: F-Frame, J-K Frame
• Series: Series C

This undervoltage release accessory plays a critical role in protecting sensitive electrical systems, automatically disconnecting power during voltage drops to enhance safety and system stability.

Documents:

Application notes
Application of Multi-Wire Terminals for Molded Case Circuit Breakers

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Specifications and datasheets
Series C F-Frame molded case circuit breakers
