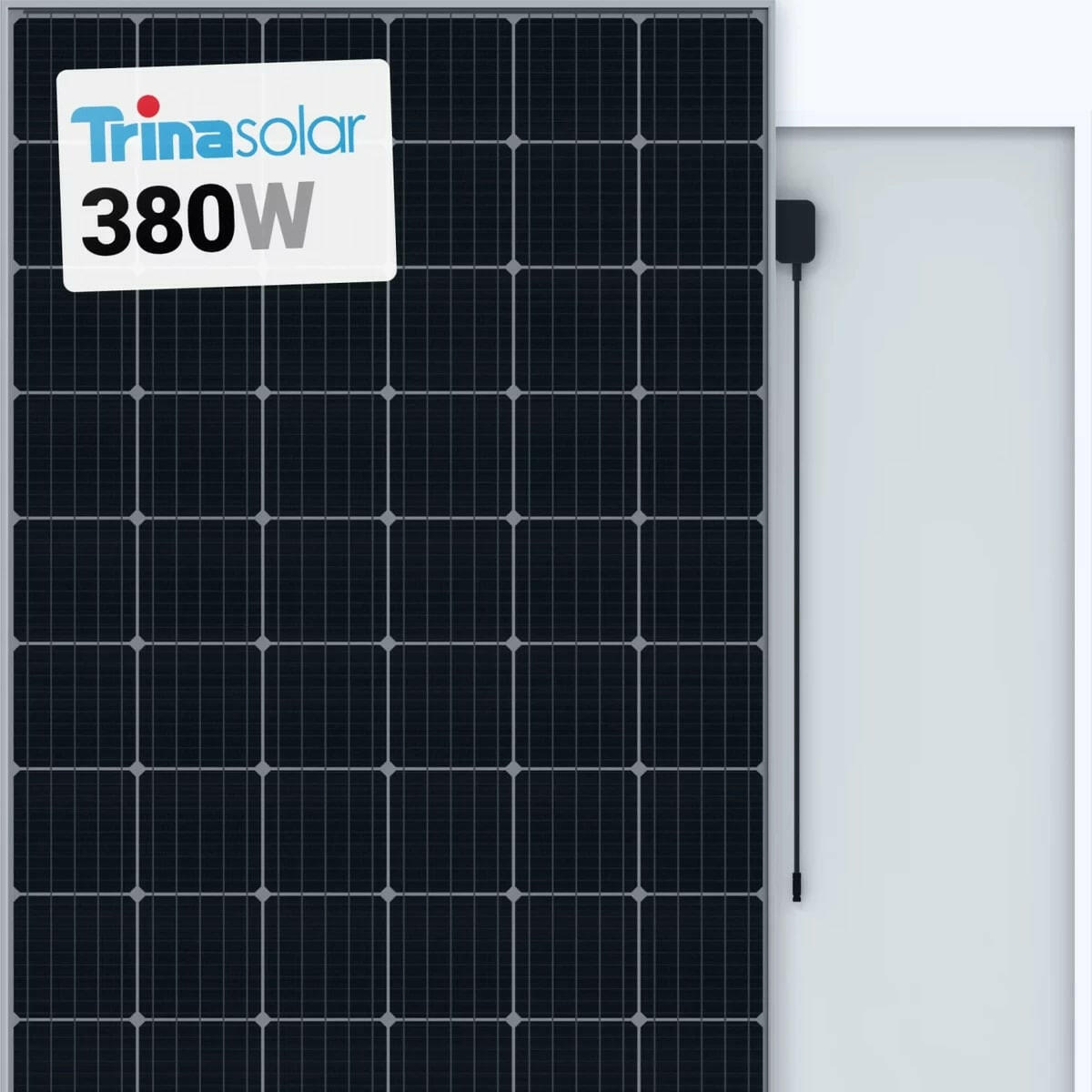

TrinaSolar TSM-380-DE14A(II) 380W Mono Solar Panel

Trina Solar's TALLMAX modules enable commercial and utility-scale solar projects to realize significant system savings. As a vertically integrated company, Trina Solar controls the quality for our PV systems across the entire supply chain, mitigating risk and boosting ROI. Trina Solar was the first PV company to be awarded UL's Client Test Data Program Certification, allowing us to test and issue UL-recognized quality standards.

Features

• The high-performance solar solution - The TALLMAX M PLUS modules are one of the industries most trusted products for ground-mount and commercial/industrial rooftop installations. Also available with an industry-leading 1500V UL/IEC, the TALLMAX M PLUS modules are the industry standard for commercial, industrial and utility scale installations. The advanced monocrystalline technology enables a more uniform, aesthetically pleasing look
• Highly reliable due to stringent quality control - TALLMAX, TALLMAX M PLUS and TALLMAX 1500V modules are recognized by industry professionals for their proven historical performance in the field and high manufactured quality. Their industry leading quality and reliability is assured by Trina's rigorous in-house testing program that includes over 30 tests, and goes well beyond the requirements of reputed industry standard certification bodies
• A partner you can count on - Your solar project is an investment that will span decades. At Trina Solar, we offer an industry-leading Limited Manufacturer's Warranty for 25 years on a linear degradation
• Split-cell technology - upgrade option - Trina Solar half-cut modules are developed by replacing the full cell with half-cut cell technology and are available in both poly- and monocrystalline. Two pieces of half cells are connected in series; the power loss caused by ribbon resistance is reduced to 1/4 of that in full cell. The special cell string design makes each cell string can work independently which can significantly reduce the energy loss due to the mismatch problem which may be caused by shading between modules
• Ideal for Large Scale Installations - High power footprint reduces installation time and BOS costs. Reduce BOS cost by connecting more modules in a string. 1500 V UL/1500 V IEC certified
• High Efficiency - Excellent low light performance on cloudy days, mornings and evenings: advanced surface texturing, back surface field and selective emitter. Maximize limited space with high efficiency: up to 193w/m² power density, low thermal coefficients for greater energy production at high operating temperatures
• Reliable - Highly reliable due to stringent quality control. All modules have to pass electroluminescence (EL) inspection. Over 30 in-house tests (UV, TC, HF, and many more). In house testing goes well beyond certification requirements. PID resistant
• Certified to withstand the most challenging environmental conditions - 2400Pa negative load, 5400Pa positive load

Specifications

• Series/Model: TallMax M Plus+
• Length: 1960 mm
• Width: 992 mm
• Height: 40 mm
• Frame Depth: 40 mm
• Cells Technology: Monocrystalline Framed
• Cell Dimensions: 6 in x 6 in
• Number of Half Cells: 72 (6 x 12)
• Maximum Power (Pmax): 380 W STC / 283 W NOCT / 353.6 W PTC
• Maximum Power Voltage (Vmp): 40.3 V STC / 37.2 V NOCT
• Maximum Power Current (Imp): 9.43 A STC / 7.6 A NOCT
• Open-Circuit Voltage (VOC): 48.8 V STC / 45.3 V NOCT
• Short-Circuit Current (Isc): 9.94 A STC / 8.03 A NOCT
• Maximum System Voltage: 1500 VDC (IEC/UL)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 19.5%
• Frame Material: Anodized Aluminum Alloy
• Front Glass: 3.2 mm (0.12 in), High Transmission, Anti-Reflection Coated Heat Strengthened Glass
• Frame Color: Clear
• Backsheet Color: Black
• Irradiance: 1000W/m² STC / 800W/m² NOCT
• Output Cables: Photovoltaic Technology Cable 4.0 mm² (0.006 sq-in), 1200 mm (47.2 in)
• Connector Type: Trina TS4
• Fire Type: Type 1 or Type 2
• Front Side Maximum Static Loading: 5400 Pa
• Rear Side Maximum Static Loading: 2400 Pa
• Operating Temperature: -40 to 185°F
• Cell Temperature: 25°C STC
• Ambient Temperature: 20°C NOCT
• Temperature Coefficients of Pmax: -0.39%/°C
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.29%/°C
• Temperature Coefficients of Isc: -0.05%/°C
• Nominal Operating Cell Temperature: 44 ± 2°C
• Air Mass (AM): 1.5 STC / 1.5 NOCT
• Junction Box: IP67 or IP68 Rated
• Power Output Tolerance: 0-5 W
• Encapsulant: Ethylene Vinyl Acetate (EVA) (White/Transparent)
• Standards: CE, UL, TUV, PV Cycle, cULus, IEC 61215/IEC 61730/UL 1703/IEC 61701/IEC 62716, ISO 9001: Quality Management System, ISO 14001: Environmental Management System, ISO 14064: Greenhouse Gases Emissions Verification, OHSAS 18001: Occupational Health and Safety Management System
• Warranty: 10 Years Product, 25 Years Power
• Weight: 22.5 kg

Documents

• Specification Sheet
• Instruction/Installation Manual
• Warranty Information
