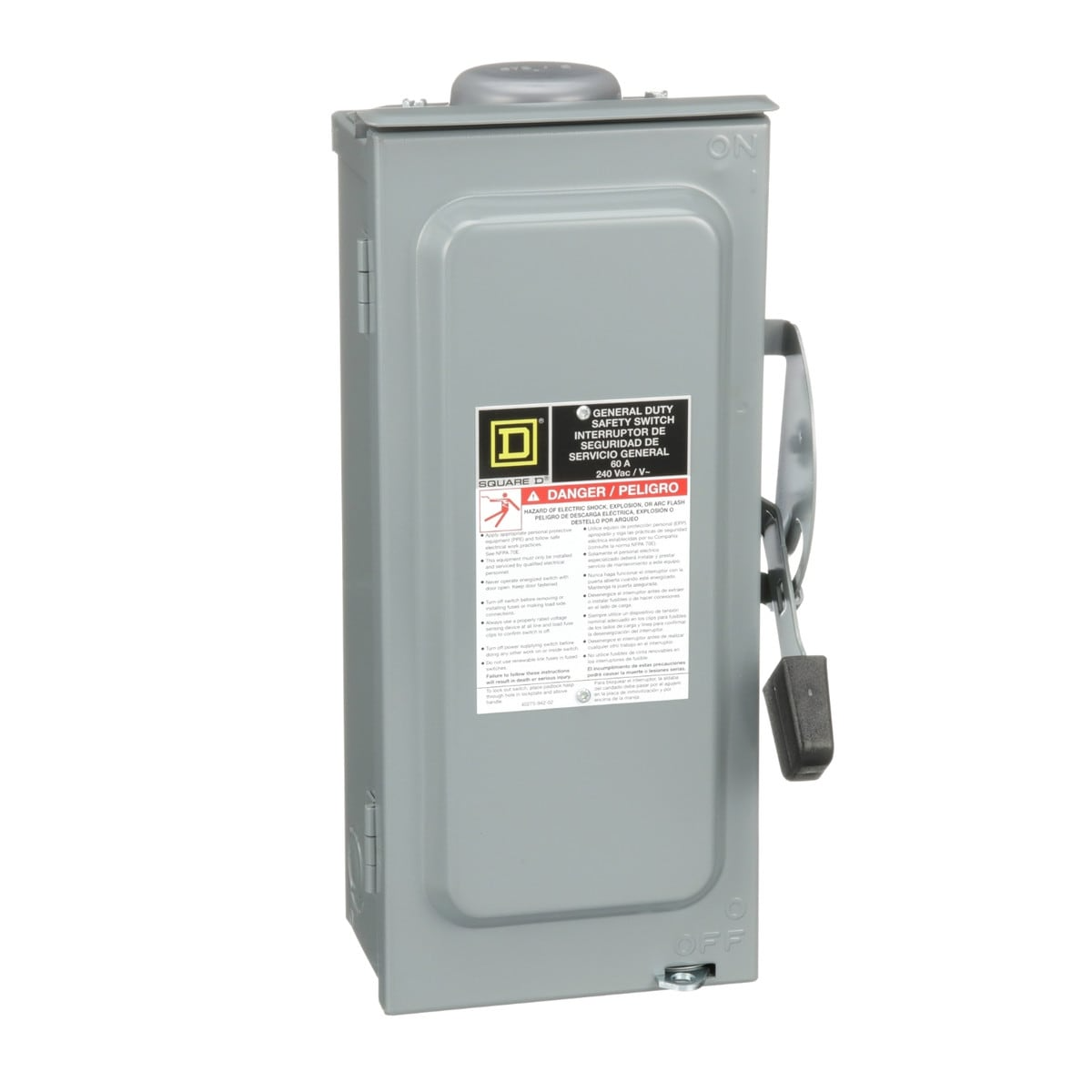

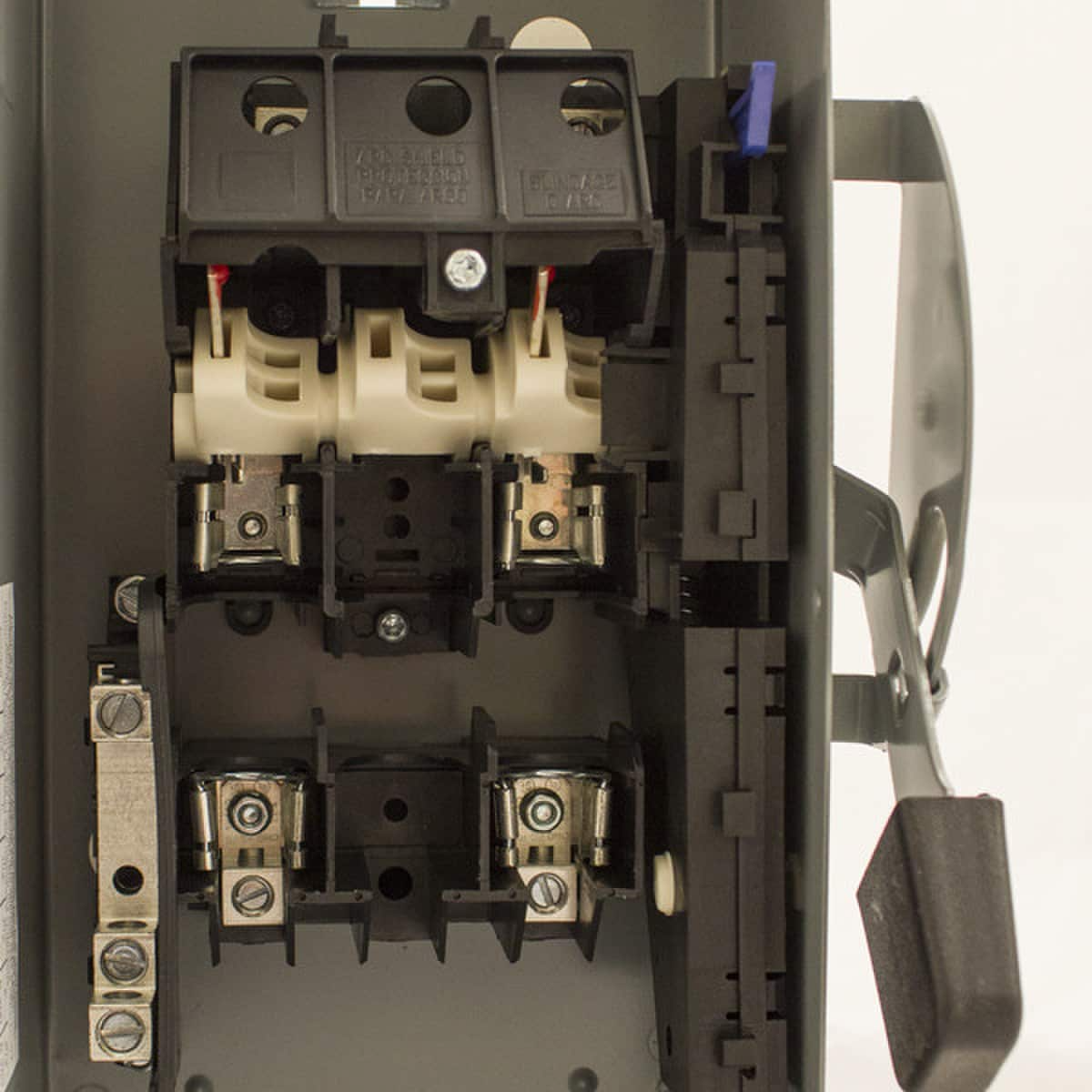

Square D/Schneider Electric D22 60 A Fusible Disconnect Safety Switch

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 60A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 2-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 12 AWG 3, aluminum & AWG 14 AWG 3, copper. This switch is certified to UL standards. Dimensions for this product are 14.88 in (H), 7.45 in (W), 4.87 in (D). General Duty safety switches come with an 18 months warranty.

Features

• Excellent for disconnecting lighting, air condition, and appliances
• Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
• Quick make, quick break operating mechanism


Specifications

• Type: Single Throw, Fusible Disconnect
• Series/Model: D22
• Nominal Voltage Rating: 240 VAC
• Frequency Rating: 60 Hz
• Phase: 1
• Number of Poles: 2
• Current Rating: 60 A
• Enclosure Rating: NEMA 3R
• Dimensions: 14.88 in Height x 7.45 in Width x 4.87 in Depth
• Wire Size:
  • 14-3 AWG Copper
  • 12-3 AWG Aluminum
• Short Circuit Rating: 100 kA
• Power Rating:
  • 1.5 hp at 120 V AC 60 Hz (1 Phase)
  • 3 hp at 120 V AC 60 Hz (3 Phase)
  • 7.5 hp at 240 V AC 60 Hz (3 Phase)
  • 10 hp at 240 V AC 60 Hz (1 Phase)
  • 15 hp at 240 V AC 60 Hz (3 Phase)
• Mounting Type: Surface
• Connection Type: Lug
• Number of Wires: 3
• Torque Rating: 35-50 in-lbf
• Standards: UL Listed
• Warranty: 18 Months
• Weight: 8.82 lb
• Application: Residential


Documents

• Specification Sheet
• Catalog
• Technical Drawing
• Instruction/Installation Manual
