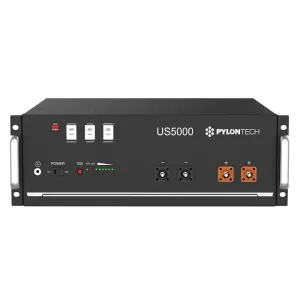

Pylontech US5000 48 V LiFePO4 Battery

The Pylontech US5000 is a high-performance 48 V lithium-iron-phosphate (LiFePO₄) battery module delivering 4.8 kWh nominal capacity (4.56 kWh usable) per module. Designed for residential and commercial energy storage systems, this battery offers long cycle life, scalable modularity, and broad inverter compatibility.

Key Features

• Nominal Voltage: 48 V.

• Nominal Capacity: 4.8 kWh; usable ~4.56 kWh at 95% depth of discharge (DoD).

• Cycle Life: >6,000 cycles at 25 °C (typical) for long term reliability.

• Modular design: Up to 16 modules can be paralleled (72.96 kWh) without additional hardware.

• Communications: RS485 and CAN interface for integration with major inverter brands.

• Compact: Dimensions ~442×420×161 mm, Weight ~39.7 kg.

• Warranty: Industry-standard 10-year warranty, subject to registration and conditions.

Applications
Ideal for home energy storage, solar + storage systems, backup power, and microgrid installations. Compatible with many hybrid inverters, it supports load shifting, self-consumption optimisation, and scalable capacity expansion.

Why Choose This Battery?
Pylontech is a trusted brand in the energy-storage space. The US5000 offers high density, long life, and flexible expansion making it a strong choice for systems requiring reliable, compact battery modules.

Document: Specification Sheet
