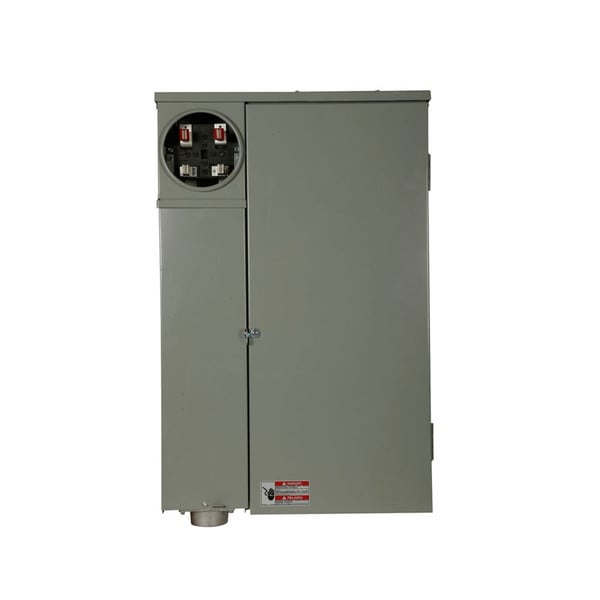

MBE4040B200BSH - Eaton Meter Breaker Euserc Type BR

The Eaton Meter Breaker Euserc Type BR, CSR2200 Main Breaker is a high-quality, reliable solution for providing overcurrent protection and metering in residential or commercial electrical systems. This meter breaker combines both a main breaker and meter socket in a single, integrated unit. Rated for 200 A, this panel is designed to handle 120/240V circuits and features a 40-space, 40-circuit configuration, offering ample room for a variety of electrical needs. With a 22 kAIC (kiloampere interrupting capacity), it provides strong protection against short circuits and overloads. The panel is equipped with aluminum busbars, and is designed for surface mounting with an underground (UG) feed, making it suitable for a wide range of installation types.

Key Features:

• Product Type: Eaton Meter Breaker Euserc Type BR
• Main Breaker: CSR2200 Main Breaker
• Amperage: 200 A
• Voltage Rating: 120/240V
• Breaker Type: Ring-type meter socket with integrated main breaker
• Configuration: 40 spaces, 40 circuits for flexibility in electrical distribution
• Interrupting Capacity: 22 kAIC for enhanced protection
• Mounting Style: Surface mounting for easy installation
• Busbar Material: Aluminum for efficient current conduction
• Feed Type: Underground (UG) feed
• Jaws & Socket: 4-jaws, 1 socket for reliable power connection
• Line Connection: Accommodates up to 6-250 kcmil conductors for flexible wire sizing

This Eaton Meter Breaker Euserc Type BR is an ideal choice for applications where both electrical protection and metering are required in a single unit. It provides a safe, efficient, and customizable solution for managing electrical power in residential or commercial settings. The Haskin-specific panel ensures compatibility with specific installation and usage requirements, making it a versatile and dependable choice for electrical professionals.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - MBE4040B200BSH
