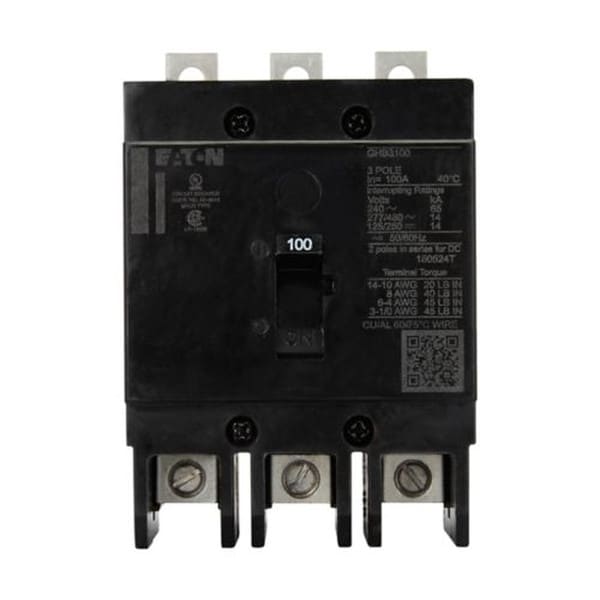

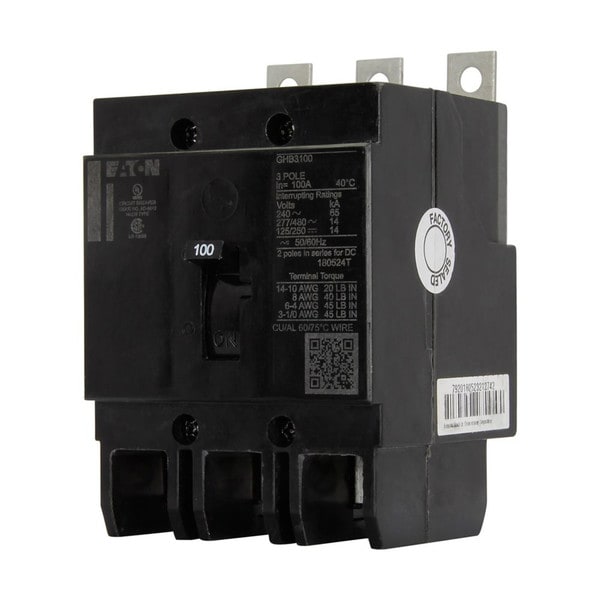

GHB3100 - Molded Case Circuit Breaker

The Molded Case Circuit Breaker, 100 A is engineered to deliver dependable circuit protection in commercial and industrial electrical systems. Featuring a non-interchangeable thermal magnetic tripping mechanism, it offers effective protection against overcurrents for both 277/480 V AC and 125/250 V DC applications. Its durable G-frame design ensures consistent performance and secure installation.

Key Features:

• 100 A current rating for high-capacity circuit protection
• Non-interchangeable thermal magnetic tripping mechanism for reliable safety
• Dimensions: 4 in overall height, 3.8 in overall width
• Suitable for 277/480 V AC and 125/250 V DC applications

This Molded Case Circuit Breaker, 100 A is an ideal choice for maintaining electrical safety and performance in demanding environments.

Documents:

Application notes

Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Brochures

StrandAble terminals product aid
Catalogs

Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Multimedia

Circuit breakers explained

Circuit Breakers Explained
Specifications and datasheets

Eaton Specification Sheet - GHB3100
