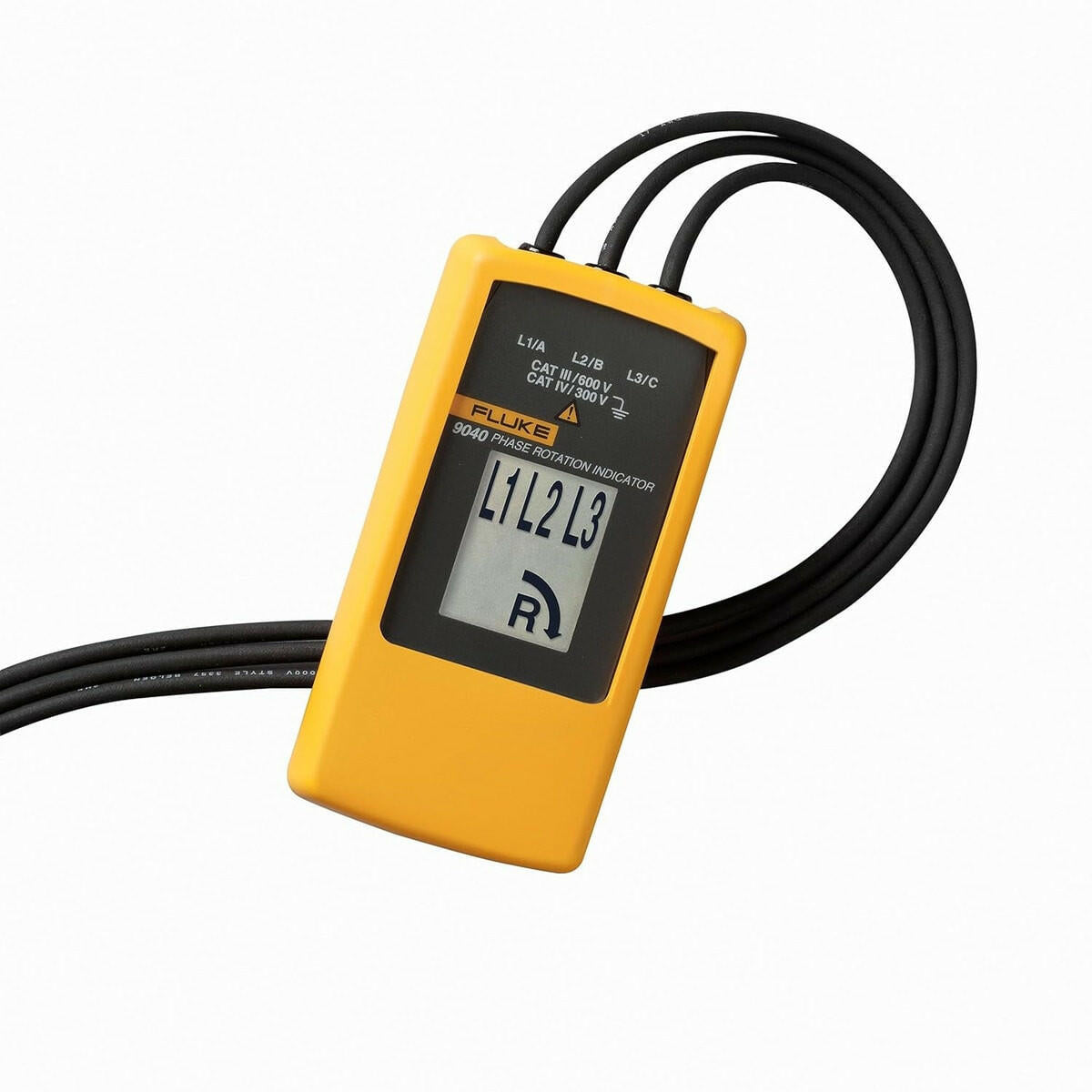

Fluke 40-700 V 15-400 Hz Phase Rotation Indicator

The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.

Features

• 3 Phase indication
• Indication of phase rotation
• Clear LCD display
• No battery required
• Phase rotation indicator with high voltage capability for industrial applications

Specifications

• Length: 124 mm
• Width: 61 mm
• Height: 27 mm
• Voltage Rating: 40-700 V
• Frequency Rating: 15-400 Hz
• Operating Timer: Continuous
• Enclosure Rating/IP Rating: IP40
• Power Source: Unit Under Test
• Temperature Rating: 0-40°C
• Includes: Indicator, 3 Self-Retaining Test Probes, Alligator Clip
• Altitude: ≤2000 m
• Standards: EN 61010, EN 61557-7, CAT III 600 V, CAT IV 300 V
