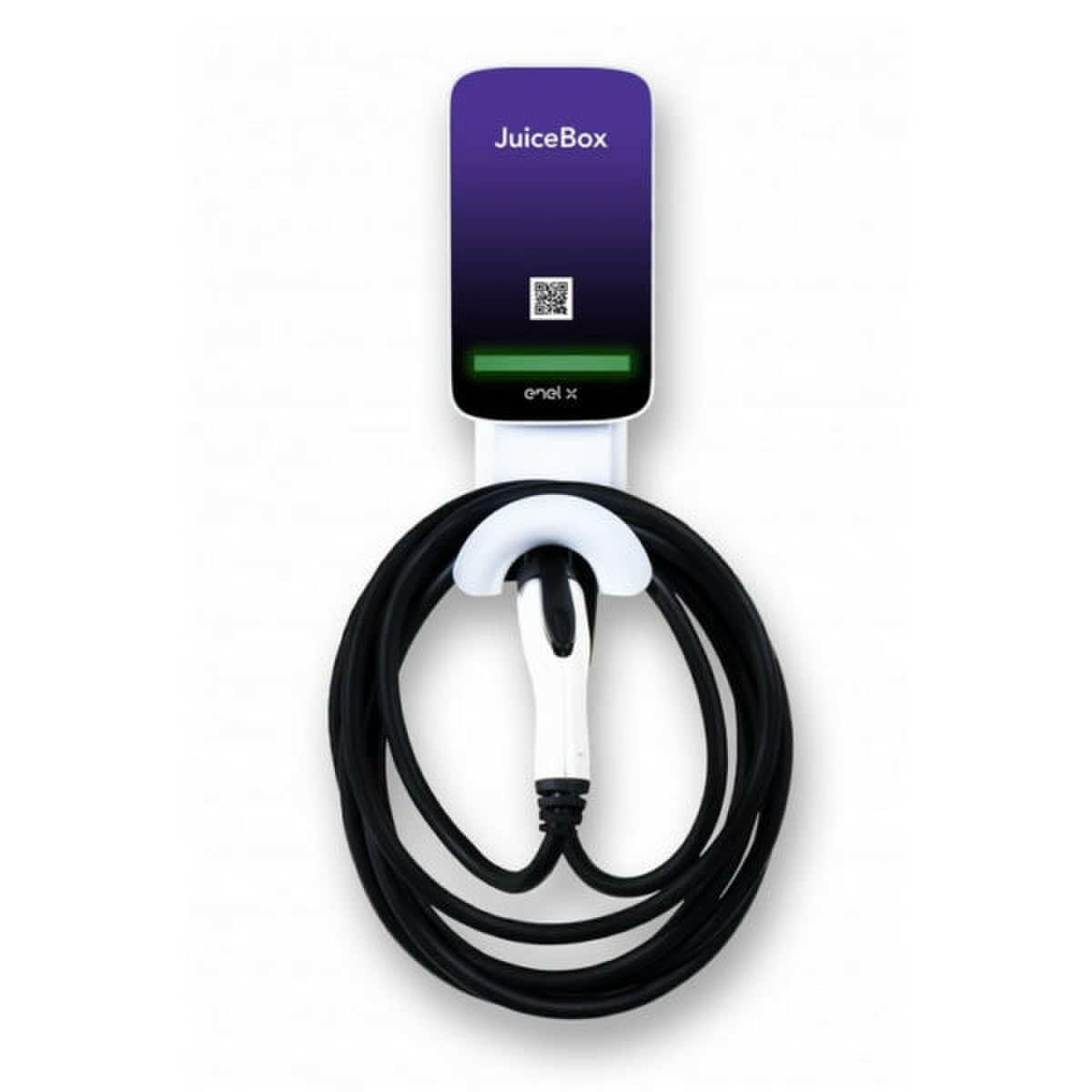

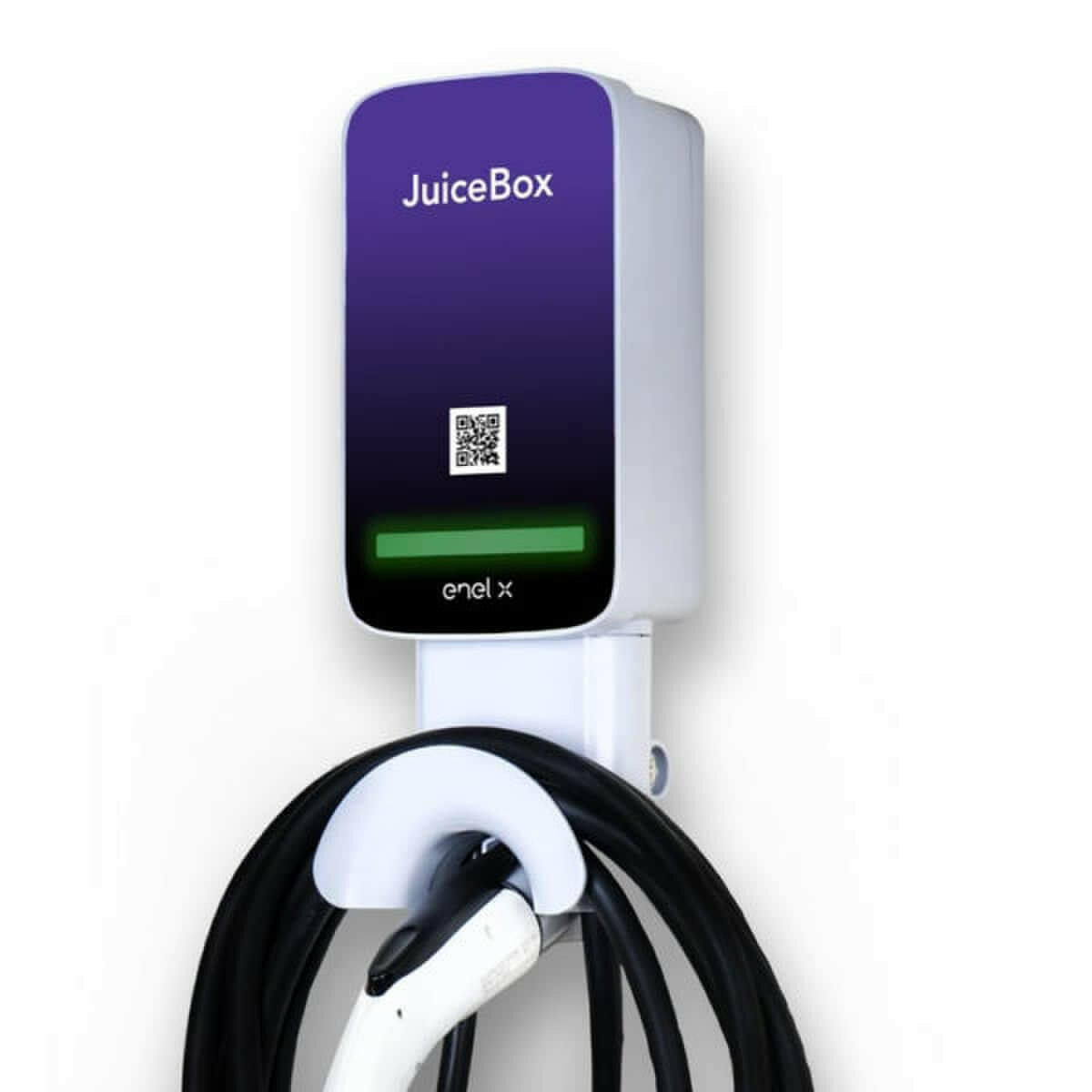

Enel X Juicebox® 40 Series 9.6 kW Hardwired Level 2 EV Charging Station

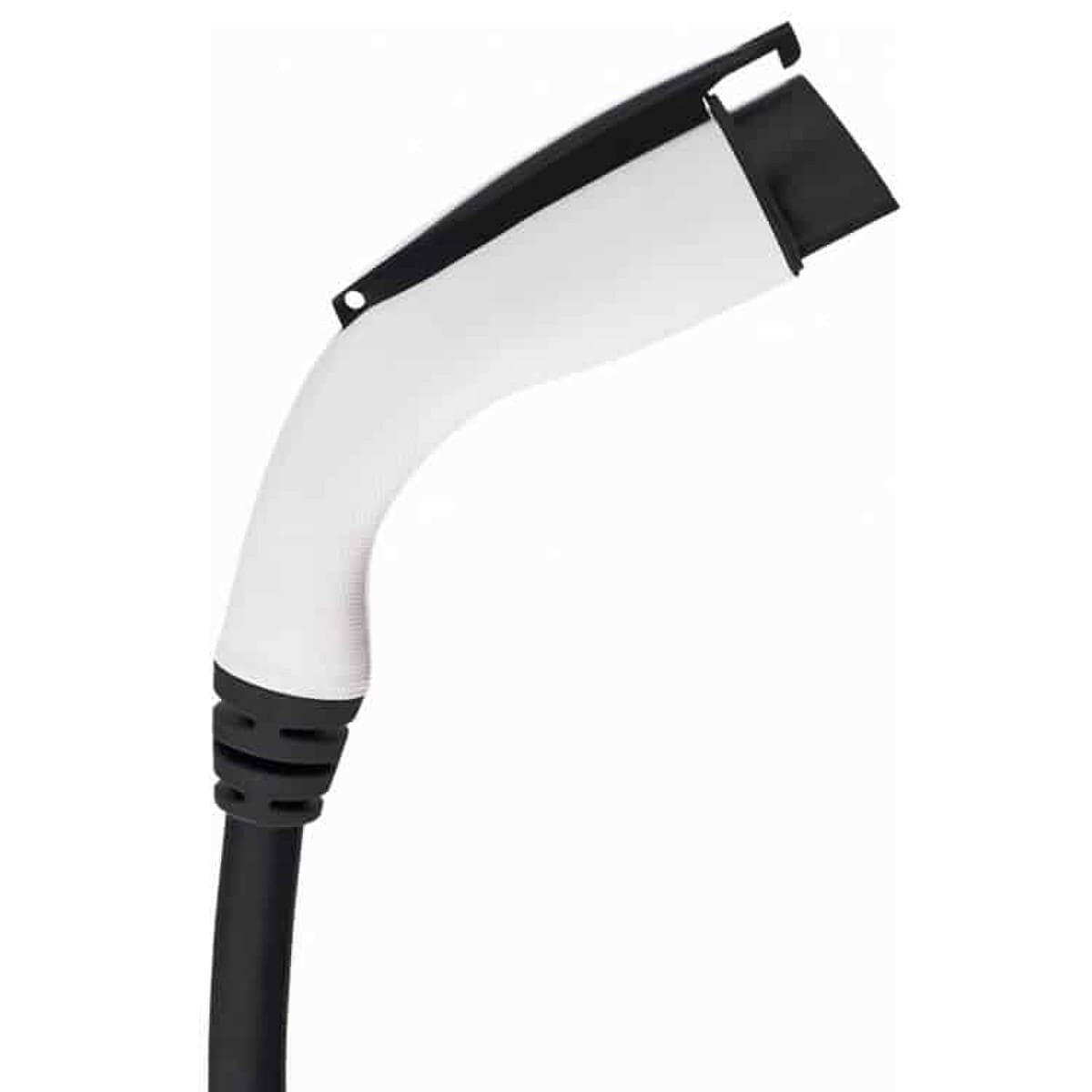

Enel X JuiceBox Pro commercial 40A hardwired Level 2 EV charging station. Install it indoor and outdoor, on a pedestal or a wall. JiuceBox stations come standard with a 25 ft long charging cable and a J1772 port. They are compatible with all electric vehicles circulating the US today (and very likely in the future), including Tesla, by using the port adapter included with all Tesla cars. JuiceBox stations are affordable and easy to install in public and private parking lots. Enel X commercial EV charging stations are ideal for business owners, government offices, or parking lot owners who want to offer reliable and fast charging to their customers, tenants, and employees.

Features

• Integrated cable management and security lock
• Mount on a wall or use the pedestal
• Hardwired for a code-compliant installation
• Resistant polycarbonate casing rated for indoor and outdoor use
• Robust cables and plugs for durability in any climate
• Dynamic LED light to show power, WiFi connectivity, and charging status


Specifications

• Type: Hardwired, Level 2
• Series: Juicebox® 40
• Height: 18.5 in
• Width: 6.8 in
• Depth: 5.8 in
• Material: Polycarbonate
• Input Voltage: 208/240 Vac
• Output Amperage: 40 A
• Power Rating: 9.6 kW
• Network Connectivity: Built-in Wi-Fi (802.11 b/g/n 2.4 GHz)
• Mounting Type: Wall
• Standards:
  • UL & cUL Listed
  • FCC Part 15 Class B
  • NEC 625 compliant
  • ENERGY STAR®
  • OpenADR 2.0b compliant


Documents

• Specification Sheet
