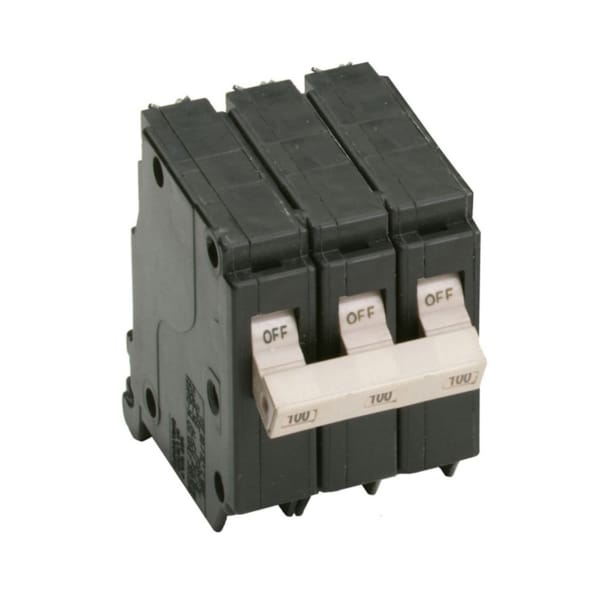

CH3100 - Eaton CH Thermal Magnetic Circuit Breaker

The Eaton CH Thermal Magnetic Circuit Breaker is designed to provide reliable overcurrent protection in both residential and commercial electrical systems. With a 100A rating and a 240V voltage, this three-pole breaker features a 10 kAIC interrupting capacity and is ideal for use in CH type loadcenters. Its common breaker trip mechanism ensures synchronized protection across multiple circuits, while its compatibility with 10-1/0 AWG copper and aluminum conductors makes it versatile for various setups.

Key Features:

• 100A current rating with 10 kAIC interrupting capacity for robust overcurrent protection
• Three-pole design, ideal for 240V applications
• Common breaker trip for simultaneous protection of multiple circuits
• Compatible with 10-1/0 AWG copper and aluminum conductors
• Designed for use with Eaton CH type loadcenters for seamless integration

This Eaton CH thermal magnetic circuit breaker ensures optimal protection and performance in demanding electrical systems, providing safety and reliability across your setup.

Documents:

Catalogs

Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Specifications and datasheets

Eaton Specification Sheet - CH3100
Warranty guides

Eaton type CH circuit breaker limited warranty June 2024
