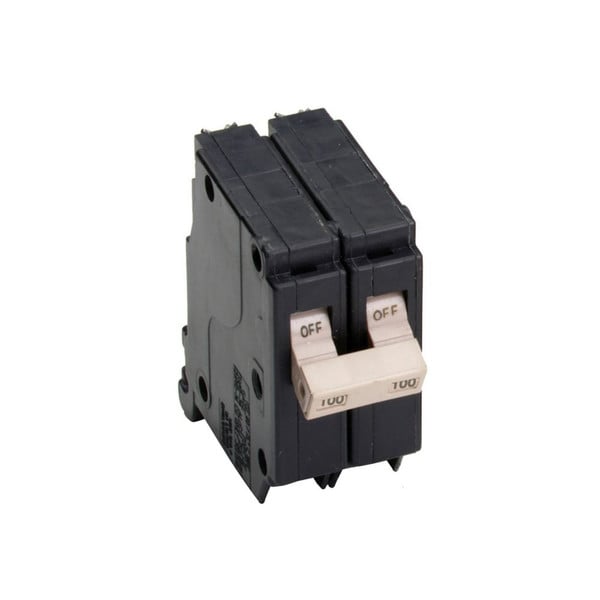

CH2100 - Standard Trip Circuit Breaker

The Standard Trip Circuit Breaker, 100A, is designed to offer reliable protection for residential and light commercial electrical systems. Rated for 100 Amps, it is ideal for circuits requiring higher load capacity.

With its common tripping mechanism, this breaker ensures that all poles trip simultaneously during an overcurrent event, providing enhanced safety. The Plug-On design allows for easy installation into compatible panels, while the 120/240V AC voltage rating makes it versatile for various applications. Its compact form, at 0.75 inches wide and 0.57 lbs, is perfect for space-efficient panel setups.

Key Features:

• 100 Amp rating to handle high-load circuits
• Common tripping mechanism for synchronized safety
• Plug-On installation for easy and secure setup
• 120/240V AC voltage compatibility
• Compact size: 0.75" width, 0.57 lb weight

This circuit breaker delivers dependable performance and is a practical choice for safeguarding electrical systems in a range of residential and light commercial applications.

Documents:

Catalogs

Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Specifications and datasheets

Eaton Specification Sheet - CH2100
Warranty guides

Eaton type CH circuit breaker limited warranty June 2024
