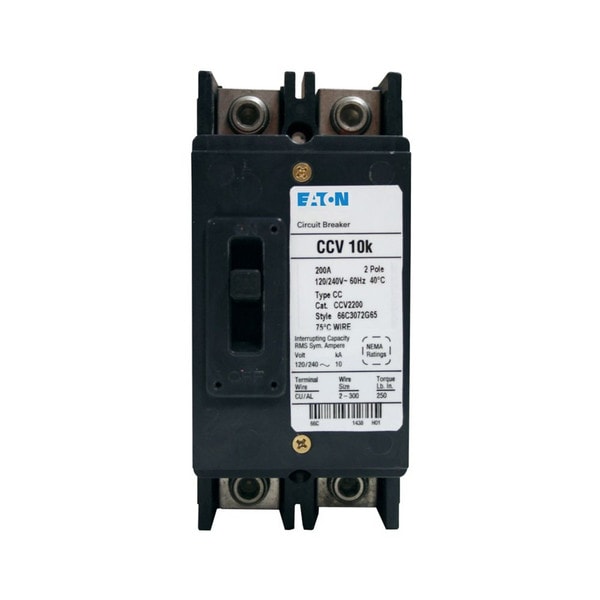

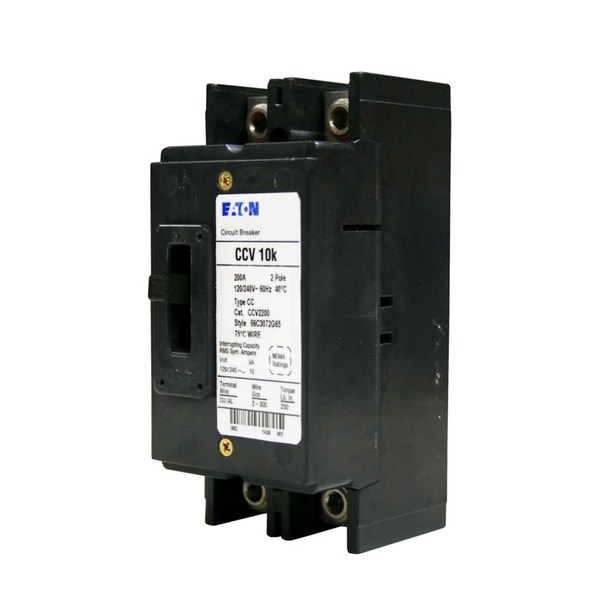

CCV2175 - Eaton Type CCV Tenant Main Circuit Breaker

The Eaton Type CCV Tenant Main Circuit Breaker is engineered for dependable protection in tenant metering and multi-unit applications. With a 175 A rating and 10 kAIC interrupting capacity, it ensures safe operation in demanding electrical systems. This two-pole breaker supports 120/240 V and is compatible with both copper and aluminum wire sizes ranging from 2/0 AWG to 300 Kcmil. Designed for use in Type ECC unit enclosures, it features load side terminals for easy and secure connections.

Key Features:

• 175 A rating with 10 kAIC interrupting capacity
• Two-pole configuration for 120/240 V systems
• Accepts 2/0 AWG to 300 Kcmil Cu/Al wire sizes
• Designed for Type ECC unit enclosures
• Load side terminals for convenient installation

This Eaton tenant main circuit breaker delivers reliable protection and flexibility for residential or commercial metering setups.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - CCV2175
