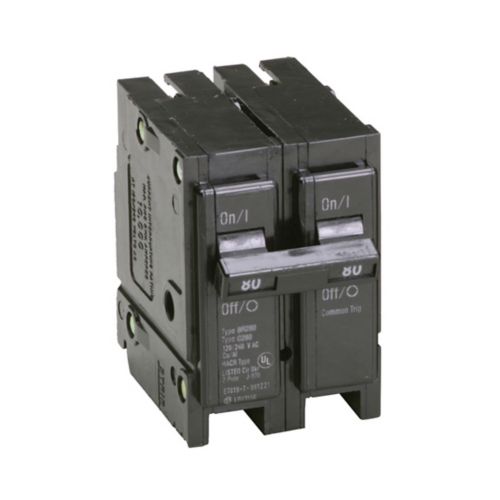

BR280 - Standard Trip Circuit Breaker

The Standard Trip Circuit Breaker delivers reliable overcurrent protection for residential and light commercial electrical systems. Designed with an 80 Amp rating, this breaker supports higher power applications while maintaining safe operation through its common tripping mechanism.

Equipped with line and load lug terminals, it offers flexibility for secure wiring connections. The Plug-On design ensures quick installation into standard panels, while its 120/240V AC compatibility makes it suitable for a variety of dual-voltage systems. With dimensions of 3 inches in height and length, and 2 inches in width, it’s compact yet powerful.

Key Features:

• 80 Amp rating for higher load capacity
• Common tripping mechanism for added safety
• Plug-On terminals for easy panel installation
• Line and load lug terminals for versatile wiring
• 120/240V AC operation
• Dimensions: 3" H × 3" L × 2" W

Ideal for panel upgrades and robust residential circuits, this breaker is engineered for durability and performance.

Documents:

Catalogs

Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets

Eaton Specification Sheet - BR280

Warranty guides

Eaton type BR circuit breaker limited warranty June 2024
