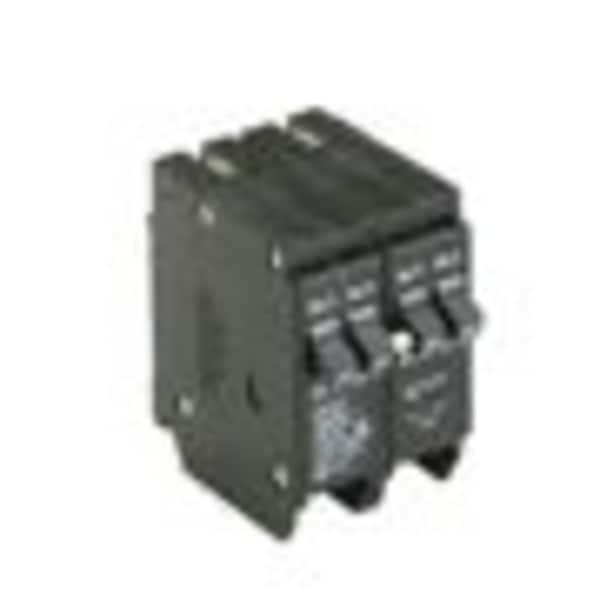

BQ230240 - Eaton BR Thermal Magnetic Circuit Breaker

The Eaton BR Thermal Magnetic Circuit Breaker is designed for enhanced protection and reliability in residential and commercial electrical systems. This Type BQ 1-Inch CTL Plug-On Circuit Breaker features a rejection tab for secure installation and is designed for use in 120/240V AC systems. The breaker includes two poles rated at 30 A and 40 A, offering optimal protection against overcurrents and short circuits.

Key Features:

• Includes two poles of 30 A and 40 A for versatile protection
• 10 Kaic rating for high withstand capability
• Four-pole design for enhanced circuit protection
• Independent tripping mechanism for secure operation
• 14-4 AWG Cu/Al conductor compatibility
• Designed for 120/240V AC systems
• Rejection tab feature ensures secure installation

The Eaton BR Thermal Magnetic Circuit Breaker is ideal for safely managing electrical loads and protecting circuits in a variety of applications.

Documents:

Catalogs

Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1
Specifications and datasheets

Eaton Specification Sheet - BQ230240
Warranty guides

Eaton type BR circuit breaker limited warranty June 2024
