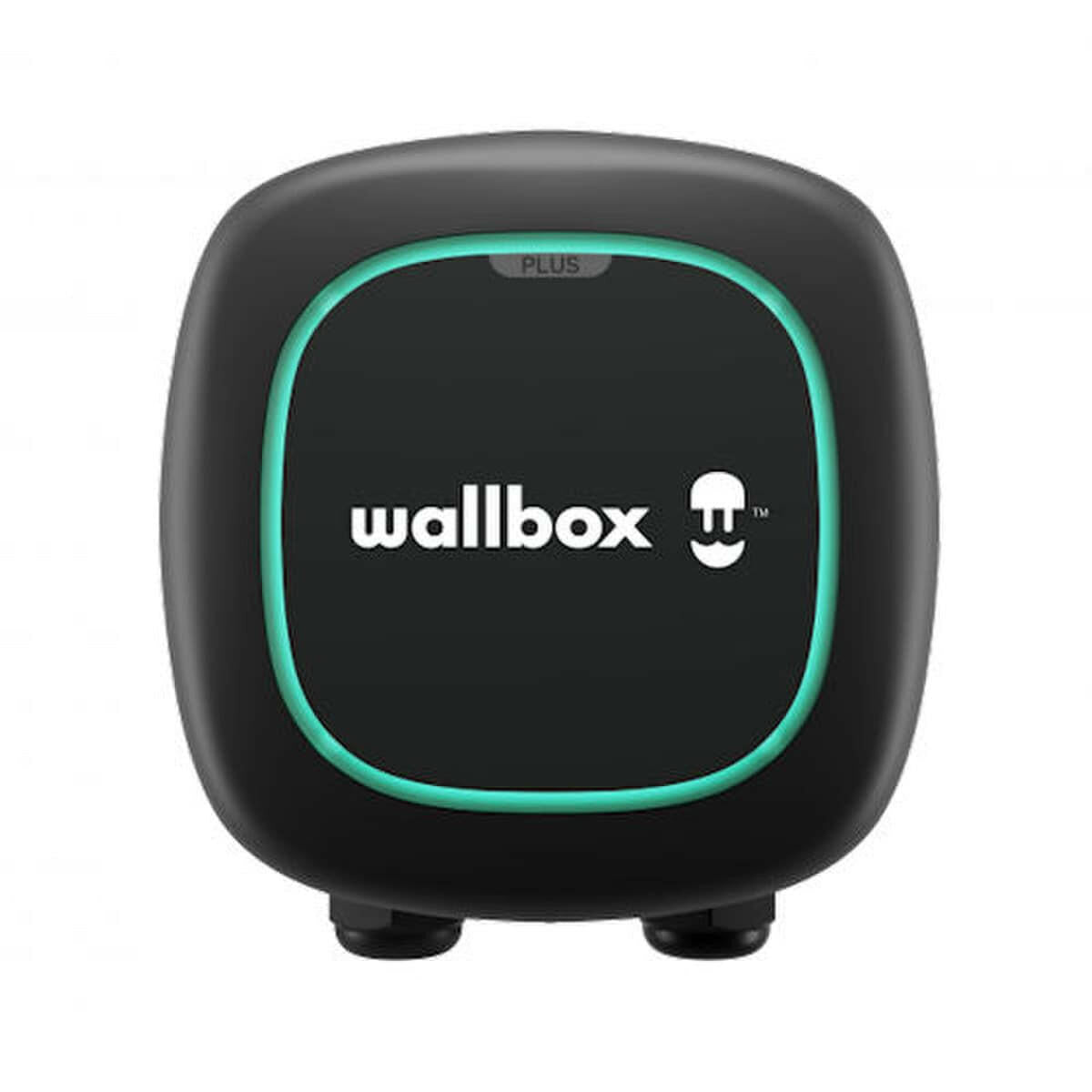

Wallbox PUP1-U-1-6-C-002 Pulsar Plus 48A, 240V (Level 2), 11.5kW, 25

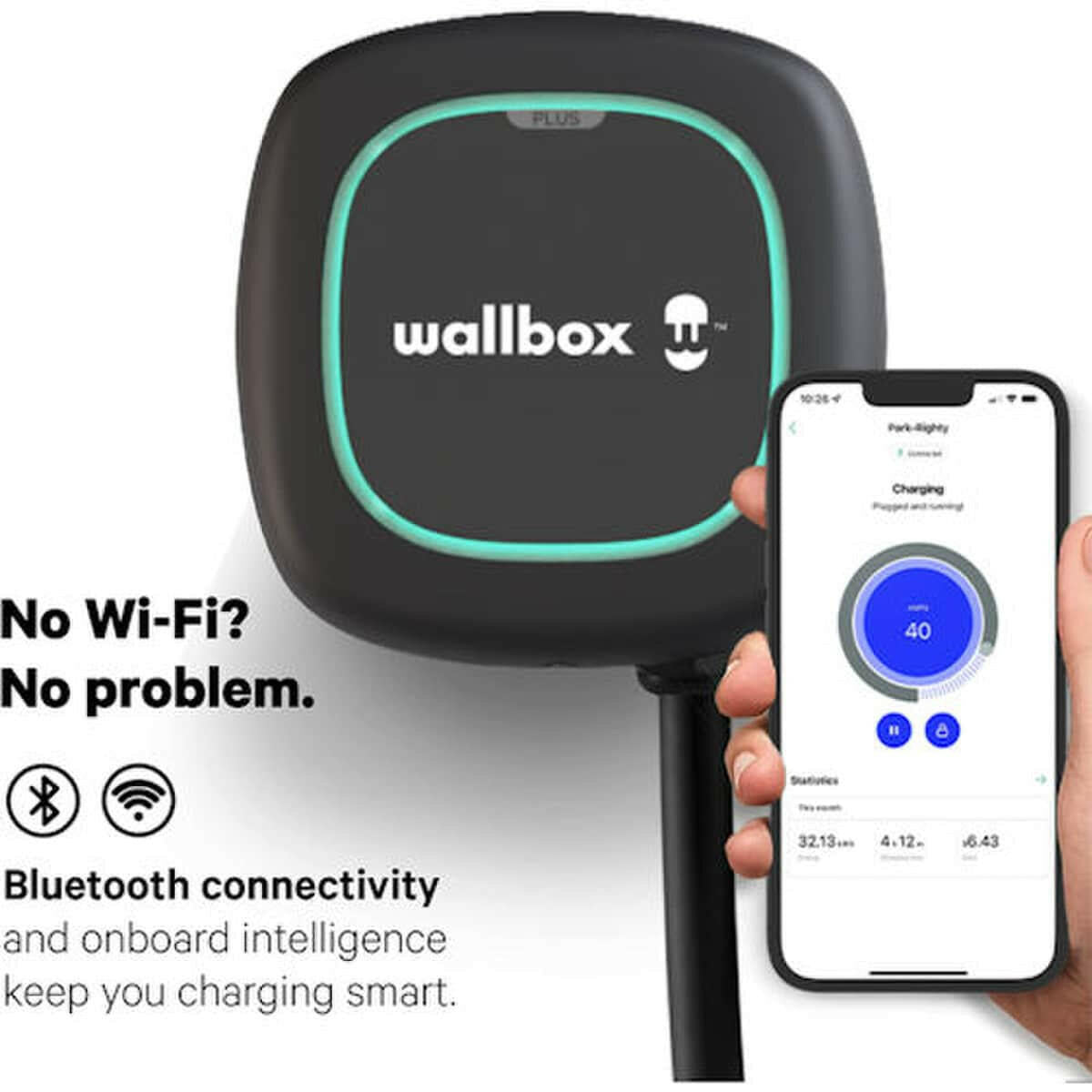

Pulsar Plus offers the best of both small size and powerful performance for faster electric vehicle charging at home. Designed for easy installation, Pulsar Plus can charge any electric car* on the market today. Home charging is simple and efficient with the integrated myWallbox app, which lets you control your charger from your smart devices via WiFi or Bluetooth. Onboard intelligence means your smart functions (including scheduled charging and locking/unlocking) are managed in the charger, not the cloud, letting you access and control your charger even when you can't connect to the Internet. Pulsar Plus also works with Alexa and Google Home voice commands, making charging a seamless addition to your smart home system. NEMA Type 4 rated for watertightness and dust resistance, Pulsar Plus is suitable for indoor and outdoor installation.

Features

• Adjustable power up to 48A (9.6kW)
• Wi-Fi and Bluetooth connectivity
• Works with all Evs
• Power sharing-enabled
• Voice control-enabled

Specifications

• Type: Level 2
• Color: Matte Black
• Cable Length: 25 ft

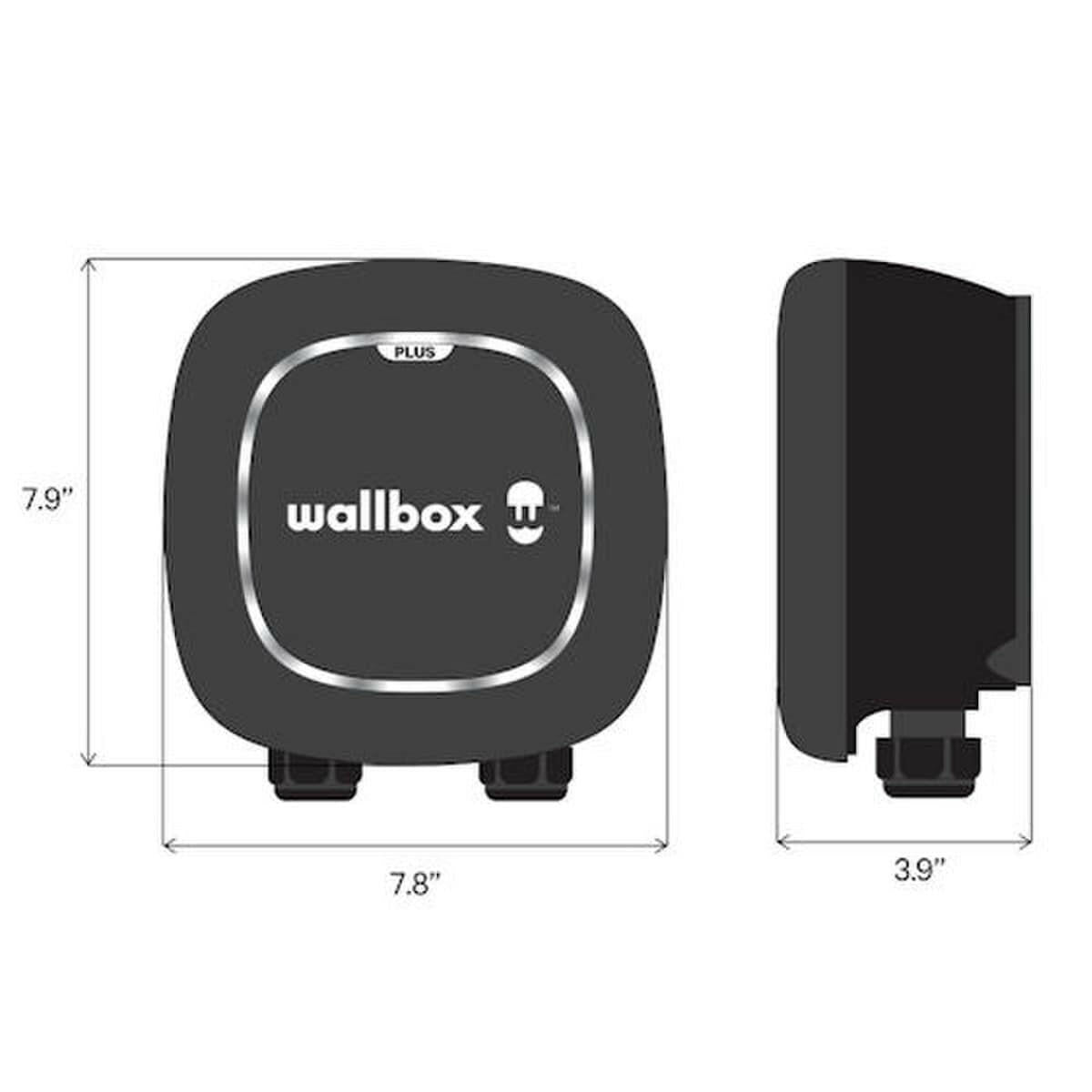

• Dimensions: 7.8 in x 7.9 in x 3.9 in
• Operating Temperature: -22 to 104°F
• Charging Power: 11.5 kW
• Amperage Rating: 48 A
• Voltage Rating: 240/208 V (Level 2)
• Connection Type: SAE J1772 Type 1
• Connectivity: Wi-Fi, Bluetooth
• Voice Control: Amazon Alexa & Google Assistant
• Enclosure Rating/IP Rating: NEMA 4 Per UL 50E
• Standards & Certifications:
  • UL 2594
  • UL 2231
  • FCC Part 15 Class B
  • CAN ICES-003B/NMB-003B
  • Energy Star Certified


Documents

• Specification Sheet
