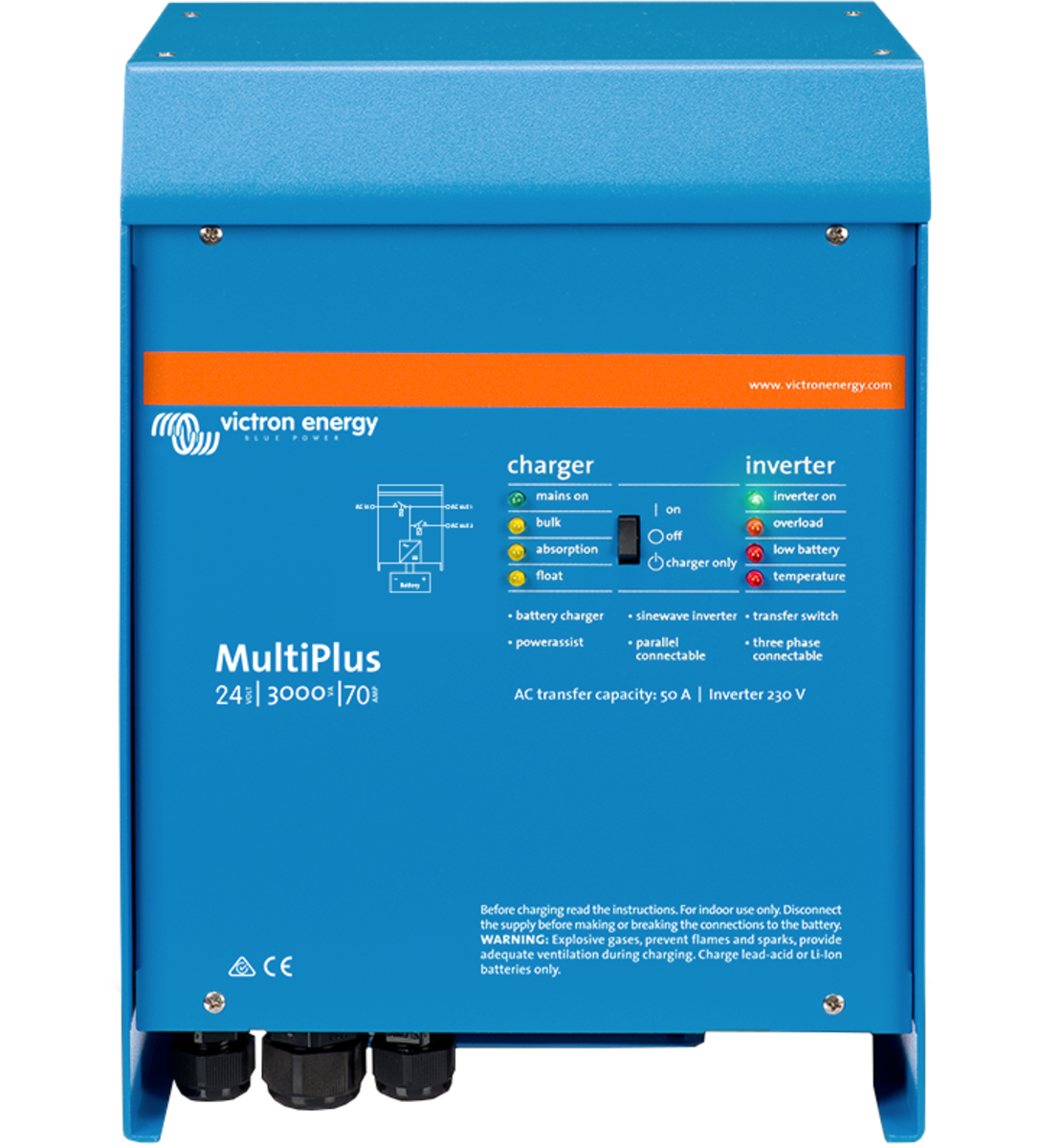

Victron Energy 3000 VA 258 mm Inverter/Charger

The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Next to these primary functions, the MultiPlus has several advanced features, as outlined below.

Features

• Multifunctional, with intelligent power management
• Two AC Outputs
• Virtually unlimited power thanks to parallel operation
• Three phase capability
• Split phase options


Specifications

• Length: 362 mm
• Width: 258 mm
• Depth: 218 mm
• Input Voltage: 19-33 VDC
• Output Voltage: 120 VAC
• Power Rating: 3000 VA
• Input Current: 4 A
• Amperage Rating: 120/70/35 A
• Efficiency: 93/94%
• Frequency Rating: 60 Hz
• Cooling Type: Fan Assisted
• Power Factor: 1
• Connection Type: Screw Terminal
• Temperature Rating: -40 to 65°F


Documents

• Specification Sheet
