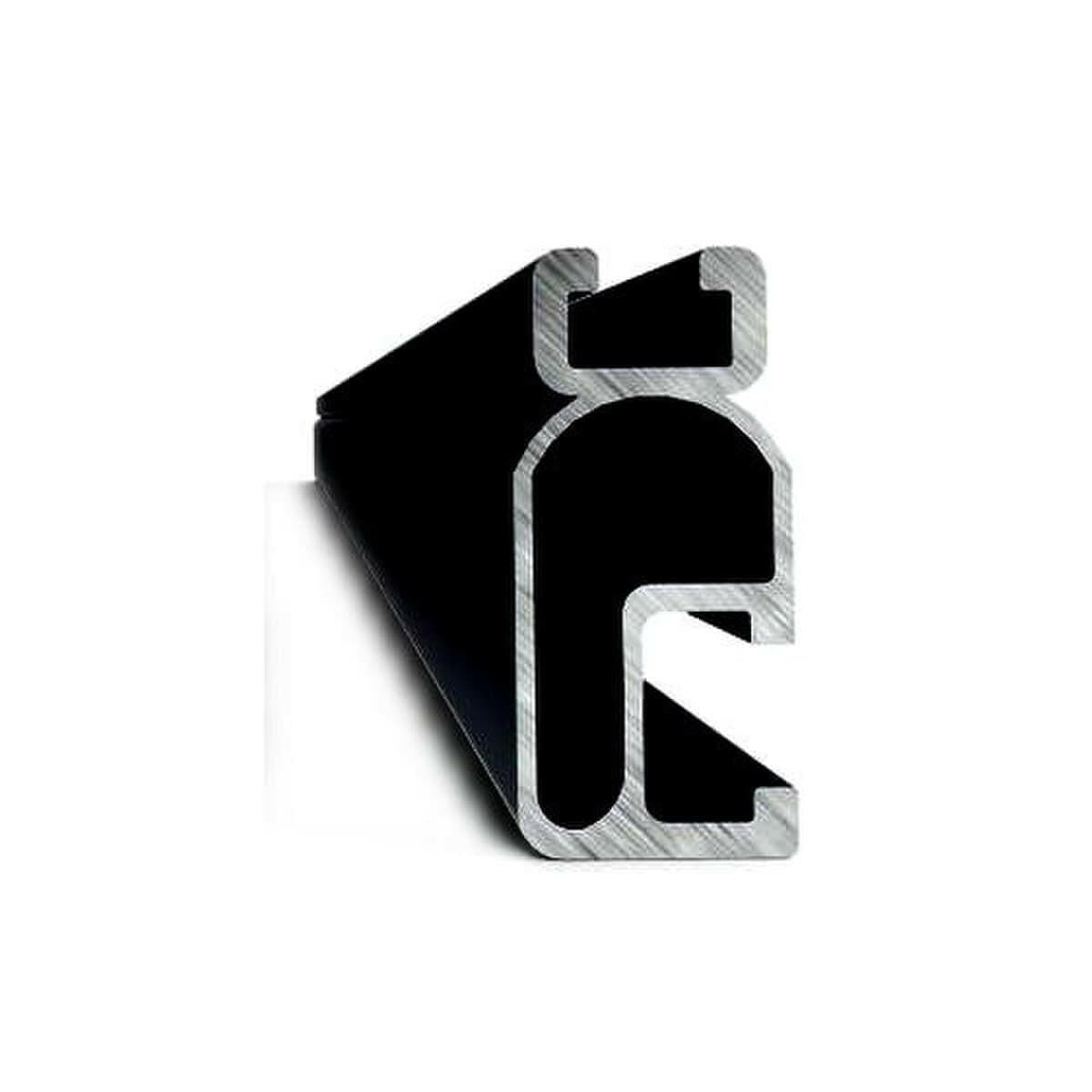

Unirac SolarMount 315240D 240" Light BLK Rail

The universal SolarMount rail system solutions can be assembled into a wide variety of PV mounting structures to accommodate any job site. Standard rails give you ultimate flexibility, including bottom mounting and tilt-up options.Unirac provides a technical support system complete with installation and code compliance documentation, an on-line estimator and design assistance to help you solve the toughest challenges.

Features

• Maximum Flexibility - Flush, high-profile or low-profile configurations. Roof or ground mount. Pitched or flat roof
• Ease of installation - Installer-friendly components. Minimized penetration with longer attachment spans than competitive products. Designed with customer input. Grounding and wire management options
• Certifications and Warranty - The SolarMount system is PE certified. 6105-T5 aluminum extrusion. SolarMount is covered by a 10-year limited product warranty and a 5-year limited finish warranty


Specifications

• Length: 240 in
• Finish: Dark Anodized
• Material: 6105-T5 Aluminum
• Standards: UL Listed
• Weight: 9.84 lb


Documents

• Technical Drawing
