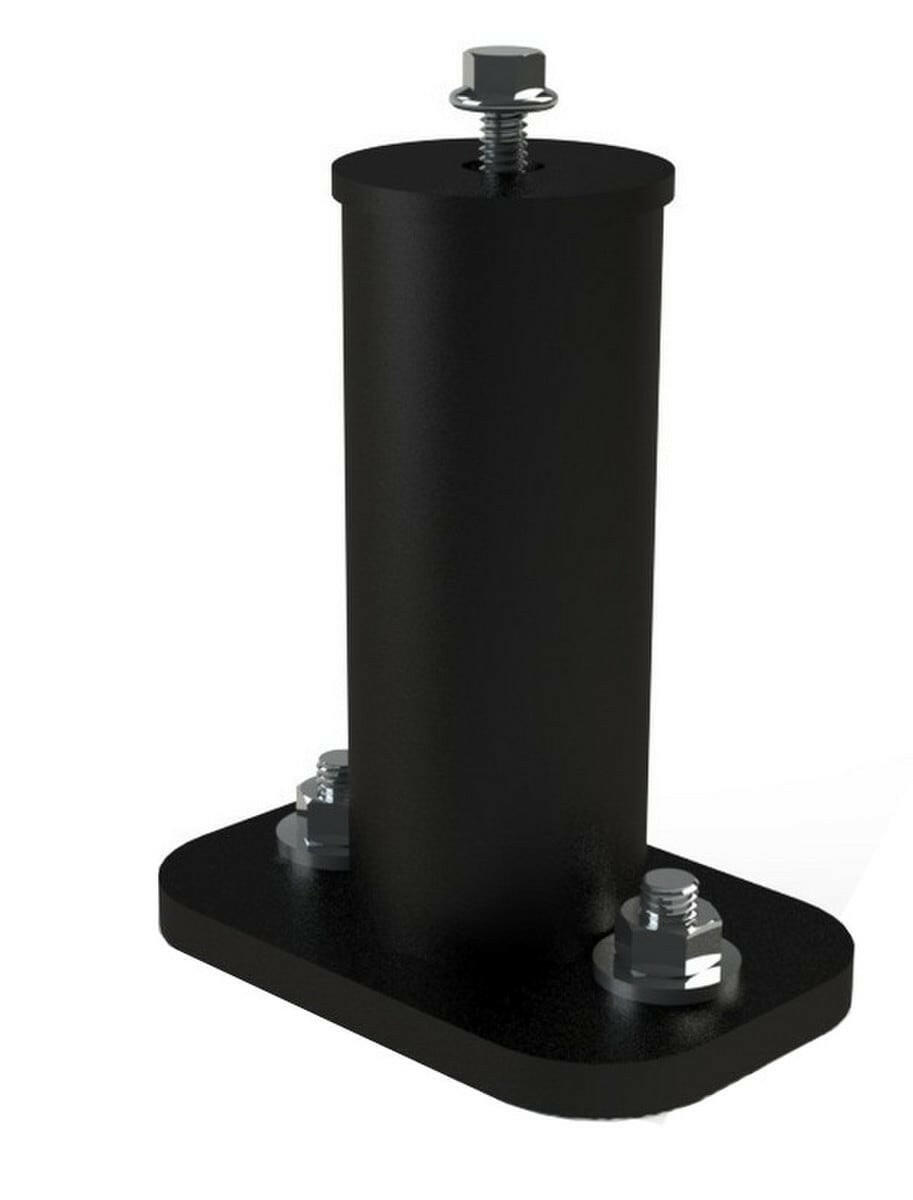

Unirac Aluminum Flat-Top Standoff

Use standoffs whenever flashed installations are required, on tile roofs, for example. Two-piece aluminum standoffs allow precise placement of a flashing over a secured base prior to the installation of the standoff itself. All standoff types come in four standard heights: 3, 4, 6, and 7 inches. Appropriate flashings are available.

Features

• Highlights - Clear anodized aluminum finish, use one per L-foot
  Two-piece: Aluminum extrusion
  25 Years Limited Warranty
  Includes 3/8 x 3/4 in serrated flange bolt with EPDM washer for attaching L-foot, and two 5/16 in lag bolts

Specifications

• Size: 1-5/8 in Shaft Diameter x 4 in Height
• Material: Aluminum
• Finish: Dark Bronze Anodized (Black)
• Includes: S/S Hardware, Flange Bolt with Washer, (2) Lag Bolts
• Suitable For Use With: SunFrame, SolarMount Standard, or SolarMount HD Rails
• Warranty: 25 Years Limite


Documents

• Instruction/Installation Manual
• Catalog
