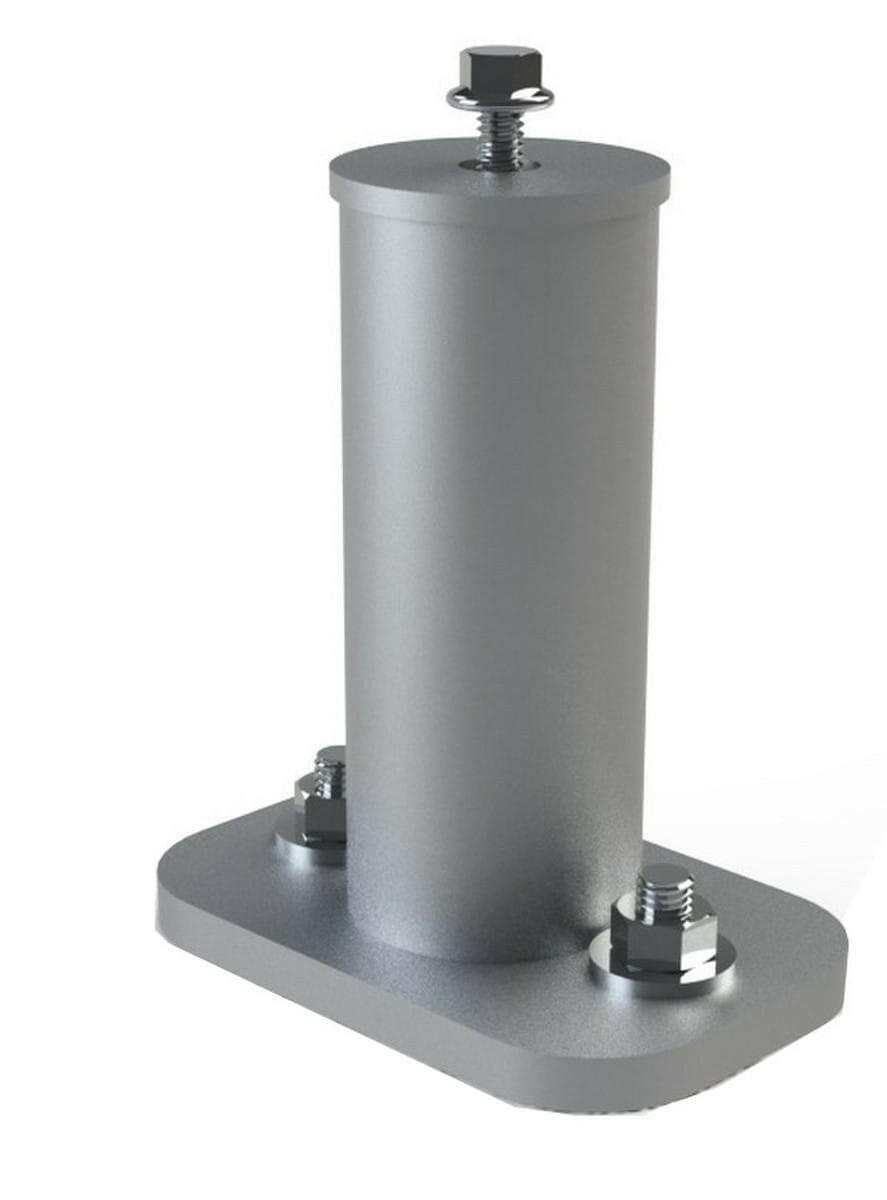

Unirac 7 in 2 Piece Flat-Top Stand-Off

Use standoffs whenever flashed installations are required, on tile roofs, for example. Two-piece aluminum standoffs allow precise placement of a flashing over a secured base prior to the installation of the standoff itself. All standoff types come in four standard heights: 3, 4, 6, and 7 in. Appropriate flashings are available. Use with SunFrame, SolarMount standard, or SolarMount HD rails. Secure to rafter with 2 lag screws. Secure L-foot or installer-supplied strut directly to standoff with standoff hardware. Especially convenient when installing over a tile roof because flashing can be precisely fitted over secured base prior to installation of shaft.

Features

• Highlights - clear anodized aluminum finish
• Use one per L-foot
• Two-piece - aluminum extrusion
• Comes in four standard heights - 3, 4, 6 and 7 in
• 3/8 x 3/4 in serrated flange bolt with EPDM washer for attaching L-foot and two 5/16 in lag bolts


Specifications

• Type: 2 Piece
• Size: 7 in
• Shaft Diameter: 1-5/8 in
• Material: Aluminum
• Finish: Mill
• Suitable For Use With: Roof Attachment
• Includes: 3/8 x 3/4 in Serrated Flange Bolt, EPDM Washer, (2) 5/16 in Lag Bolts
• Standards: UL Listed
• Warranty: 25 Years Limited


Documents

• Catalog
