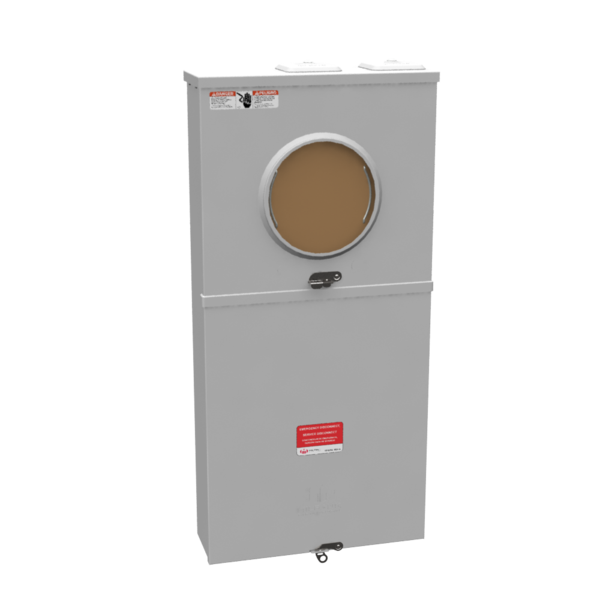

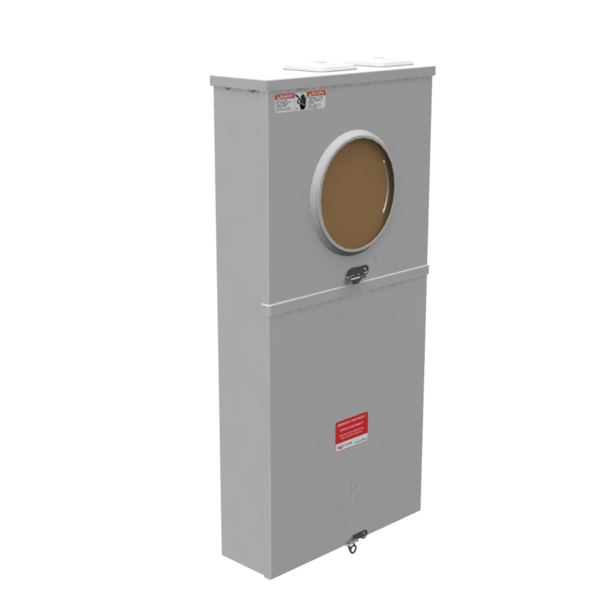

U5168-XTL-200 - Ringless Meter Socket

The Ringless Meter Socket is designed for high-capacity residential and commercial applications, offering a 200A rating for reliable power distribution. It features 8 circuits with twin small closing plates hub, ensuring a secure and efficient installation. The socket supports wire sizes from 6 AWG to 350 Kcmil, providing flexibility for various wiring configurations. With multiple knockout sizes (3 x 2 In, 1 x 3 In, 1 x 2-1/2 In, 4 x 1 In, 3 x 3/4 In), this meter socket accommodates different conduit needs. Its rugged construction ensures long-lasting durability, and it’s designed for surface mounting.

Key Features:

• Amperage Rating: 200A
• Circuit Capacity: 8 Circuits
• Knockout Sizes: (3) 2 In, (1) 3 In, (1) 2-1/2 In, (4) 1 In, (3) 3/4 In
• Wire Size Range: 6 AWG to 350 Kcmil
• Dimensions: 4.5 (L) x 14.125 (W) x 30 (H) In
• Mounting Type: Surface
• Voltage Rating: >240 V

This ringless meter socket is an essential component for residential and commercial electrical systems, providing secure and efficient power distribution with a wide range of wiring options.
