Description

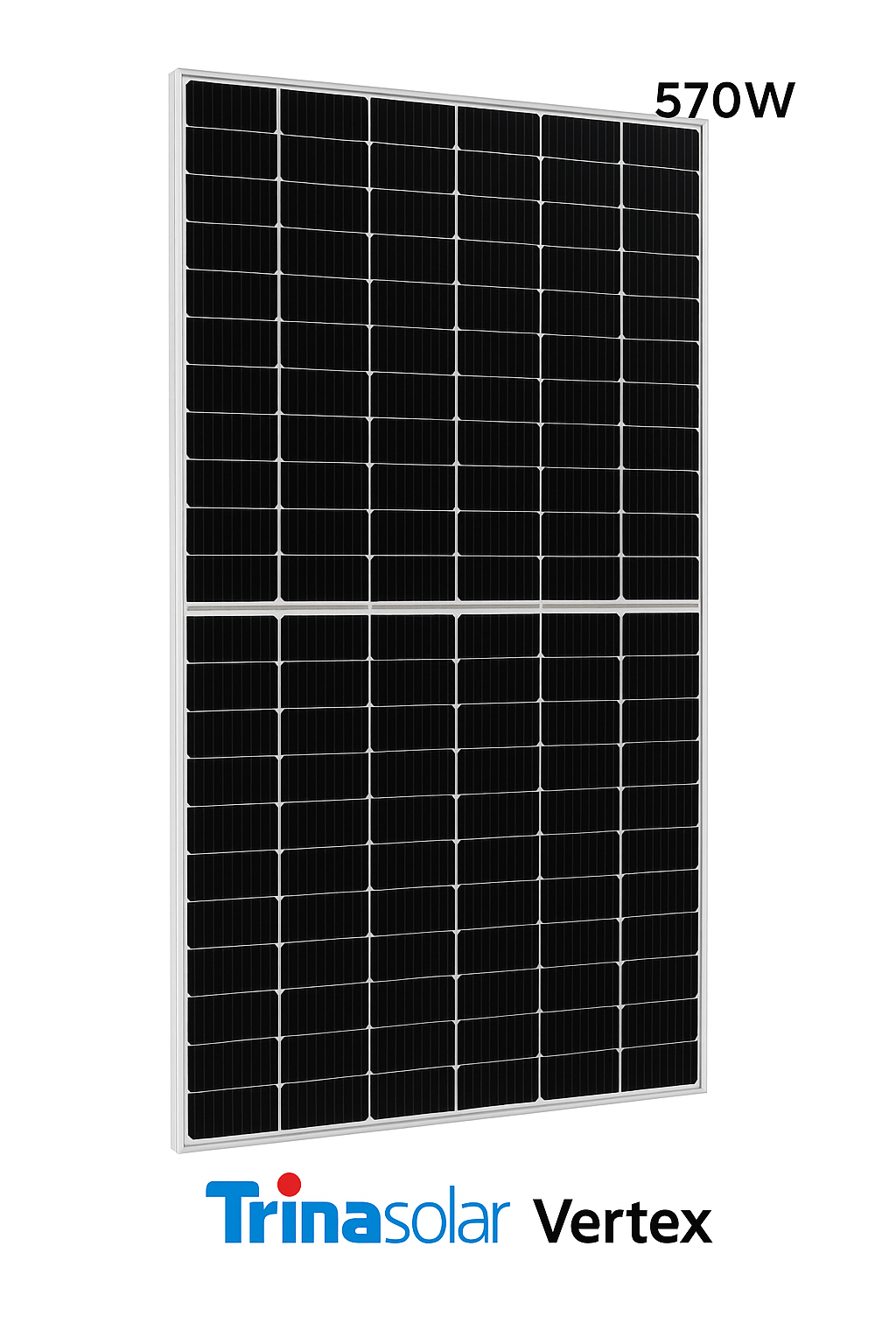

The Trina Solar Vertex 570W bifacial module is part of Trina’s ultra-high power Vertex series, featuring cutting-edge n-type monocrystalline technology, dual-glass construction, and bifacial output capabilities. This panel is engineered for maximum yield, system flexibility, and low LCOE in large-scale solar projects.

Technical Specifications

Feature Details
Power Output (STC) 570 W
Bifacial Gain Up to 25% rear-side gain under ideal conditions
Module Efficiency ~21.1% – 21.3%
Cell Type Monocrystalline N-type, 132 half-cut cells
Cell Technology High-Density Interconnect (HDI), Multi-Busbar (MBB), non-destructive cutting
Glass Type 2 mm + 2 mm dual-tempered glass
Frame 30 mm anodized aluminum alloy
Dimensions (L×W×H) 2384 × 1134 × 30 mm
Weight ~32.5–33.7 kg
Junction Box IP68 rated, 3 diodes, MC4-EVO2 compatible
Cables 4.0 mm², cable length 300–400 mm depending on configuration
Maximum System Voltage 1500 V (IEC/UL)
Maximum Fuse Rating 30 A
Connector MC4-EVO2 compatible
Operating Temp. Range −40°C to +85°C


Performance & Mechanical Endurance

  • Mechanical Load Ratings:

    • Front (snow): 5400 Pa

    • Rear (wind): 2400 Pa

  • Enhanced Durability:

    • Sand, salt mist, ammonia corrosion tested

    • Certified under IEC 61701, IEC 62716, IEC 61215, and IEC 61730

Warranty

  • Product Warranty: 15 years standard (extendable in some markets)

  • Performance Warranty:

    • Linear degradation: max 1% in Year 1, then max 0.4% annually

    • Guaranteed power output of ≥84.95% after 25 years

Use Case & Compatibility

  • Ideal for large-scale ground-mount systems, solar trackers, and commercial rooftops

  • Compatible with string inverters, central inverters, and advanced solar optimizers

  • Works in hot climates, coastal zones, and desert environments

Description: Specification Sheet
