Tamarack Solar 90057 Ground Mount 3 Module First Column Kit for use with 3.1inch Rail

Features

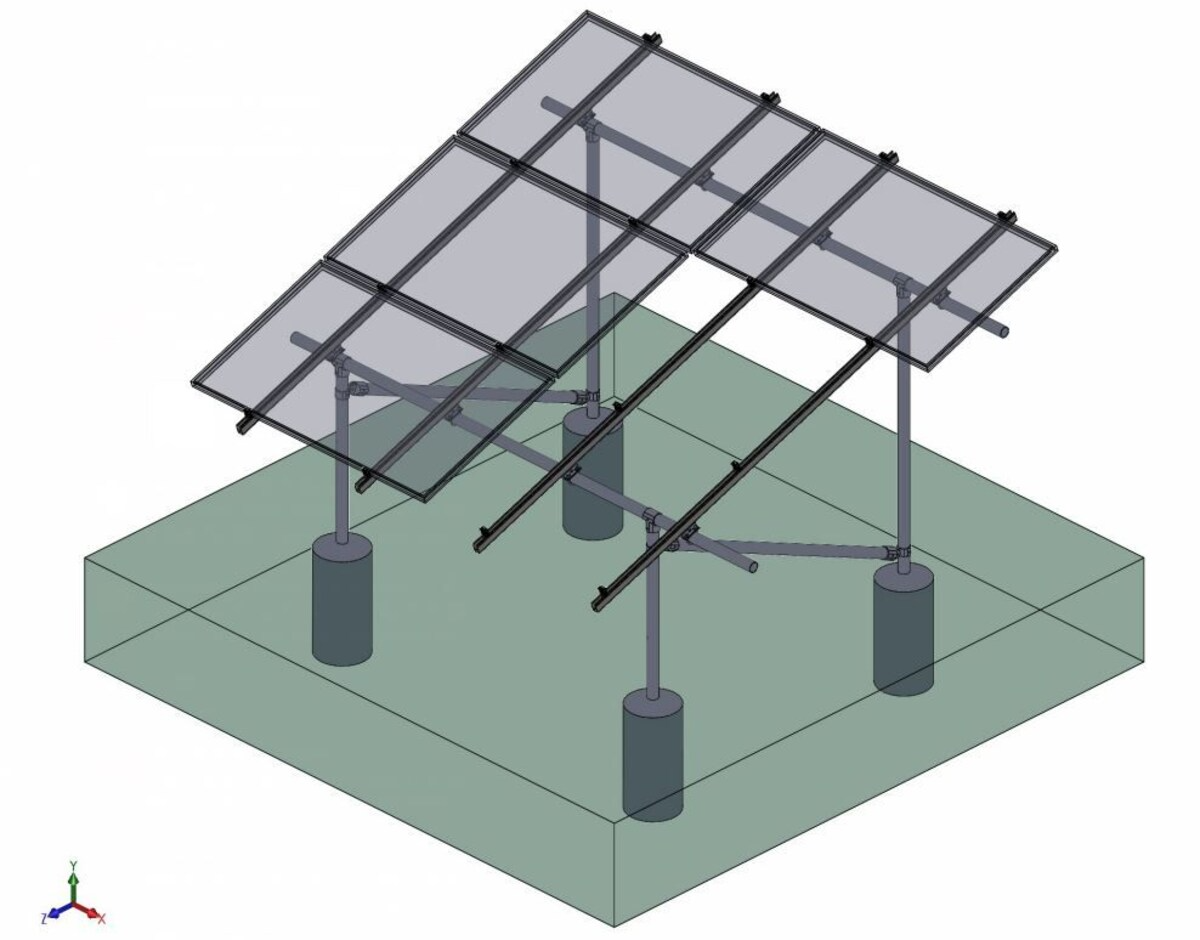

• Build a simple, low-cost structure with columns of 3 or 4 modules in landscape orientation
• Combine our 3.1 rails and UL 2703 module mounting components with locally sourced 2-inch schedule-40 steel pipe
• As many columns as necessary can be installed
• Simplify design by using our Ground Mount Kits - This system comes with all parts needed except for the pipe and concrete
• Ground Mount Kits and smaller systems can ship economically via UPS
• Concrete and 2-in schedule 40 steel pipe not included - purchase locally
• Simple to design - Arrays can be in columns of 3 or 4 module high and any width required
• Easy to install - No welding or drilling and two wrench sizes fit all fasteners
• UL 2703 Listed - All components meet the UL 2703 standards for bonding and grounding
• PE Certified - Pre-stamped engineering letters available for most states
• Easy to Configure - Unlimited system size with tilt angles from 0 to 45 degrees
• Visually Appealing - Simple to adjust for perfect alignment, even if the surface is irregular
• Easy Wire Management - PV cables and wiring for module-level electronics fits inside rails to avoid time-consuming wire management

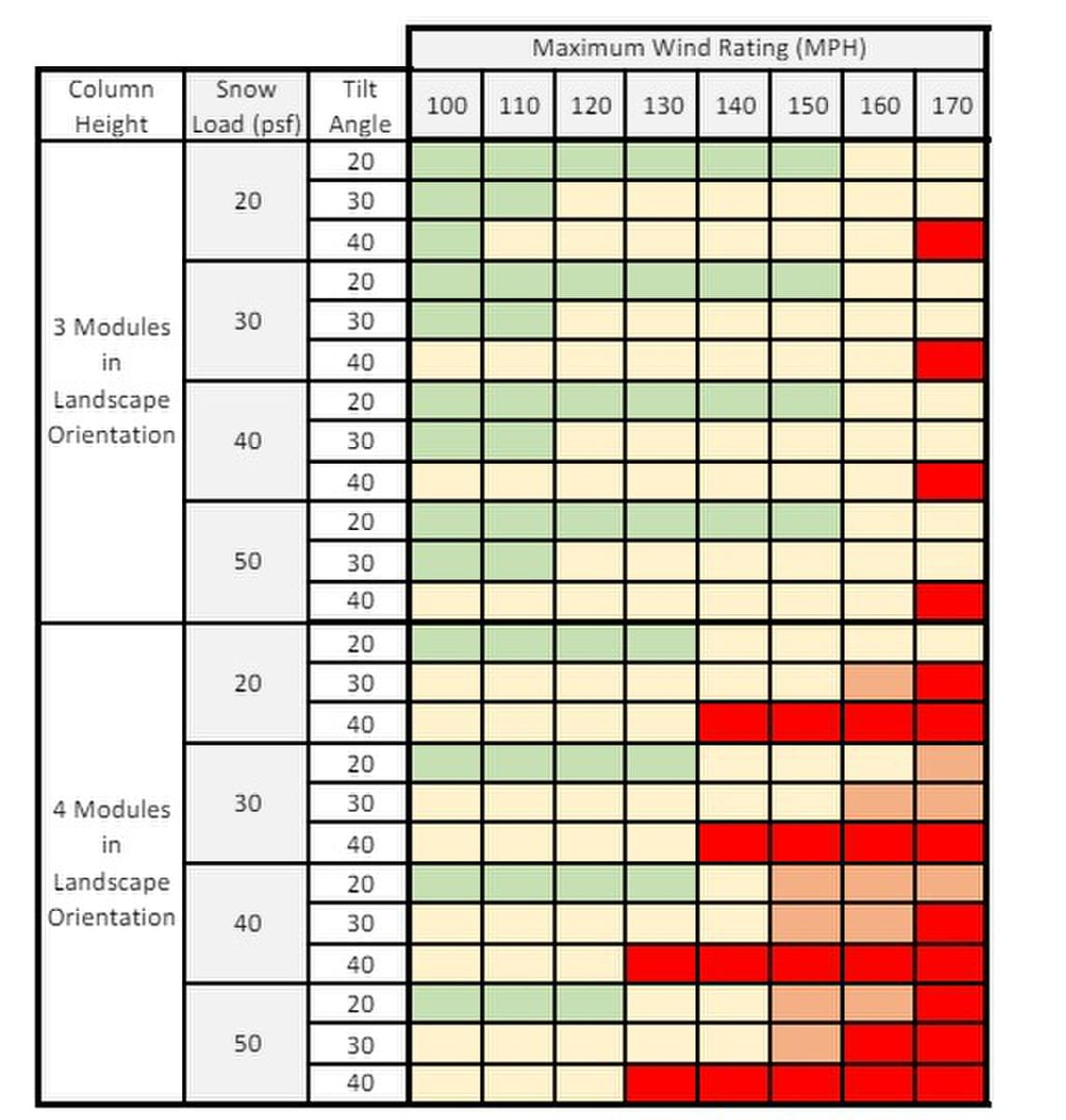

• Extremely Robust - For use in locations with wind speeds up to 170 MPH and ground snow loads of up to 70 PSF

Specifications

• Column Height: 3 Module in Landscape Orientation
• Module Snow Load: 20-50 psf
• Module Tilt Angle: 20-40 deg
• Suitable For Use With: 3.1 in Rail
• Includes:
  • (2) 85 in Rails
  • (2) 42.5 in Rails
  • (4) 2 in Tee-Fittings
  • (2) Splices
  • (4) Pipe Mounts
  • (8) 5050 Clamps
  • (4) End Caps
  • (8) Module Lead Clips
  • (1) Ground Clamp
• Warranty: 25 Years

Documents

• Specification Sheet
• Instruction/Installation Manual
