Tamarack Solar 70-0300-PGM-B Additional Pole Cap for High Wind Locations

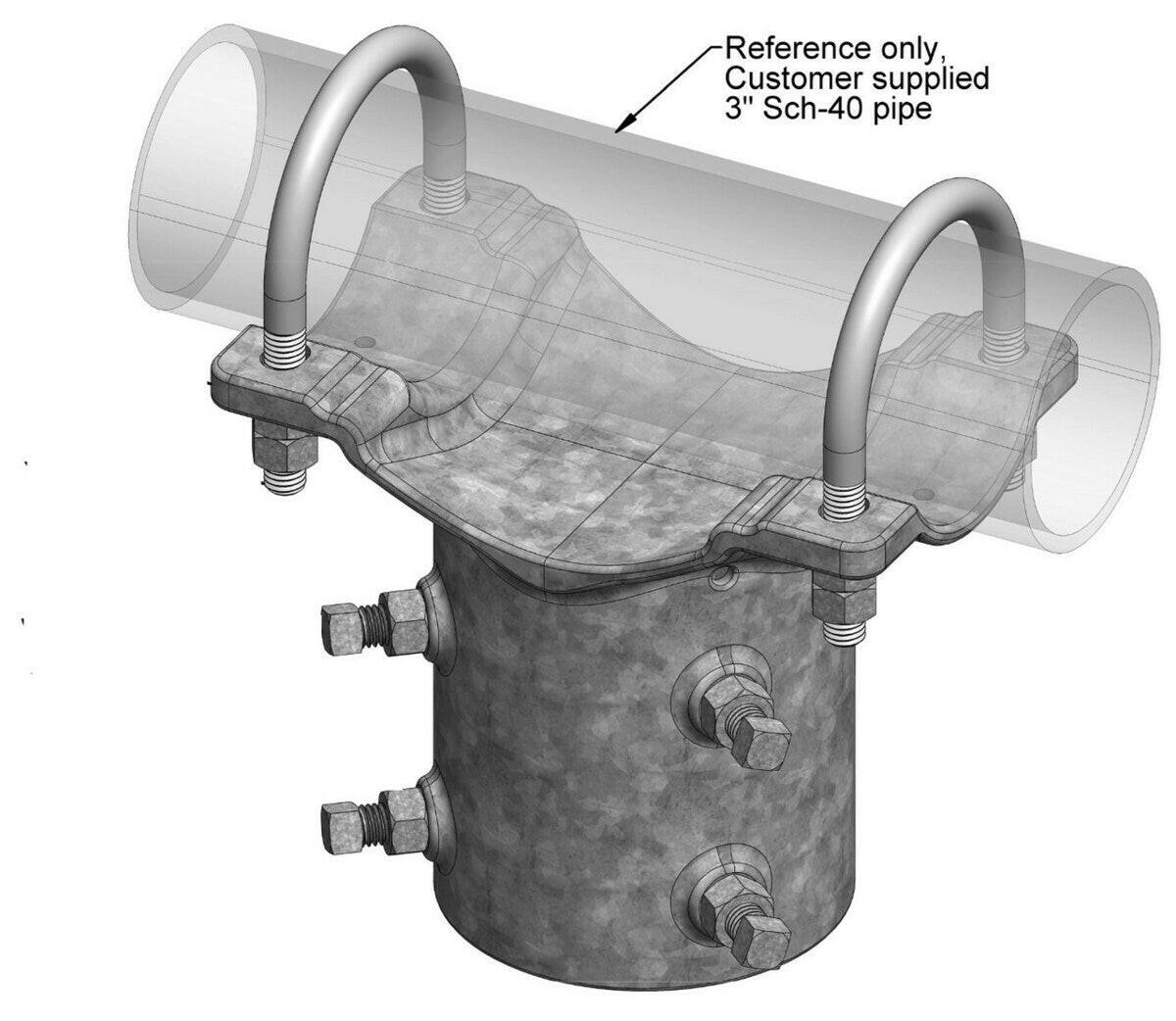

Tamarack Solar PGRM series pole cap that adds an additional vertical ole can help stabilize PGRM Top Pole Mounts that may be subject to high wind environments. Improved version of the PGRM cap where the pipe saddle is molded on the cap rather than separate pieces. The popular PGRM Mounts are designed for up to 6 modules per mount in portrait orientation. Available tilt angle ranges from 0 to 90 deg and allows easy seasonal adjustability. Use for modules with a minimum length of 35.5 in and a maximum sq. footage of 24.78. Clamp attachment uses the lip on the back of module frame and accommodates frame thickness between 1.18 in and 2 in. Rated for windspeeds up to 115 MPH. Install up to 92 square feet of modules on a single 4 in Schedule 40 pole and up to 130 square feet of modules on two 4 in schedule 40 poles.

Features

• Mount from 1-6 modules per mount in portrait orientation
• Easy to Install - Simple, one-person installation and tilt angle adjustment
• Accommodates many sizes of modules - for modules up to 24.78 sq-ft and with a minimum length of 35.5 in
• Heavy duty construction - Rated for windspeeds up to 110 mph
• Available Immediately - In stock for immediate shipment using ground carriers
• Adjustable Tilt Angle - Tilt angle can be set from 0 to 90 deg and is easily adjusted seasonally


Specifications

• Tilt Angle: 0-90 deg

• Suitable For Use With: 4 in SCH-40 Or SCH-80 Vertical Post

• Standards: ETL, UL Listed

• Warranty: 10 Years

• Weight: 5 lb

• Application: High Wind Locations

Documents

• Specification Sheet
• Instruction/Installation Manual
