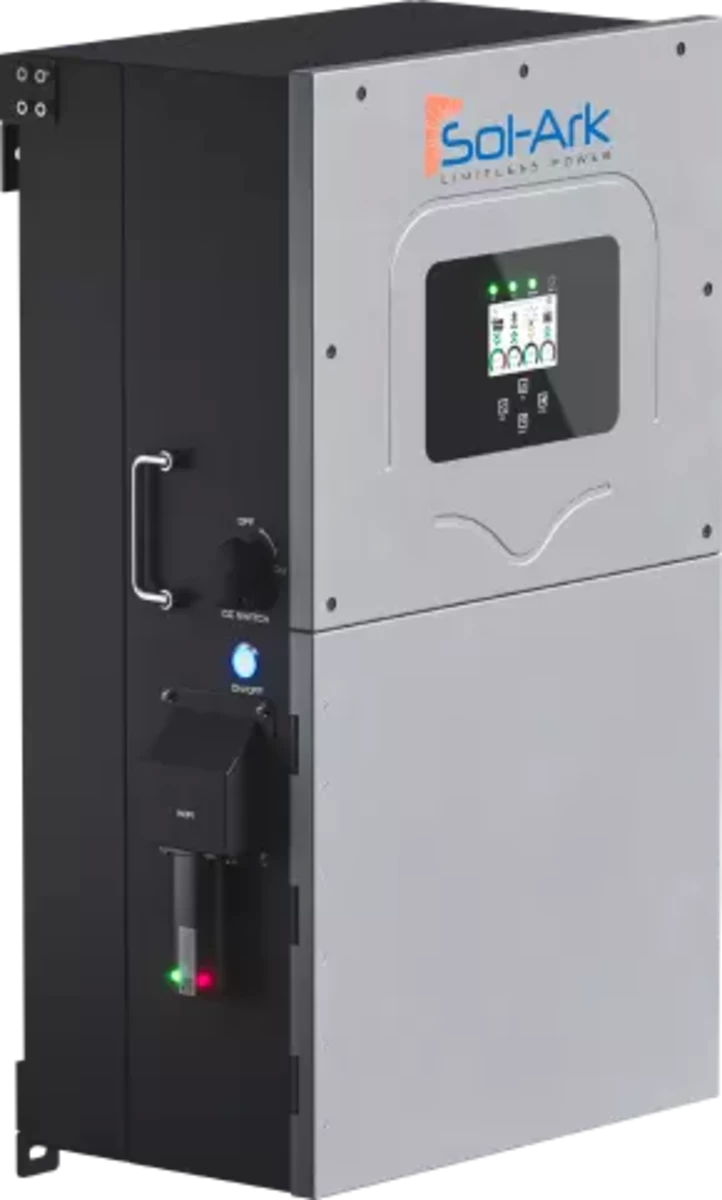

Sol-Ark 5K 120/240V 48V Split Phase Hybrid All-In-One Inverter 10 Year Warranty

Sol-Ark® 5K-2P solar hybrid inverter is designed for customers in Puerto Rico to be plug-n-play, easy to install, and provide energy independence.

Features

• Easy Install - The Sol-Ark INVERTER comes with everything you need to install it. Nicely packaged for added efficiency
• Fleet Management - With Sol-Ark's remote access features and app you are never out of touch to quickly repair or adjust any system without being on site
• Battery Agnostic - Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do, and can be used with a wide variety of 48V battery chemistries, from lead to lithium
• Warranty and Reliability - Comes with our award winning iron clad warranty and our 7 day a week live Engineering Support to assist you in all your needs


Specifications

• Type: All-In-One
• Dimensions: Inverter: 30 in (H) x 18.3 in (W) x 10 in (D)

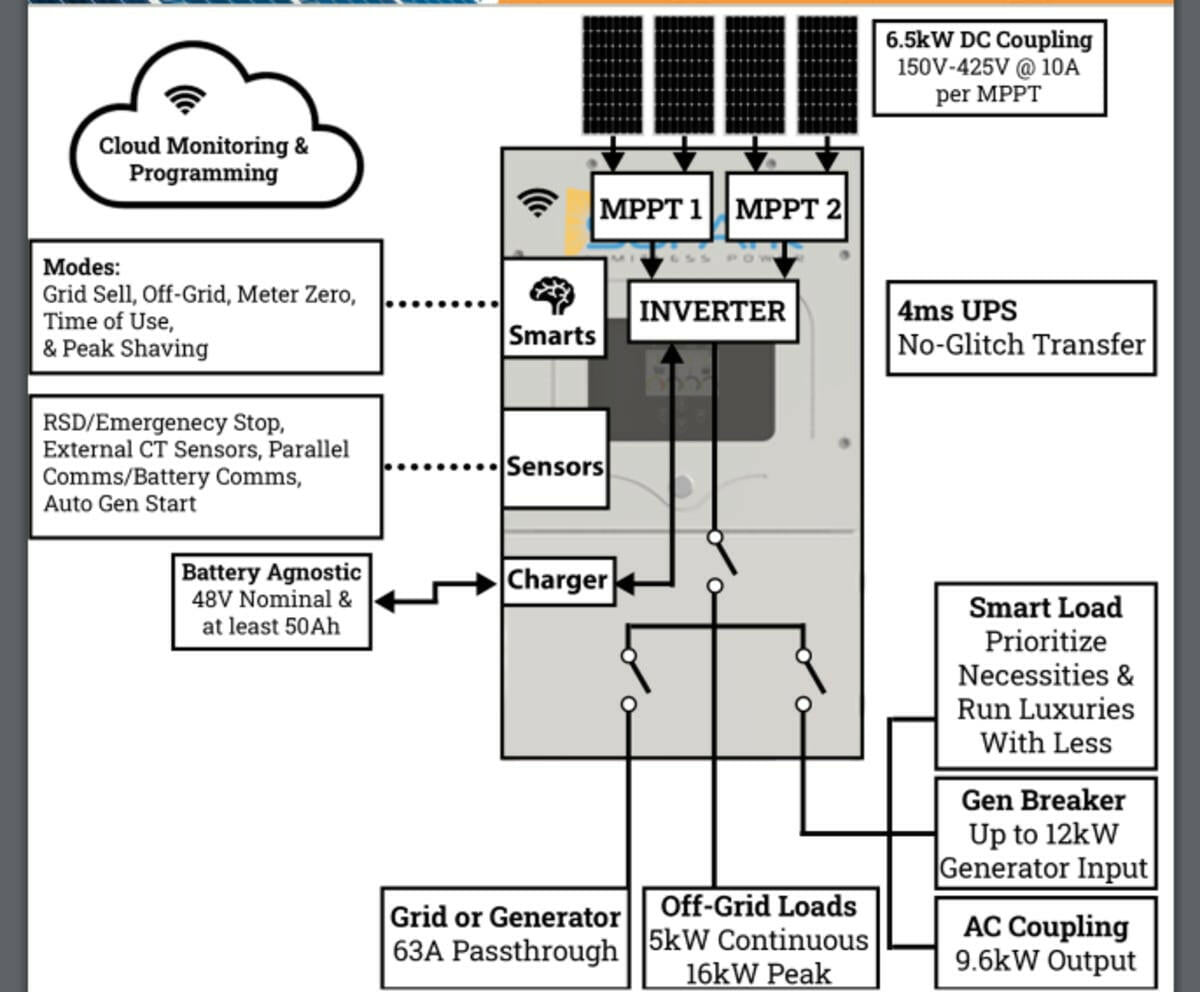

• Maximum Allowed PV Power: 3500 W + 3500 W = 6500 W (Solar Output Power 5000 W)
• Maximum PV Power Delivered to Battery & AC Outputs: 5000 W (Solar Output Power 5000 W)
• Maximum DC Voltage: 500 V at 18 A, 450 V at 20 A (Solar Output Power 15000 W)
• MPPT Voltage Range: 150-425 V (Solar Output Power 15000 W)
• Start-Up Voltage: 125 V (Solar Output Power 15000 W)
• Number of MPPT: 2 (Solar Output Power 15000 W)
• Maximum Solar Strings Per MPPT: 2 (Solar Output Power 15000 W)
• Maximum DC Current Per MPPT (Self Limiting): 10 A (Solar Output Power 15000 W)
• Maximum AC Coupled Input (Micro/String Inverters): 9600 W (Solar Output Power 15000 W)
• Capacity: 50-9900 Ah (Battery Optional, Output Power 5000 W)
• Continuous AC Power to Grid (On-Grid): 5000 W, 20.8 A-L (240 V) (AC Output Power 5 kW On-Grid & Off-Grid)
• Grid to Battery Charging Efficiency: 96% (Battery Optional, Output Power 5000 W)
• Continuous AC Power to Load (Off-Grid): 5000 W, 20.8 A-L (240 V) (AC Output Power 5 kW On-Grid & Off-Grid)
• CEC Efficiency: 96.5% (Peak 97.5%) (AC Output Power 5 kW On-Grid & Off-Grid)
• Surge AC Power (100 ms): 25000 VA L-L (240 V) (AC Output Power 5 kW On-Grid & Off-Grid)
• Design (DC to AC): Transformerless DC (AC Output Power 5 kW On-Grid & Off-Grid)
• Frequency Rating: 50/60 Hz (AC Output Power 15 kW On-Grid & Off-Grid)
• PV DC Disconnect Switch (NEC 240.15): Integrated
• Ground Fault Detection (NEC 690.5): Integrated
• PV Rapid Shutdown Control (NEC 690.12): Integrated
• PV Arc Fault Detection (NEC 690.11): Integrated
• PV Input Lightning Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• AC Output Breaker (200 A): Integrated
• Continuous AC Power with Grid or Generator:
  • 15120 W, 63 A L-L (240 V)
  • 7560 W, 63 A L-L (120 V)
    (AC Output Power 5 kW On-Grid & Off-Grid)
• Idle Consumption (Typical No-Load): 60 W (AC Output Power 5 kW On-Grid & Off-Grid)
• Surge Protection: DC Type II / AC Type II
• Sell Back Power Modes: Limited to Household / Fully Grid-Tied (AC Output Power 5 kW On-Grid & Off-Grid)
• Response Time (Grid-Tied to Off-Grid): 5 ms (AC Output Power 5 kW On-Grid & Off-Grid)
• Power Factor: +/-0.9 - 1.0 (AC Output Power 5 kW On-Grid & Off-Grid)
• Battery Type: Lead-Acid or Lithium-Ion (Battery Optional, Output Power 12000 W)
• Nominal DC Input Voltage: 48 V (Battery Optional, Output Power 5000 W)
• Connection: 120/240/208V Split Phase (AC Output Power 5 kW On-Grid & Off-Grid)
• Voltage Range: 43-59 V (Battery Optional, Output Power 5000 W)
• Continuous Battery Charging Output: 120 A (Battery Optional, Output Power 5000 W)
• Charging Curve: 3-Stage with Equalization (Battery Optional, Output Power 5000 W)
• External Temperature Sensor: Included (Battery Optional, Output Power 5000 W)
• Current Shunt for Accurate %SOC: Integrated (Battery Optional, Output Power 5000 W)
• External Gen Start Based on Voltage or %SOC: Integrated (Battery Optional, Output Power 5000 W)
• Communication to Lithium Battery: CanBus & RS485
• Enclosure Rating: IP65 / NEMA 3R
• Ambient Temperature Rating: -25 to 55°C (>45°C Derating)
• Mounting Type: Wall
• Wi-Fi & LAN Communication: Included
• Surge AC Power (10 sec): 16000 VA L-L (240 V) (AC Output Power 5 kW On-Grid & Off-Grid)
• Standards Compliance:
  • Electronics Certified Safety by SGS Labs to NEC & UL Specs
  • NEC 690.4B & NEC 705.4/6
  • Grid Sell Back: UL1741-2010/2018, IEEE1547a-2003/2014
  • FCC 15 Class B, UL1741SA, CA Rule 21, HECO Rule 14H
• Warranty: 10 Years
• Weight: Inverter: 78 lb
