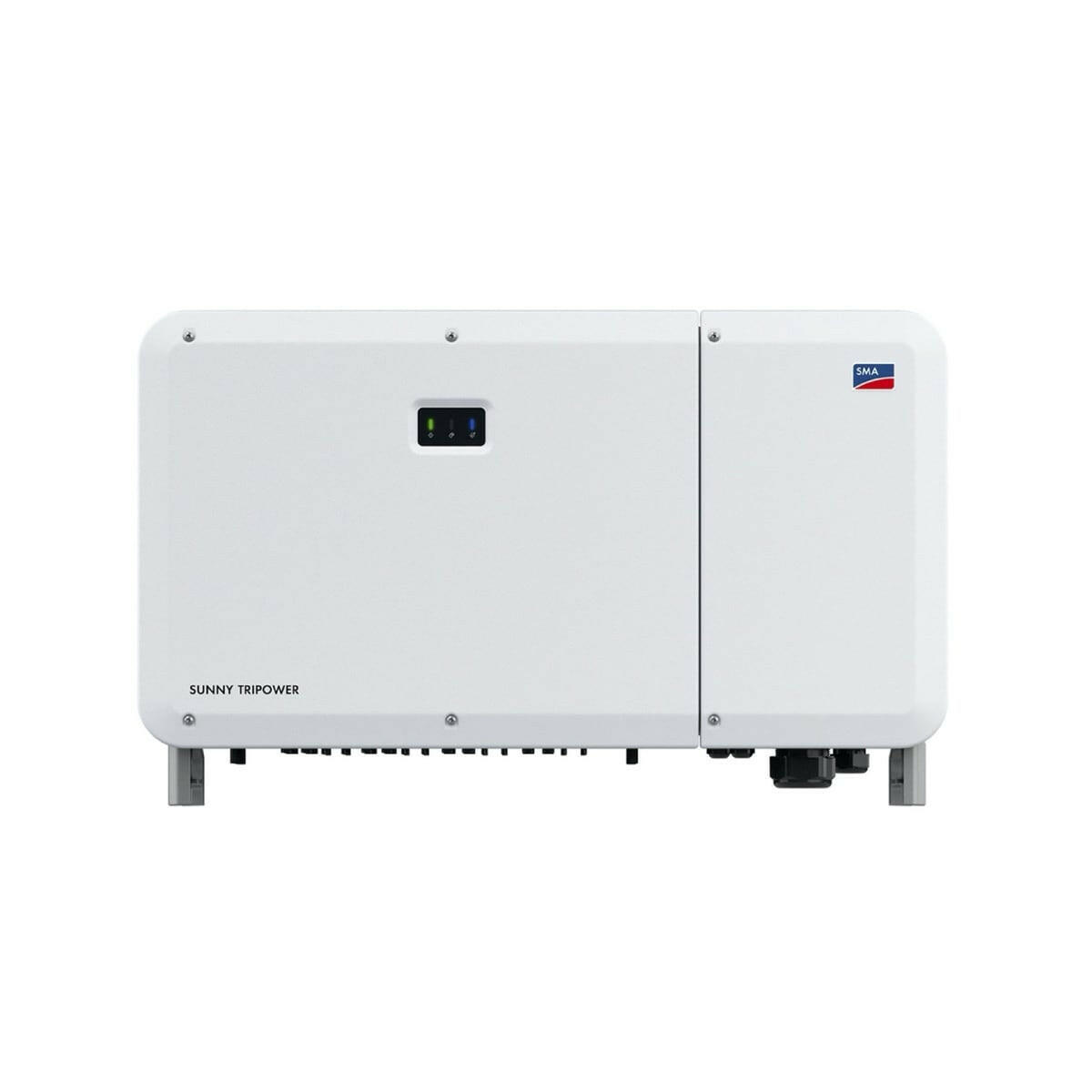

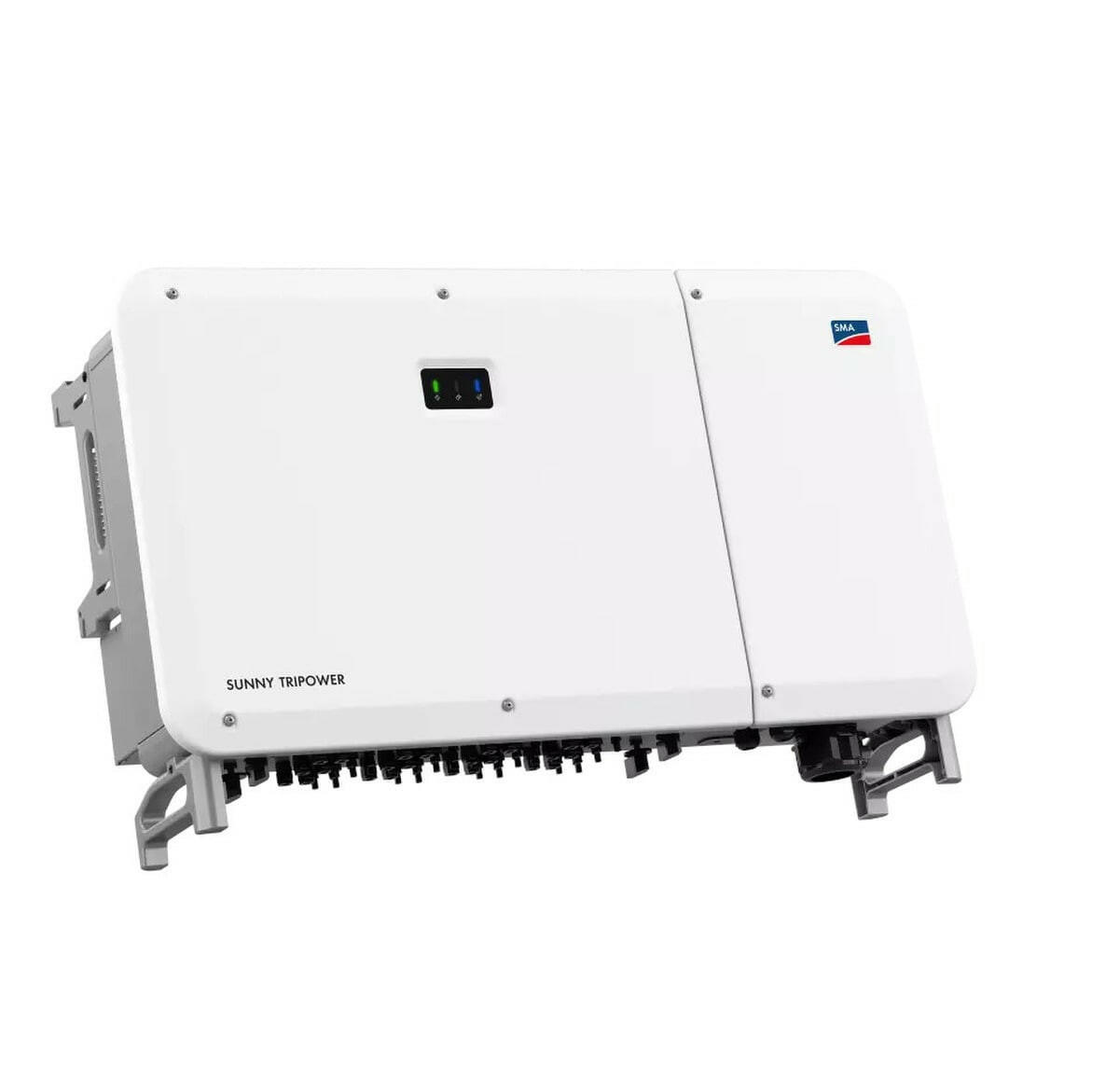

SMA Sunny Tripower Core 2 110kW inverter

Plan and implement commercial solar projects more easily and cost-efficiently. The new SMA string inverter Sunny Tripower Core 2 with 110 kW output offers installers maximum flexibility in the implementation of commercial rooftop and free-field systems. In solar systems with the Sunny Tripower Core 2, different module orientations can also be taken into account, so that system operators always achieve the highest energy yields during the course of the day. In addition, they benefit from future-proof options for storage integration and the direct selling of solar power. The Sunny Tripower Core 2 has 12 MPP trackers and 24 strings, ensuring maximum flexibility when it comes to system design and installation. It enables up to 150% overdimensioning of the PV array and is suitable for solar projects with up to 1, 100 V DC. The integrated SMA ShadeFix software solution minimizes the impact of shading, while the integrated SMA Smart Connected service ensures automatic notification in the event of a fault and so reduces service and maintenance costs. The Sunny Tripower Core 2 is also suitable for bifacial PV modules.

Features

• Sunny design - intuitive planning and design
• Storage business - commercial storage system: Seamless extension, e.g. with storage solutions
• Data Manager M - Complete ennexOS integration and easy system commissioning
• Sunny portal - comprehensive monitoring


Specifications

• Type: 3-Phase

• Dimensions:

  • Overall Length: 26.9 in
  • Overall Width: 44 in
  • Overall Depth: 14.3 in

• Electrical Specifications:

  • Input Voltage: 1100 V
  • Output Voltage: 400 V
  • Power Rating: 110 kW
  • Input Current: 26/40 A
  • Amperage Rating: 159 A
  • Efficiency: 98.4/98.6%
  • Frequency Rating: 50 Hz
  • Power Factor: 1

• Cooling Type: Active

• Mounting Type: Wall

• Connection Type: Sunclix/Terminal Lug

• Temperature Rating: -22 to 140 deg F

• Display Type: LED


Documents

• Specification Sheet
