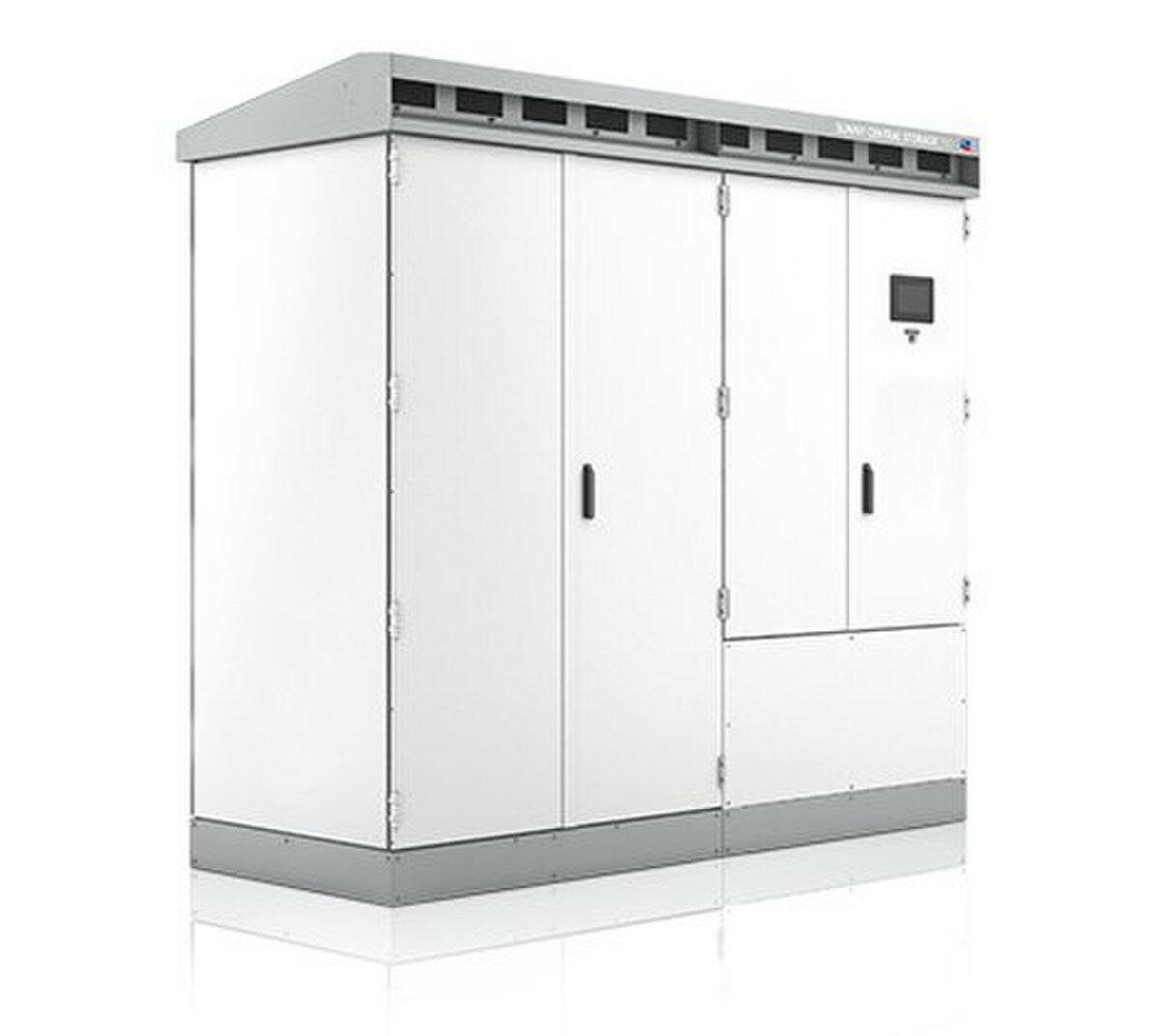

SMA Sunny Central 750 CPUS Inverter

The Sunny Central CP-US series delivers outstanding performance. In combination with an external transformer, the Sunny Central CP-US can be connected to any utility grid or three-phase commercial service while directly providing grid management functions. The CP-US family is UL listed at 1000 V DC and features an integrated AC disconnect in accordance with NEC 2011 requirements. Both the outdoor enclosure with the OptiCool™ cooling concept and the separate connection area ensures simple installation while maximizing returns. With a peak efficiency of 98.7 percent, it outperforms all other inverters in its class. The Sunny Central CP-US can also be integrated with the Power Plant Controller as well as the Medium-voltage Power Platform for utility-scale applications.

Features

• Savings in balance of system costs due to 1000 V operating voltage
• Outdoor enclosure allows for direct field deployment
• Small footprint and light weight for easy shipping and installation
• Highest efficiency in its power class
• Full nominal power at ambient temperatures up to 50 Deg C
• 10% Additional power for continuous operation at ambient temperatures up to 25 Deg C
• Configurable DC voltage range
• Integrated AC disconnect for NEC 2011 compliance
• Easy and safe installation and with large, separate connection area
• Powerful grid management functions (incl. Low Voltage Ride Through)


Specifications

• Width: 101 in
• Height: 90 in
• Depth: 38 in
• Input Voltage: 595 Vdc
• Input Amperage Rating: 1600 A
• Input Power Rating: 853 kW
• Output Voltage: 545-820 Vac
• Output Amperage: 1411 A
• Output Power: 825 kVA/750 kVA
• Power Factor: 1/0.8
• Temperature Rating: -25 to 50 deg C
• Standards: UL Listed


Documents

• Specification Sheet
