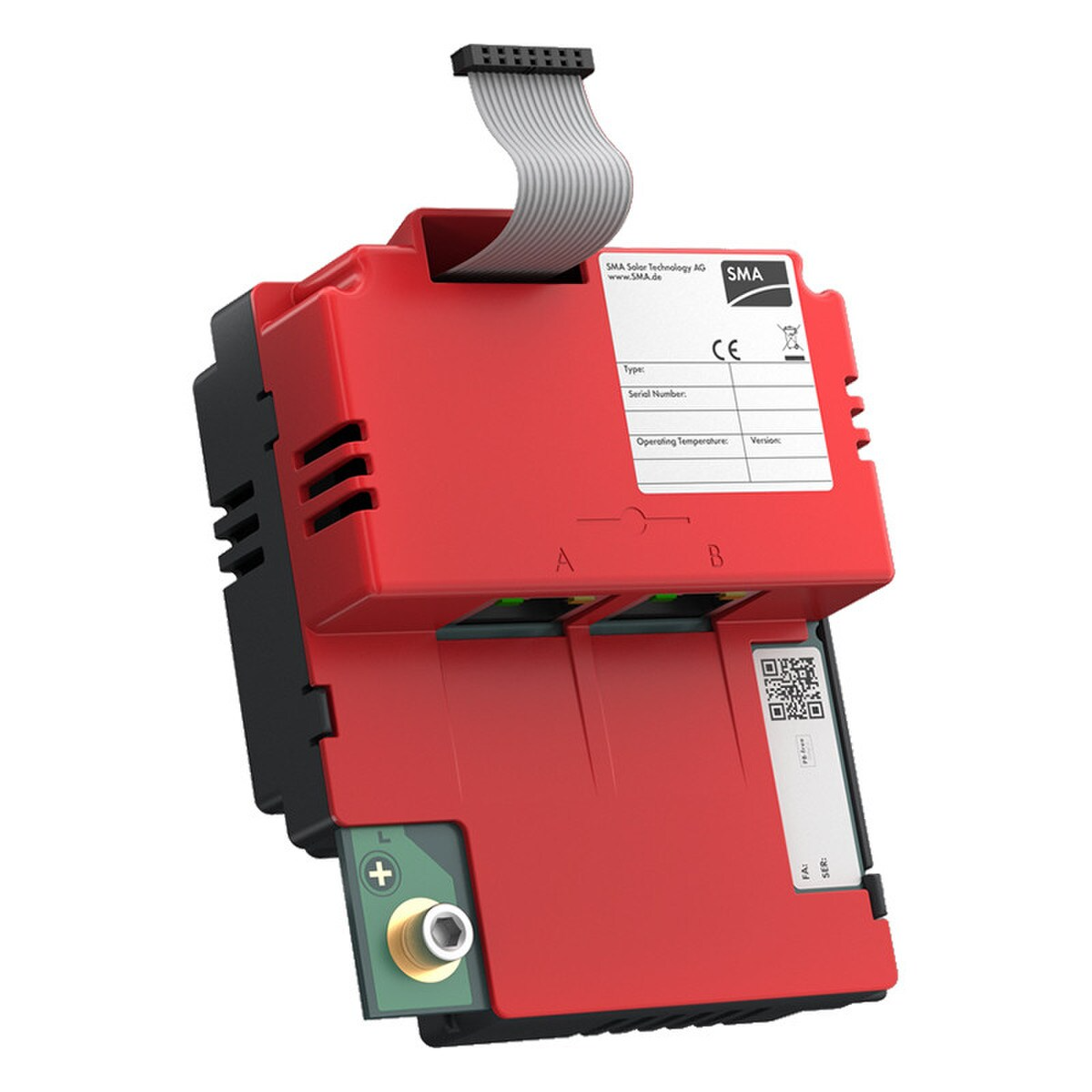

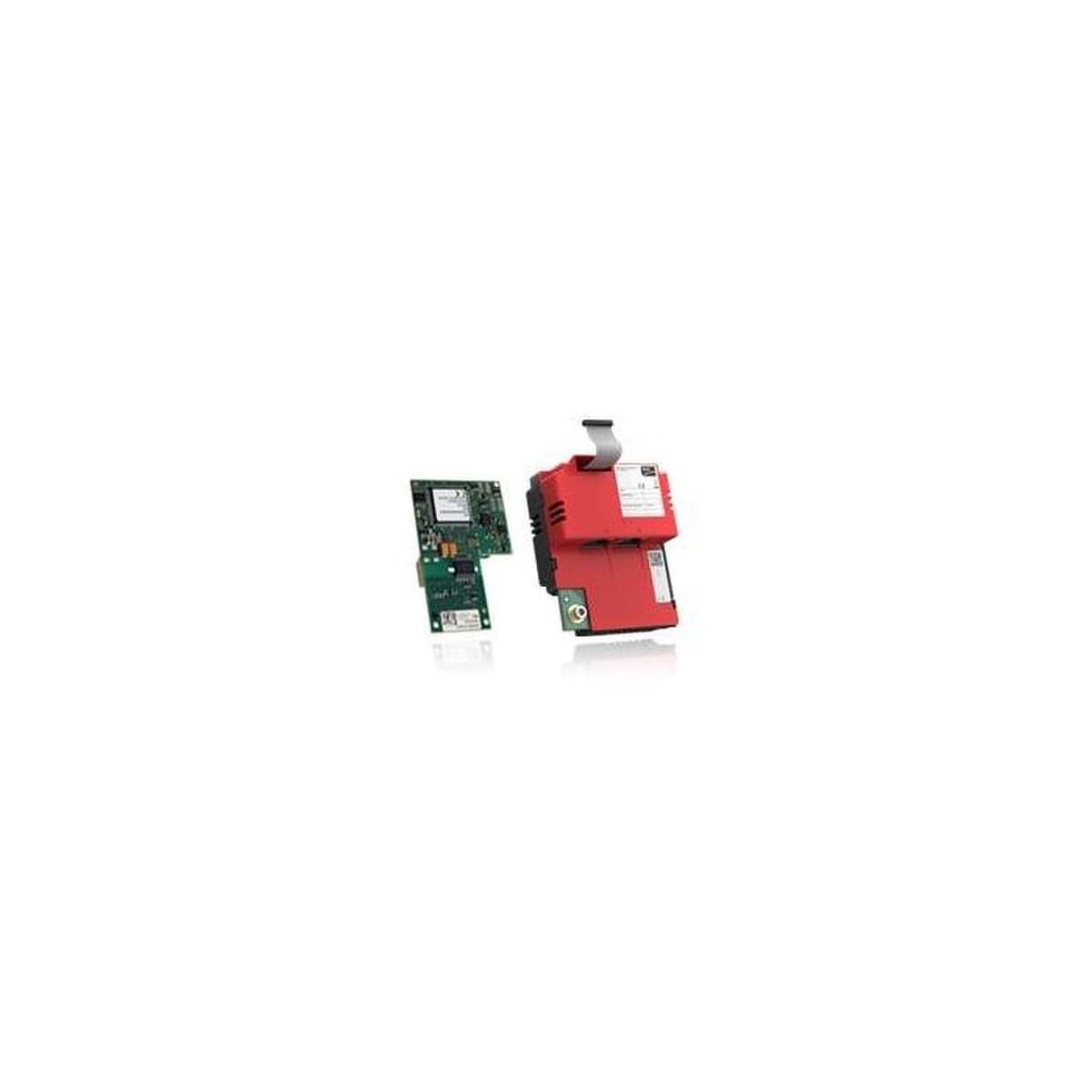

SMA Speedwire Datalogging/Monitoring Card for -22 and Tripowers (SKU Part Number SWDM-US-10)

This retrofit module was designed by SMA for use with SB****TL-US-22 residential inverters and is fitted as standard in the STP****TL-USA-10 commercial 3-phase inverters. It allows communication between the inverter and the customer's router directly with the use of a CAT-5 ethernet cable. Speedwire is a wire-based type of communication based on the Ethernet standard and the communication protocol SMA Data2+. This enables inverter-optimized 10/100 Mbit data transmission between Speedwire devices in PV plants. The SMA Webconnect function enables direct data transmission between the inverters of a small-scale plant and the Internet portal Sunny Portal without any additional communication device and for a maximum of four inverters per Sunny Portal plant. For this, a Speedwire/Webconnect data module must be installed in each of the inverters. You can access your Sunny Portal plant from any computer with an Internet connection.

Features

• Simple - Straightforward, plug-and-play commissioning. Other SMA devices are not required. Reasonable investment costs and low installation effort. Most favorable way of plant monitoring
• Powerful - Free online monitoring via Sunny Portal. Clear display of the most important plant data with sunny portal
• Flexible - Data exchange with Sunny Portal without data logger. Free Sunny Portal app for data visualization on smartphones
• The Speedwire/Webconnect data module performs the following tasks - Set-up of a Speedwire network in small-scale and large-scale plants
• Set-up of a Speedwire network in small-scale and large-scale plants - In small-scale plants via a router with Internet connection, In large-scale plants via the Cluster Controller, Data exchange with Sunny Explorer from software version 1.06


Specifications

• Suitable For Use With: TL-22 & STP Inverters
• Connection: RJ45 Cable
• Radio Range: 100 m
• Plant Description: Overview of Key Properties of the PV Plant
• Annual Comparison: Quick Yield Overview of the Entire Operating Period
• System Logbook: Access to Messages Regarding Plant Events
• Device Overview: Properties & Parameters of the Devices in the PV Plant
• Status Reports: Email Reports Provide Regular Information on Plant Yields & Plant Events
• Data Management: Data Consolidation After Two Years
• Inverter Comparison: Fully Automatic & Continuous Yield Comparison & Email Alarms
• Communication Monitoring: Ongoing Monitoring of the Connection Between Sunny Portal & the PV Plant
• Standards: UL, IEEE, FCC, cCSAus
• Warranty: 10 Years
