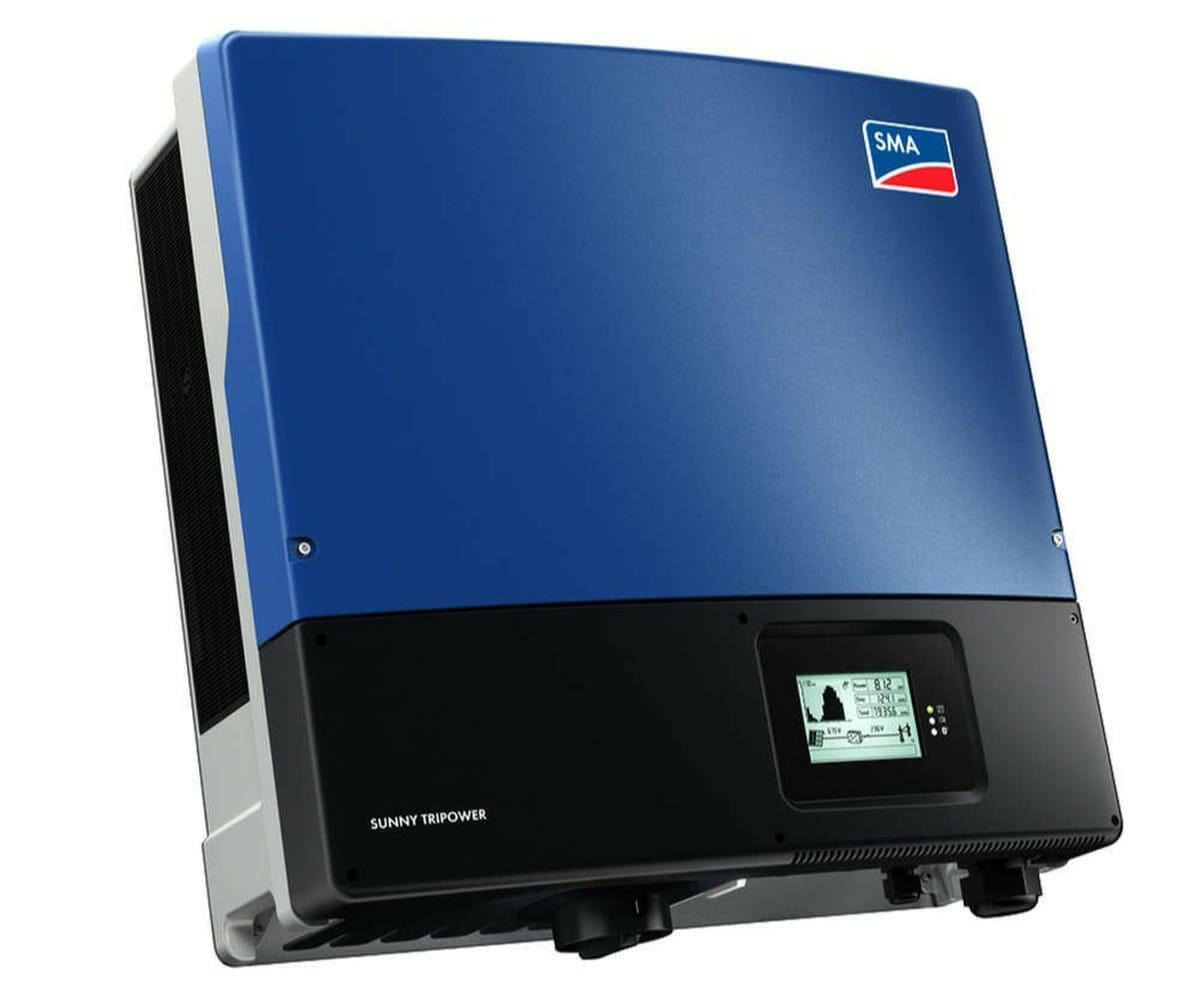

SMA Solar Technology AG 53 A 12000 W Sunny Tripower Inverter

The world's best-selling three-phase PV inverter, the SMA sunny tripower TL-US, is raising the bar for decentralized commercial PV systems. This three-phase, transformerless inverter is UL listed for up to 1000 V DC maximum system voltage and has a peak efficiency above 98 percent, while OptiTrac global peak minimizes the effects of shade for maximum energy production. The sunny tripower delivers a future-proof solution with full grid management functionality, cutting edge communications and advanced monitoring. The sunny tripower is also equipped with all-pole ground fault protection and integrated AFCI for a safe, reliable solution. It offers unmatched flexibility with a wide input voltage range and two independent MPP trackers. Suitable for both 600 VDC and 1000 VDC applications, the sunny tripower allows for flexible design and a lower levelized cost of energy.

Features

• Two independent DC inputs
• 15° to 90° mounting angle range
• Detachable DC connection unit
• 1000 VDC increases system efficiency
• OptiTrac global peak MPPT
• Integrated DC AFCI
• Floating system with all-pole sensitive ground fault protection
• Reverse polarity indicator in combination with Connection Unit
• Complete grid management feature set
• Integrated speedwire, webconnect, modbus interface


Specifications

• Height: 25.6 in
• Width: 26.2 in
• Depth: 10.4 in
• Short Circuit Current: 53 A
• Operating Voltage: 150-1000 V
• Efficiency: 98.2/97.5%
• Power Factor: 1/0.0 Leading - 0.0 Lagging
• Output Amperage: 14.4 A
• Frequency Rating: 50/60 Hz
• AC Voltage: 244-305 V
• Power Rating: 12000 W
• Operating Temperature: -25 to 60 deg C
• Noise Emission: <51 dBA


Documents

• Specification Sheet
• Instruction/Installation Manual
