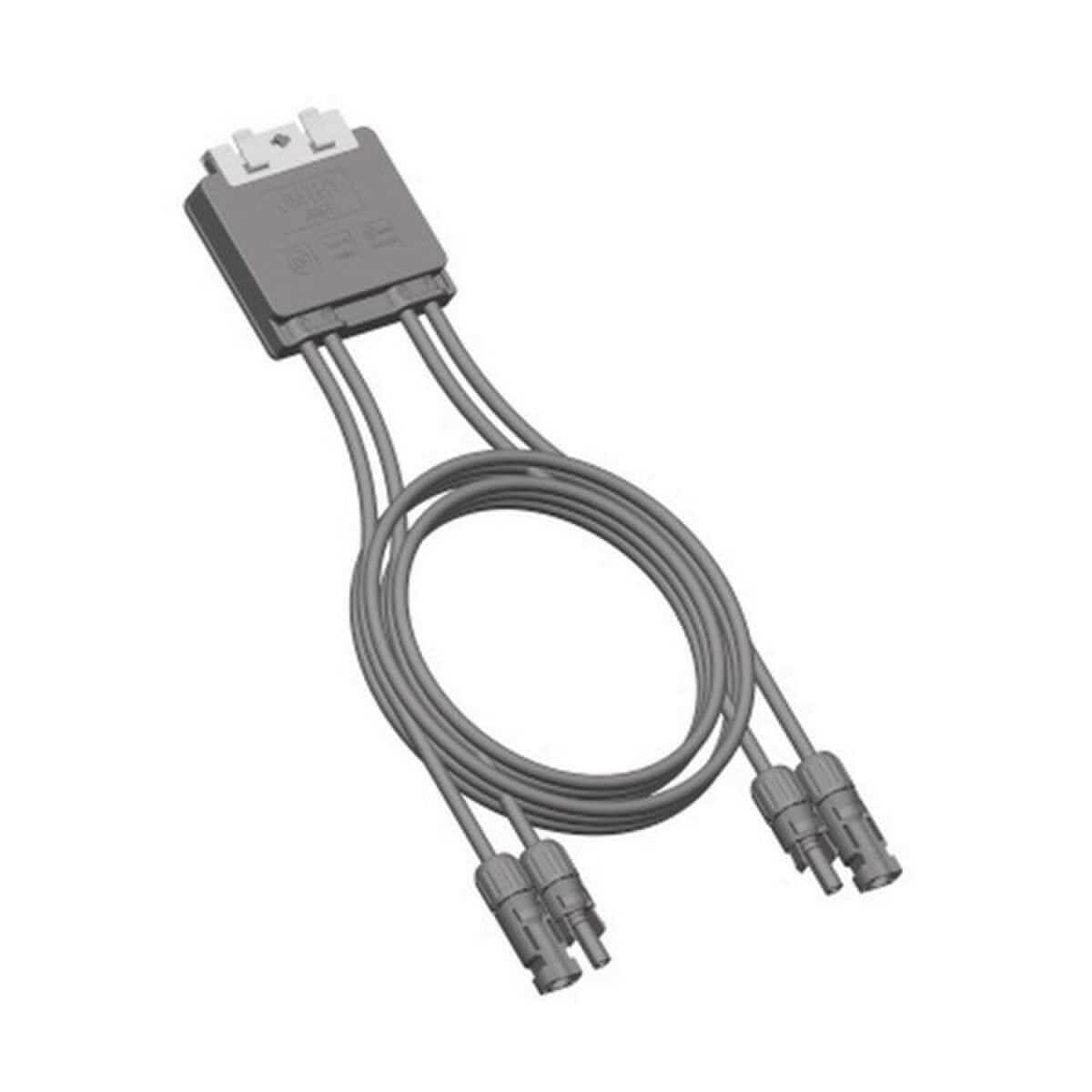

The SunSpec Certified Rapid Shutdown System (model JMS-F), available from SMA, is the most cost-effective and reliable solution for fulfilling NEC 2017 module level shutdown requirements. The module-level device is certified for compatibility with the SunSpec communication signal and SMA inverters, making compliance simple and easy. By using the existing DC lines between the inverter and PV array for power line communications, installation and labor are significantly reduced. No additional wires or communication equipment is needed. The solution also features up to 50% fewer internal components vs alternatives, resulting in greater lifetime reliability.

Features

• Simple plug-and-play installation
• No additional components necessary, reducing balance of system costs
• Power line based communication certified for compatibility with the SunSpec signal for rapid shutdown
• Shuts down PV module whenever SunSpec signal is interrupted
• UL 1741 Rapid Shutdown System Equipment
• NEC 2017 690.12(B)(2) Module Level Shutdown


Specifications

• Overall Length: 3.5 in
• Overall Width: 3.48 in
• Overall Depth: 0.9 in
• Input Voltage: 10-60 V
• Output Voltage: 1-60 V
• Amperage Rating: 15 A
• Cable Length: 1.2 m
• Temperature Rating: -40 to 75°F
• Connection Type: MC4
• Enclosure Rating/IP Rating: NEMA 4X
• Model Number: JMS-F
