SMA SMA-EDMM-US-10 ennexOS Data Manager M Lite

$1,630.00
$1,630.00
(-0%)
Vendor: SMA
SKU: SMA-EDMM-US-10
Availability: Out Of Stock
Subtotal: $1,630.00
10 customers are viewing this product
Description

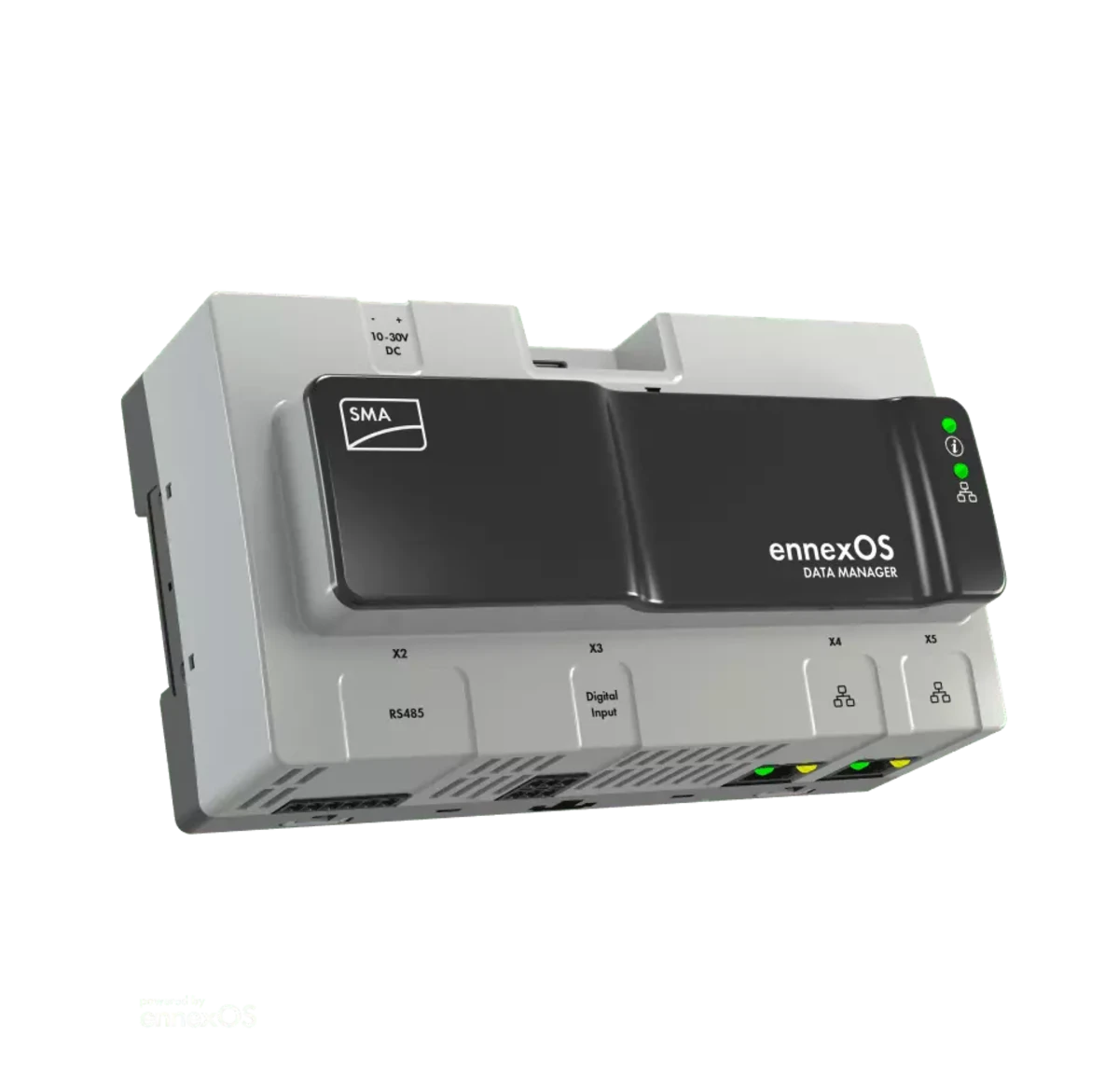

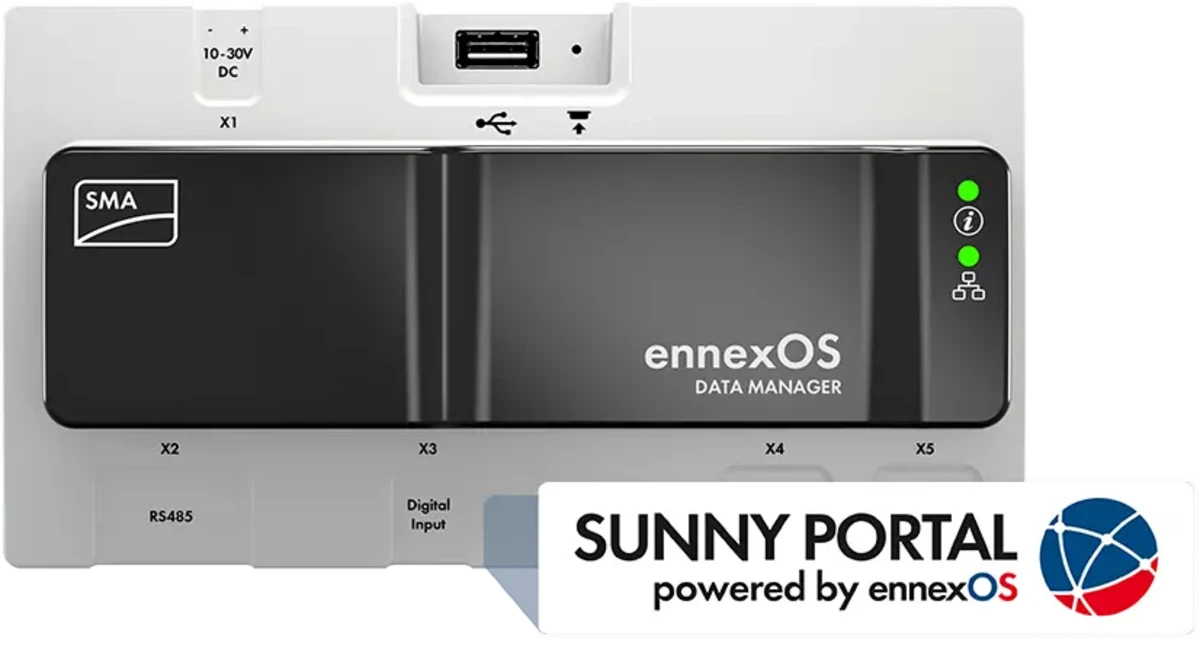

In combination with the sunny portal powered by ennexOS, the data manager M enables monitoring, management and gridcompliant power control in decentralized PV systems. Thanks to flexible expansion options, the data manager M is already well-equipped for business models in the energy market of the future. The data manager M is the ideal professional system interface for electric utility companies, direct sellers, service technicians and PV system operators. Coordinated user interfaces and intuitive assistance functions simplify operation, parameterization and commissioning. Both variants are modularly expandable with many additional functions and interfaces. The Data Manager M is the perfect monitoring and control solution for decentralized large-scale PV power plants up to 2.5 MVA with up to 50 devices. Thanks to the RS485 and Ethernet interfaces as well as analog and digital input and output systems, users benefit from particularly versatile connection options. The Data Manager M is the professional system interface for electric utility companies, direct sellers, service technicians and PV system operators.

Features

  • Easy integration of devices
  • Centralized commissioning of all integrated components
  • Flexibly expandable anytime
  • Access to the energy market of the future based on ennexOS
  • Complies with international gridintegration requirements
  • Combine storage systems, energy generators and e-mobility
  • Remote monitoring and parameterization possible
  • Detailed analytics, error messages and reporting through Sunny Portal
  • Remote parameterization saves time and money
  • Direct selling with SMA SPOT
  • Automatic monitoring of PV components thanks to SMA Smart Connected

Specifications

  • Input Voltage: 10-30 V
  • Power Consumption: 4 W
  • Relative Humidity: 5-95%
  • Enclosure Rating/IP Rating: IP20
  • Operating Altitude: 0-3000 M
  • Ambient Temperature: -4 to 140 deg F
  • Dimensions: 6.36 in Width x 3.53 in Height x 2.65 in Depth
  • Mounting Type: Top-Hat Rail/Wall
  • Warranty: 2 Years
  • Weight: 0.5 lb
