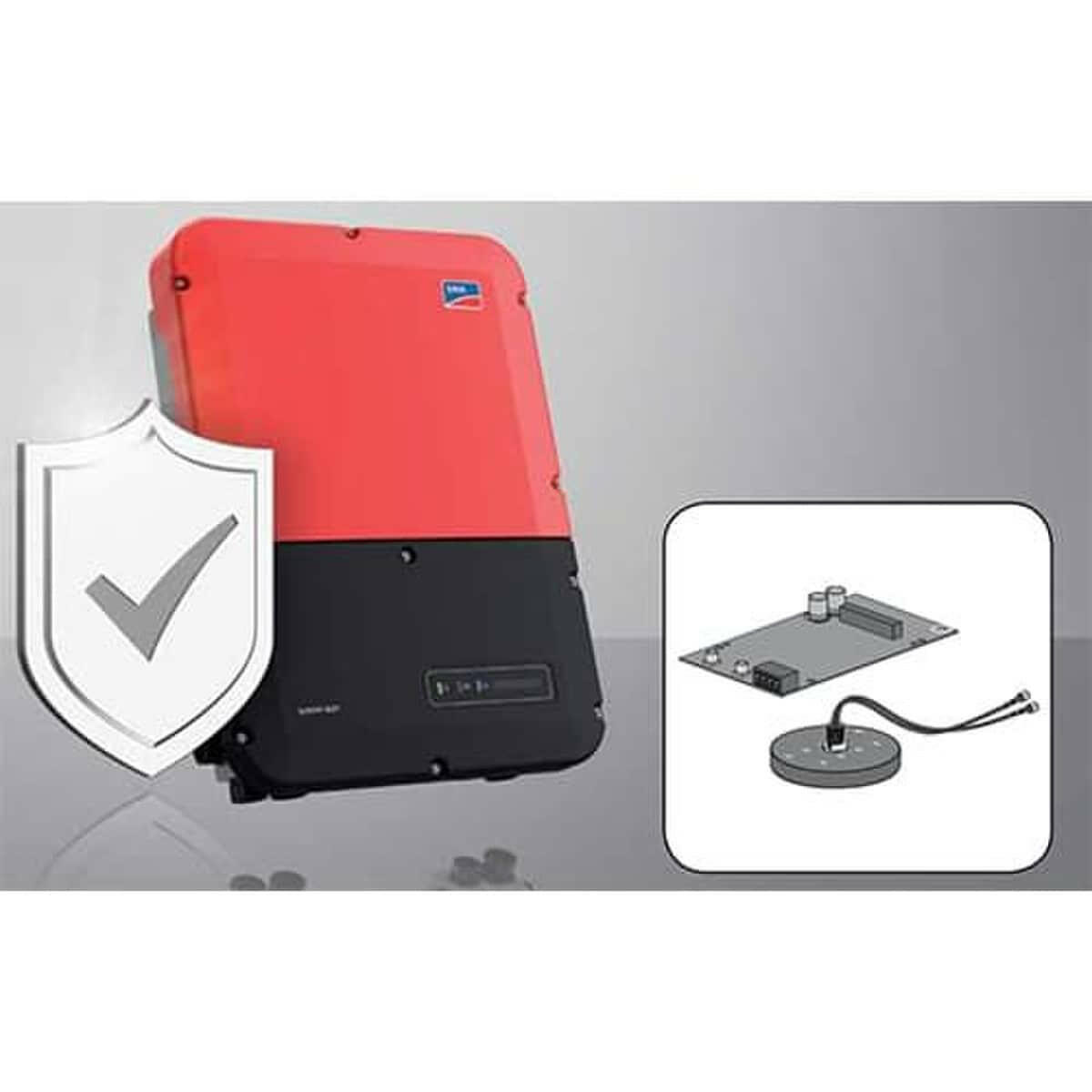

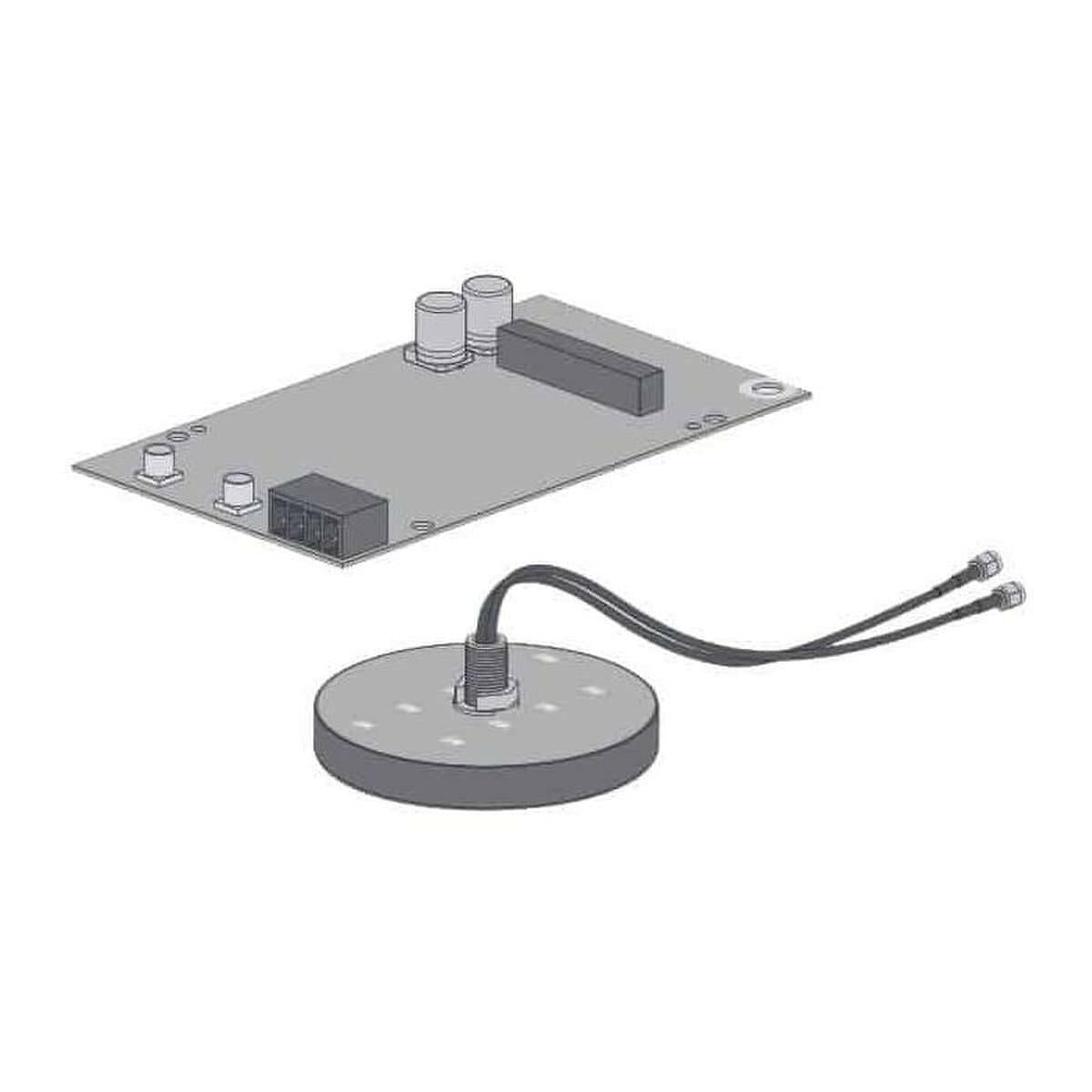

SMA Cellular LTE Modem w/ 5yr Data Plan (SKU Part Number CELLMODKIT-US-10)

The SMA Cellular LTE Modem Kit allows for direct data transmission between the Sunny Boy inverter to the cloud based Sunny Portal via a cellular network as an alternative to data transmission via Ethernet or WLAN. The SMA Cellular LTE Modem Kit transmits solar production data up to four times per day to Sunny Portal. The SMA Cellular LTE Modem Kit includes a 5 year prepaid data plan, which can be extended upon request.

Features

• Reliable cell signal strength - high-speed 4G LTE modem provides the most comprehensive coverage
• Configurable as primary or fallback communications method
• Perfect alignment - designed for integration with power+ solution
• Mounts within sunny boy inverter for environmental protection
• Wirelessly transmits data to sunny portal
• Plug-and-play installation
• Rapid, 'snap-in' installation
• Quick and easy setup
• 5 year prepaid data plan included

Specifications

• Number of Inverters Monitored: 1 per Kit
• Data Sampling Rate: Average over 15 min
• Data Upload Frequency: Up to 4 times per day
• Data Plan: 5-year prepaid plan
• Power Consumption:
  • Transmission: <3.5 W
  • Idle: <500 mW
• Operating Temperature: -13 to 140°F
• Standby Temperature: -40 to 140°F
• Antenna: Included, dual-band, outdoor-rated
• Supported Communication Interfaces: 3G/4G LTE Cat 1
• Supported Carriers: AT&T, T-Mobile US
• Suitable for Use With: Multiple Major Cellular Carriers
• Warranty: 5 Years
• Dimensions: 4.33 in (L) x 2.36 in (W)
• Weight: 0.44 lb

Documents

• Specification Sheet
