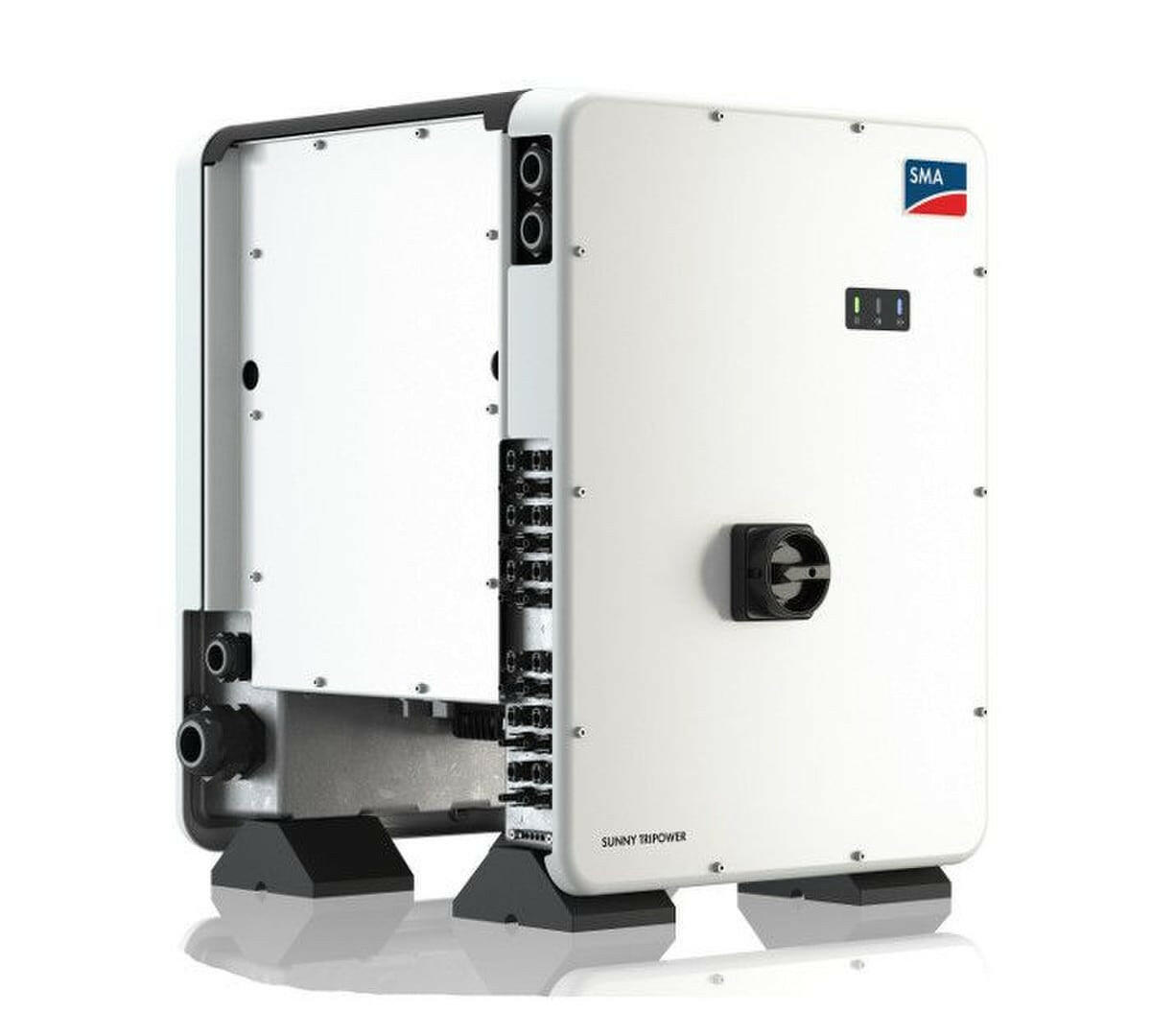

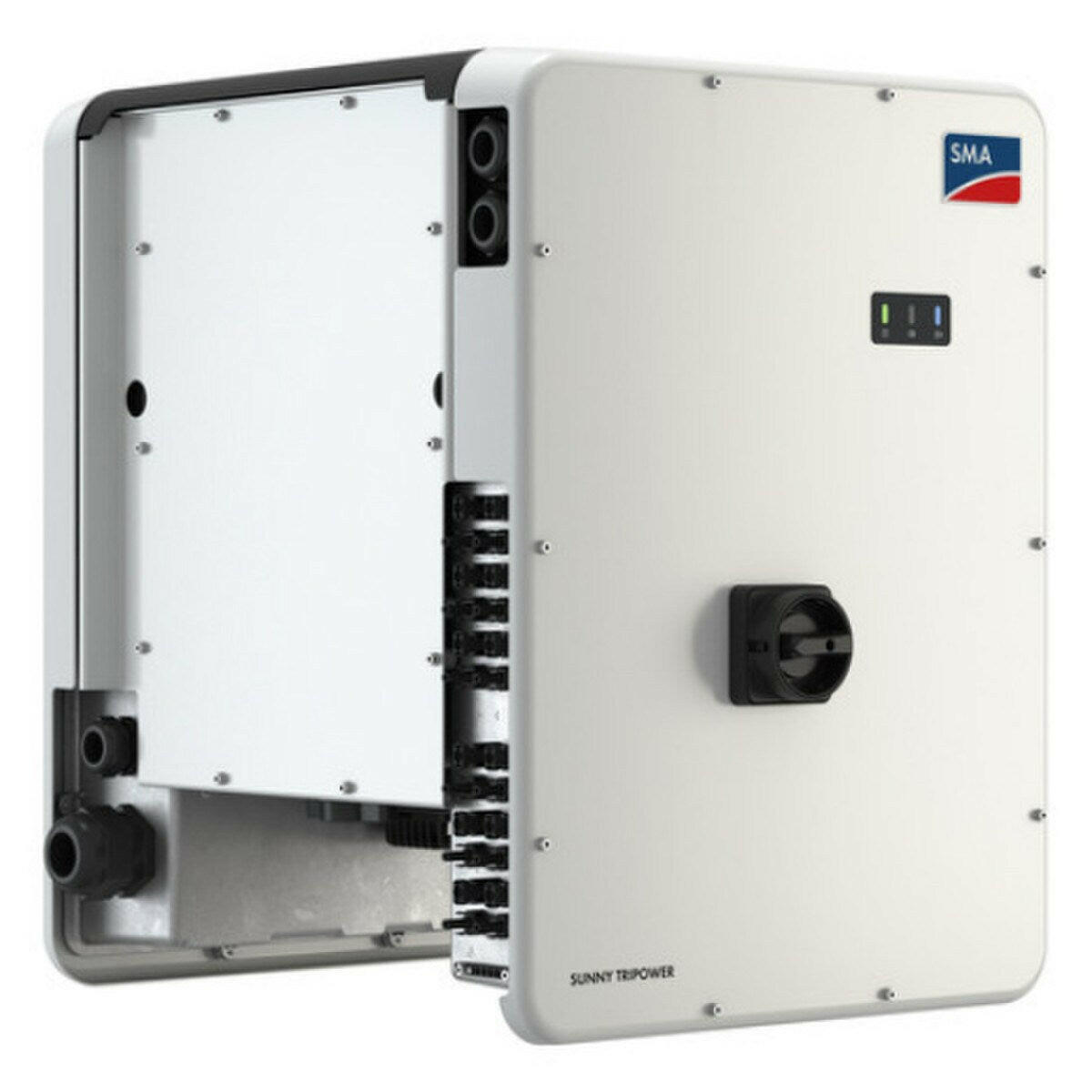

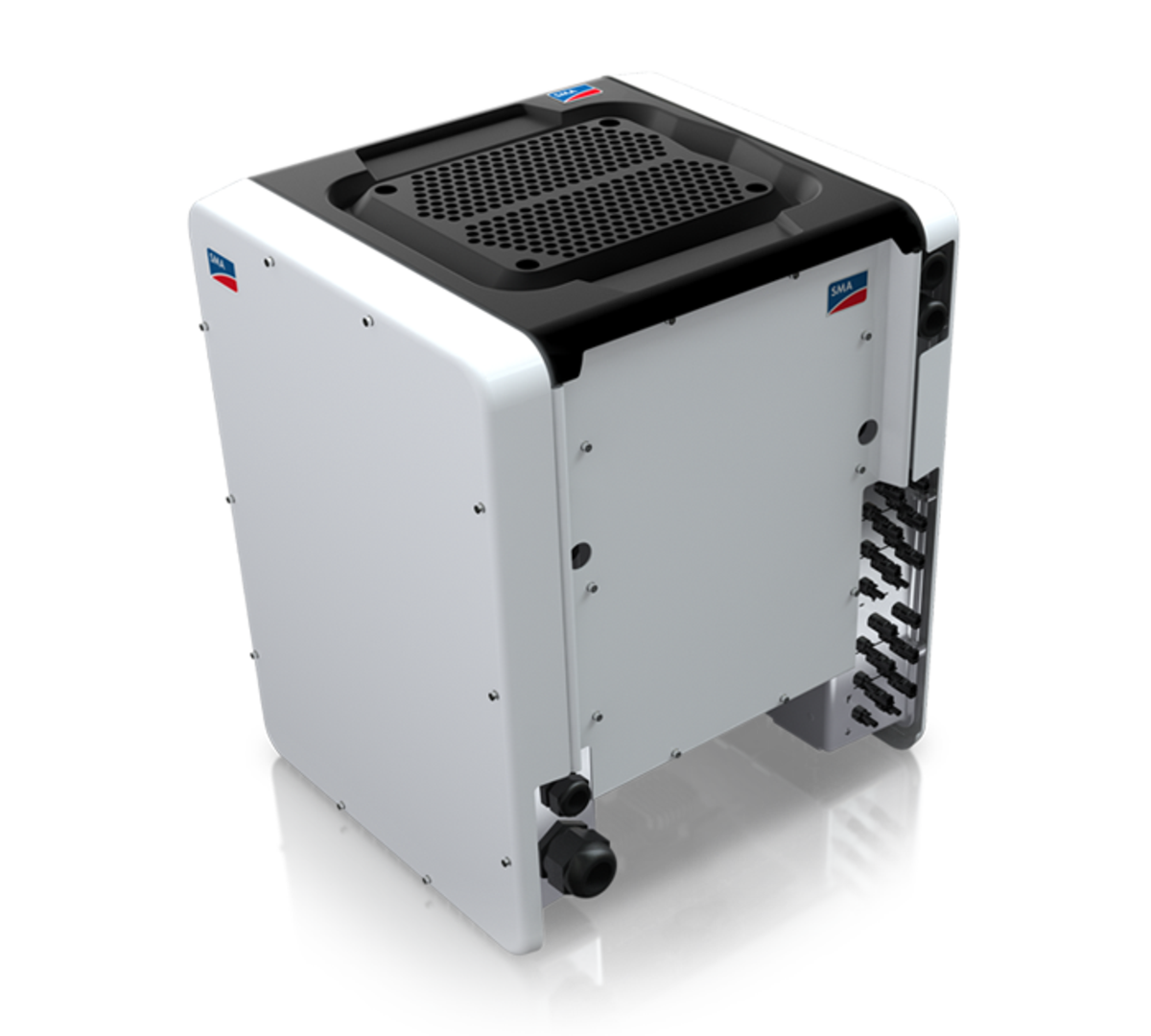

SMA 50000 W Grid-Tied Free-Standing Sunny Tripower Core 1 String-Inverter

The Sunny Tripower CORE1 is the world's first free-standing string inverter. Its innovative design significantly reduces installation costs for commercial rooftop, carport and ground mount PV systems. Combined with industry leading performance and safety features, CORE1 offers unmatched reliability, maximum return on investment, and lower total cost of ownership that make it the preferred choice for commercial PV professionals. From distribution to construction to operation, the Sunny Tripower CORE1 enables logistical, material, labor and service cost reductions, and is the most versatile, cost-effective commercial solution available. Integrated SunSpec PLC for rapid shutdown and enhanced DC AFCI arc-fault protection ensure compliance to the latest safety codes and standards. With Sunny Tripower CORE1 and SMA's ennexOS cross sector energy management platform, system integrators can deliver comprehensive commercial energy solutions for increased ROI. Flexible, Cost-Effective Rapid Shutdown Solutions - SunSpec Rapid Shutdown Certified - Plug-and-Play Solution for module-level shutdown. SMA's SunSpec certified rapid shutdown solution combines a powerline signal transmitted by the Sunny Tripower CORE1 inverter with compatible module-level devices to deliver the simplest, most reliable module-level shutdown solution for complying with NEC 690.12 Rapid Shutdown of PV Systems on Buildings. UL 3741 PV Hazard Control listed - Safety and Code Compliance without module-level shutdown - Sunny Tripower CORE1 are the first inverters listed to standard UL 3741 PV Hazard Control for NEC 690.12 compliance. This listing eliminates the need for module-level shutdown devices when CORE1 inverters are installed with co-listed array mounting systems - offering cost savings, faster installation and improved reliability versus traditional module-level shutdown solutions.

Features

• Fully Integrated and Flexible - Innovative design requires no additional racking for rooftop installation. Integrated DC and AC disconnects and over-voltage protection. 12 direct string inputs for reduced labor and material costs. Multiple power ratings for small to large scale commercial PV installations. Six MPP trackers for flexible stringing and maximum power production. OptiTrac™ Global Peak shade tolerant MPP tracking
• Increased power, flexibility - Six MPP trackers for flexible stringing and maximum power production, ShadeFix. SMA's proprietary shade management solution, optimizes at the string level. Intelligent string monitoring to pinpoint array performance issues
• Enhanced Safety and Reliability - Integrated SunSpec PLC signal for module-level rapid shutdown compliance to 2017 NEC. Next-gen DC AFCI arc-fault protection certified to new Standard UL 1699B
• Smart monitoring, control, service - I-V curve diagnostic function to visualize and document. PV string electrical characteristics. Increased ROI with SMA ennexOS cross sector energy management platform. SMA Smart Connected proactive O&M solution reduces time spent diagnosing and servicing in the field
• Faster installation
• Rapid shutdown compliance - flexible solutions for commercial rooftop systems
• SMA ShadeFix - optimized power production at reduced cost and complexity
• I-V curve function and intelligent string monitoring - advanced diagnostic tools to maintain optimal system performance
• Industry leading service and support
•


Specifications

• Here are the specifications for the Grid-Tied, Free-Standing Inverter:

  • Dimensions:

    • Width: 24.4 in
    • Height: 28.8 in
    • Depth: 22.4 in

  • Electrical Specifications:

    • Maximum Array Power: 75,000 Wp STC (Input DC)
    • Maximum System Voltage (Vmax): 1000 V (Input DC)
    • Rated MPP Voltage Range: 500-800 V (Input DC)
    • MPPT Operating Voltage Range: 150-1000 V (Input DC)
    • Minimum DC Voltage/Start Voltage: 150/188 V (Input DC)
    • MPP Trackers/Strings Per MPP Input: 6/2 (Input DC)
    • Maximum Usable Operating Input Current/Per MPP Tracker: 120/20 A (Input DC)
    • Maximum Short-Circuit Current Per MPPT/String Input: 32/30 A (Input DC)

  • AC Output:

    • AC Nominal Power: 50,000 W (Output AC)
    • Maximum Apparent Power: 53,000 VA (Output AC)
    • Output Phases/Line Connection: 3/3- (N)-PE (Output AC)
    • Nominal AC Voltage: 480/277 V WYE (Output AC)
    • AC Voltage Range: 244-305 V (Output AC)
    • Maximum Output Current: 64 A (Output AC)
    • Rated Grid Frequency: 60 Hz (Output AC)
    • Grid Frequency/Range: 50 Hz, 60 Hz/-6 Hz to 6 Hz (Output AC)
    • Power Factor at Rated Power/Adjustable Displacement: 1/0.0 Leading-0.0 Lagging (Output AC)
    • Total Harmonic Distortion (THD): <3% (Output AC)

  • Efficiency & Protection:

    • CEC Efficiency: 97.5%
    • Protection Class/Overvoltage Category: I/IV
    • Load Rated DC Disconnect: Yes
    • Load Rated AC Disconnect: Yes
    • Ground Fault Monitoring: Yes
    • DC AFCI Arc-Fault Protection: Yes
    • DC Reverse Polarity Protection: Yes
    • AC Short-Circuit Protection: Yes

  • Environmental Specifications:

    • Operating Temperature: -25 to 60 °C
    • Storage Temperature: -40 to 70 °C
    • Humidity: 100% Non-Condensing Maximum Permissible

  • Mounting & Installation:

    • Mounting Type: Free-Standing with Included Mounting Feet
    • DC Connection: Amphenol UTX PV or H4Plus Connectors
    • AC Connection: Screw Terminals (4 AWG to 4/0 AWG CU/AL)

  • Communications & Features:

    • Network Interfaces: Ethernet/WLAN (2 Ports/Yes/No)
    • Data Protocols: SMA Modbus/SunSpec IEEE 1547 Modbus/Webconnect (Yes/Yes/Yes)
    • Intelligent String Performance Monitoring: Yes
    • I-V curve Diagnostic Function: Yes
    • Integrated Plant Control/Q on Demand 24/7: Yes/Yes
    • SMA Smart Connected (Proactive Monitoring and Service Support): Yes

  • Standards:

    • UL 1741, UL 1699B Ed. 1, UL 1998, CSA 22.2 107-1
    • PV Rapid Shutdown System Equipment, UL 3741, IEEE 1547-2018
    • UL 1741 SA/SB - CA Rule 21, HECO SRD V2.0, L/HFRT, L/HVRT

  • Warranty: 10 Years

  • Weight: 185 lb
