Seaward PV150 Plus Solarlink PV Complete Solar Panel Installation Testing Combo Kit

The Seaward PV150 Solar Installation Tester allows electrical safety and performance verification of photovoltaic installations in a safe and easy-to-use device.The PV150 kit features a safe test connection to safely test energised arrays. The unit can also wirelessly capture and record real time irradiance, ambient temperature and PV module temperature measurements from the Solar Survey 200R.Thorne & Derrick distribute the most extensive range of Electrical Safety Equipment, including electrical safety testing equipment from Seaward to ensure safe working and protection against electrocution during the installation, jointing, terminating and testing of medium/high voltage power cables and electrical equipment including switchgear and transformers. Seaward focus on safety with their portfolio of portable appliance testers, solar PV testers and medical device test equipment.

Features

• Ground (earth) continuity measurement with test lead null for long test-leads
• PV string open circuit voltage measurement up to 1000V DC with polarity
• PV string short circuit current measurement up to 15A
• PV array insulation test at 250/500/1000 v
• Tests individual PV modules
• Memory for up to 200 records and USB download to PC (CSV file)
• 2 x MC4 test lead
• 2 x Combiner box test probes and detachable alligator clips (MC4)
• 2 x Test Leads, with test probes and detachable alligator clips (4 mm)
• Solar Survey 200R irradiance meter and temperature


Specifications

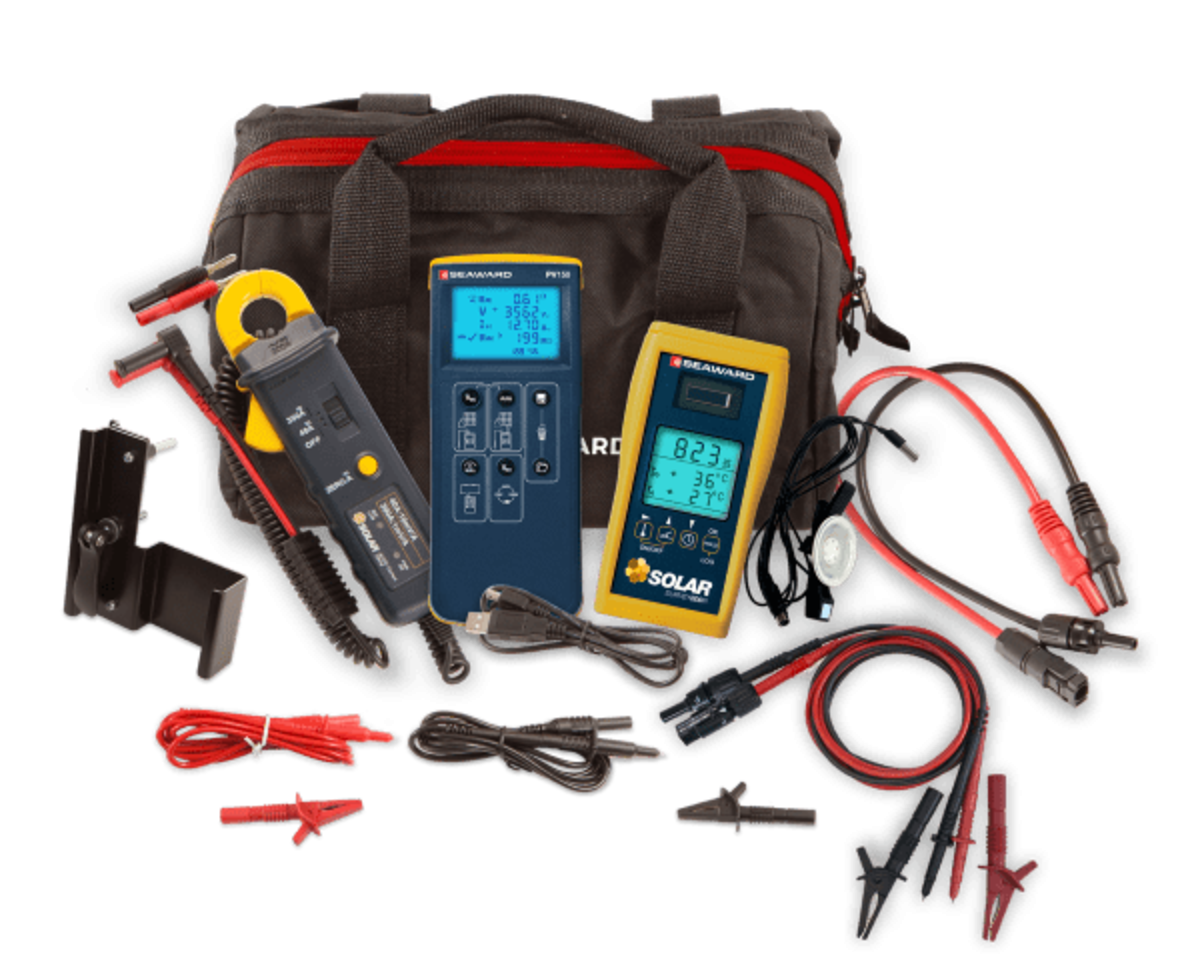

• Includes:

  • Seaward Solar Installation PV150 Instrument
  • 2 x MC4 Test Lead Adaptors
  • 2 x Combiner Box Test Probes & Detachable Alligator Clips (MC4)
  • 2 x Test Leads with Test Probes & Detachable Alligator Clips (4 mm)
  • AC/DC Current Clamp
  • Solar Survey 200R Irradiance Meter & Temperature Probe
  • Solar Survey 200R Mounting Bracket
  • Rugged Carry Bag
  • Quick Start Guide
  • UKAS Calibration Certificate (PV150)
  • SolarCert PC Software

• Display Range: 0-1000 VDC

• Measuring Range: 5-1000 VDC

• Resolution: 0.1 VDC

• Accuracy: +/-0.5% + 2 Digits

• Dimensions:

  • Width: 10.7 cm
  • Length: 26.4 cm
  • Depth: 5.8 cm

• Battery Type: 6 x 1.5 V AA Cells

• Battery Life: >1000 Test Sequences
