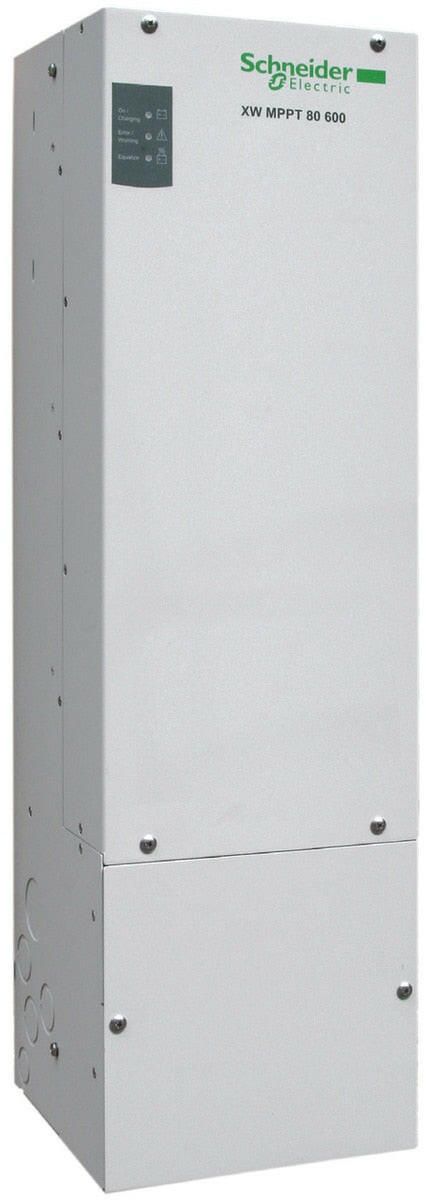

Schneider Electric XW-MPPT80-600 MPPT Charge Controller

The MPPT 80 600 Solar Charge Controller offers an industry-first set of integration features and top performance that allows for large PV array systems to be easily installed and connected to the battery bank at the lowest overall cost. Installing one MPPT 80 600 is faster than installing multiple smaller charge controllers and lowers overall costs further by utilizing fewer PV strings, smaller wiring and conduit, and by eliminating the need for PV combiner boxes and DC circuit breakers. Longer distances from array site to battery bank are also easier to accommodate than with smaller charge controllers. Advanced Fast Sweep™ MPPT charging technology helps harvest the most energy available from the PV array, even in partial shade conditions. 80 A of battery charge current allows for the connection of PV arrays rated up to 600 V STC (2560 W for 24 V systems, 4800 W for 48 V systems).

Features

• Easy to install - fewer string wires, smaller AWG Wire, No need for combiner box or GFI circuit breaker
• Flexible - Available remote monitoring and configuration
• Compatible with any brand of PV Module, any grounding method
• Stand-alone application or full integration with Conext XW Inverter charger system
• High return on investment - Installs faster with fewer costly components
• Improve battery life with selectable multi-stage temperature compensated charging
• Harvest more energy with Shade Tolerant Fast Sweep MPPT Algorithm


Specifications

• Series/Model: MPPT 80 600
• Nominal Battery Voltage: 24-48 VDC
• Battery Voltage: 16-67 VDC
• Maximum PV Array Open Circuit Voltage: 600 V
• Maximum Array Short Circuit Current: 28 A
• Maximum Output Power Rating: 4800 W
• Charging Regulation:
  • Three-Stage (Bulk, Absorption, Float) Plus Manual Equalization
  • Two-Stage (Bulk, Absorption) Plus Manual Equalization
• Supported Battery Types: Flooded, GEL, AGM, Custom
• Maximum Power Conversion Efficiency:
  • 95% (Nominal 48 V)
  • 92% (Nominal 24 V)
• Power Consumption: <1 W Night Time
• Battery Temperature Sensor: Included
• Auxiliary Output: Dry Contact Switching up to 60 VDC, 30 VAC, 8 A
• Enclosure Material: Indoor, Ventilated, Sheet Metal Chassis
• Enclosure Rating: IP20
• Ambient Temperature: -4 to 149 deg F
• Storage Temperature: -40 to 85 deg F
• Operating Altitude: Sea Level to 2000 m (6562 ft)
• System Network & Remote Monitoring: With Insight Energy Management
• MPPT Voltage Range: 195-510 VDC
• PV Array Operating Voltage: 195-550 V
• Maximum Input Current: 23 A
• Dimensions: 30 in Height x 8.6 in Width x 8.6 in Depth
• Standards: CSA Certified (UL1741, CSA 107.1) & CE Marked for the Low-Voltage Directive (EN50178)
• Weight: 13.5 kg
• Warranty: 5 Years


Documents

• Specification Sheet
