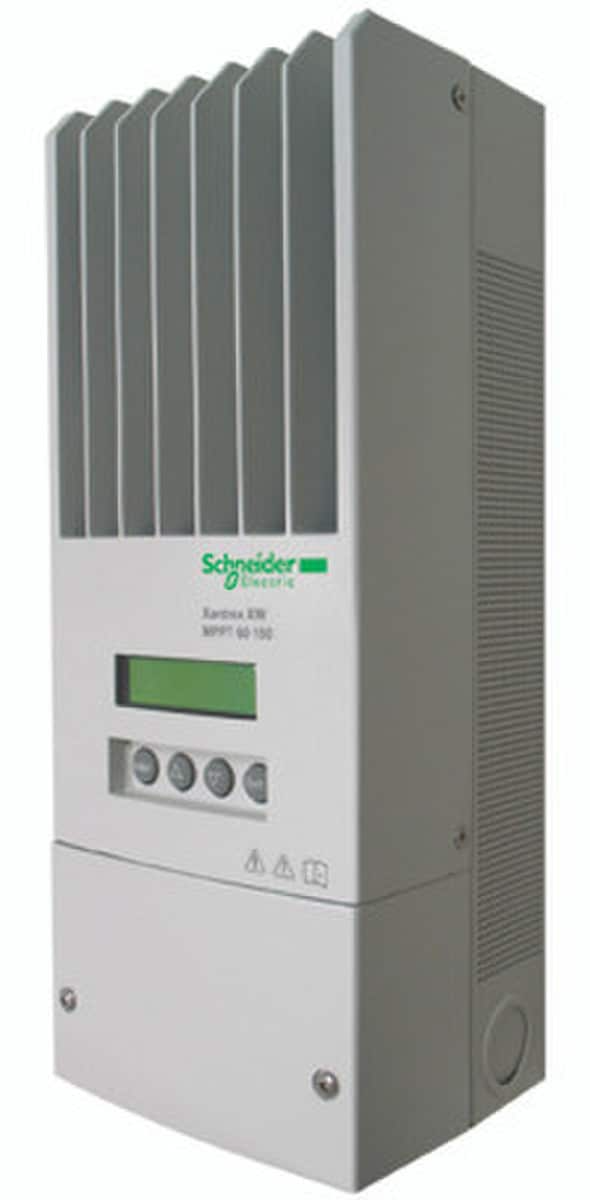

Schneider Electric XW-MPPT60-150 MPPT Charge Controller

The MPPT 60 150 is a photovoltaic (PV) charge controller that tracks the maximum power point of a PV array to deliver the maximum available current for charging batteries. When charging, the MPPT 60 150 regulates battery voltage and output current based on the amount of energy available from the PV array and state-of-charge of the battery.

Features

• Stand-alone application or full integration with Context XW and Context SW Inverter charger system
• Compatible with any brand of PV Module
• Available remote monitoring and configuration
• Maximum Power Point Tracking (MPPT) algorithm continually seeks the maximum power available from the PV array
• Improve battery life with selectable multi-stage temperature compensated charging
• Five-year standard warranty
• Configurable auxiliary output
• LCD screen with face plate buttons for configuration and system monitoring
• Integrated PV ground fault protection for negative grounded arrays


Specifications

• Series/Model: MPPT 60 150
• Nominal Battery Voltage: 12, 24, 36, 48, 60 V
• Battery Voltage: 0-80 VDC
• Minimum PV Operating Voltage: Battery Voltage + 5 V
• Maximum PV Operating Voltage: 140 V
• Maximum PV Array Open Circuit Voltage: 150 V (including temperature correction factor)
• Maximum Array Short Circuit Current: 60 A (48 A at STC)
• Maximum PV Array Rating: 5250 W
• Maximum Charge Current Rating: 60 A (For all Battery Voltages Except 60 V)
• Wire Size: 10-2.5 mm² / 6-14 AWG
• Maximum Output Power Rating: 3500 W
• Charging Regulation: Three-Stage (Bulk, Absorption, Float) Plus Manual Equalization, Two-Stage (Bulk, Absorption) Plus Manual Equalization
• Supported Battery Types: Flooded, GEL, AGM, Custom
• Maximum Power Conversion Efficiency:
  • 93% (Nominal 12 V)
  • 96% (Nominal 24 V)
  • 97% (Nominal 36 V)
  • 98% (Nominal 48 V)
  • 99% (Nominal 60 V)
• Power Consumption: 2.5 W at night time
• Battery Temperature Sensor: Included
• Auxiliary Output: 5-13 V, up to 200 mA
• Enclosure Material: Indoor, Ventilated, Sheet Metal Chassis with 2.2 and 2.8 cm (7/8 and 1 in) Knockouts and Aluminum Heat-Sink
• Enclosure Rating: IP20
• Device Mounting: Vertical/Wall
• Ambient Temperature: -4 to 113 °F
• Storage Temperature: -40 to 185 °F (Full Power, Power Derating Above 45 °C)
• Operating Altitude: Sea Level to 2000 m (6562 ft)
• System Network & Remote Monitoring: With Insight Energy Management
• Display Type: LCD, 2 Lines, 16 Digits
• Dimensions: 14.5 in Height x 5.8 in Width x 5.5 in Depth
• Standards:
  • CSA Certified (UL1741, CSA 107.1)
  • CE Marked for the Low-Voltage Directive (EN50178)
  • EMC FCC & Industry Canada (Class B)
  • CE Marked for the EMC Directive (EN61000-6-1, -6-3)
  • C-Tick Compliant
• Weight: 4.8 kg
• Warranty: 5 Years
• Application: Backup Power Residential Grid-Tie Solar with Backup Power, Off-Grid Solar, Community Electrification Self-Consumption
