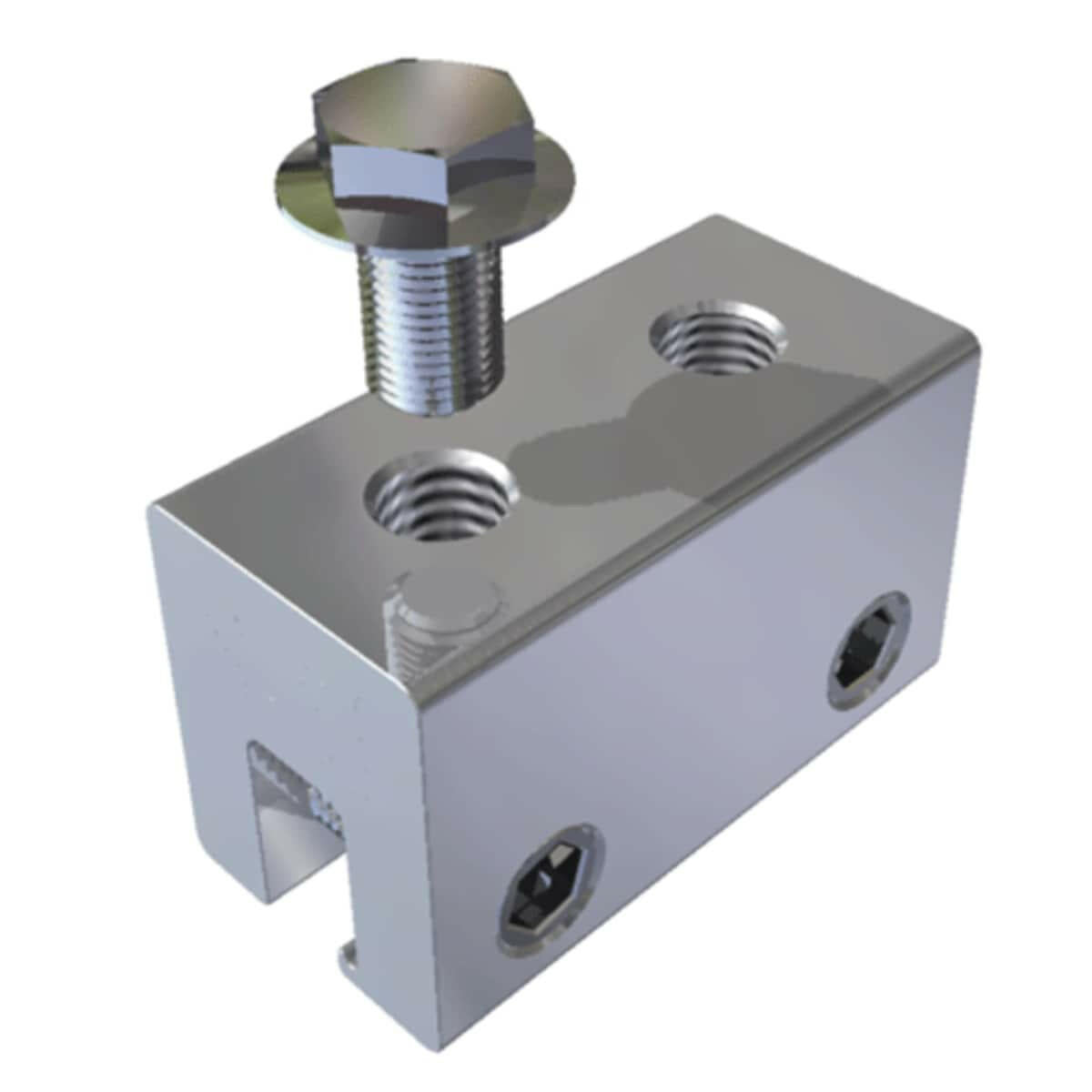

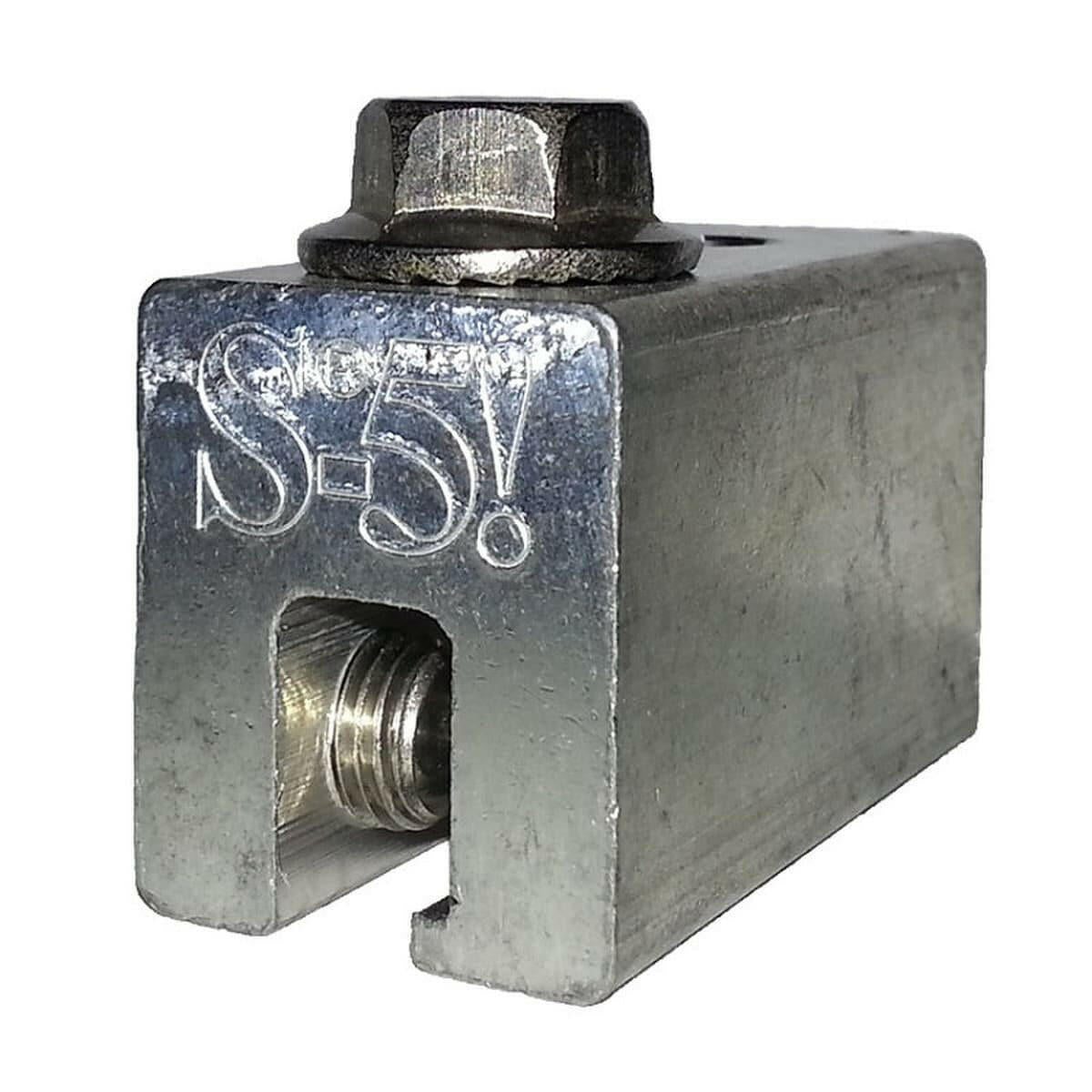

S-5! S-5-E Metal Roof Mounting Clamp

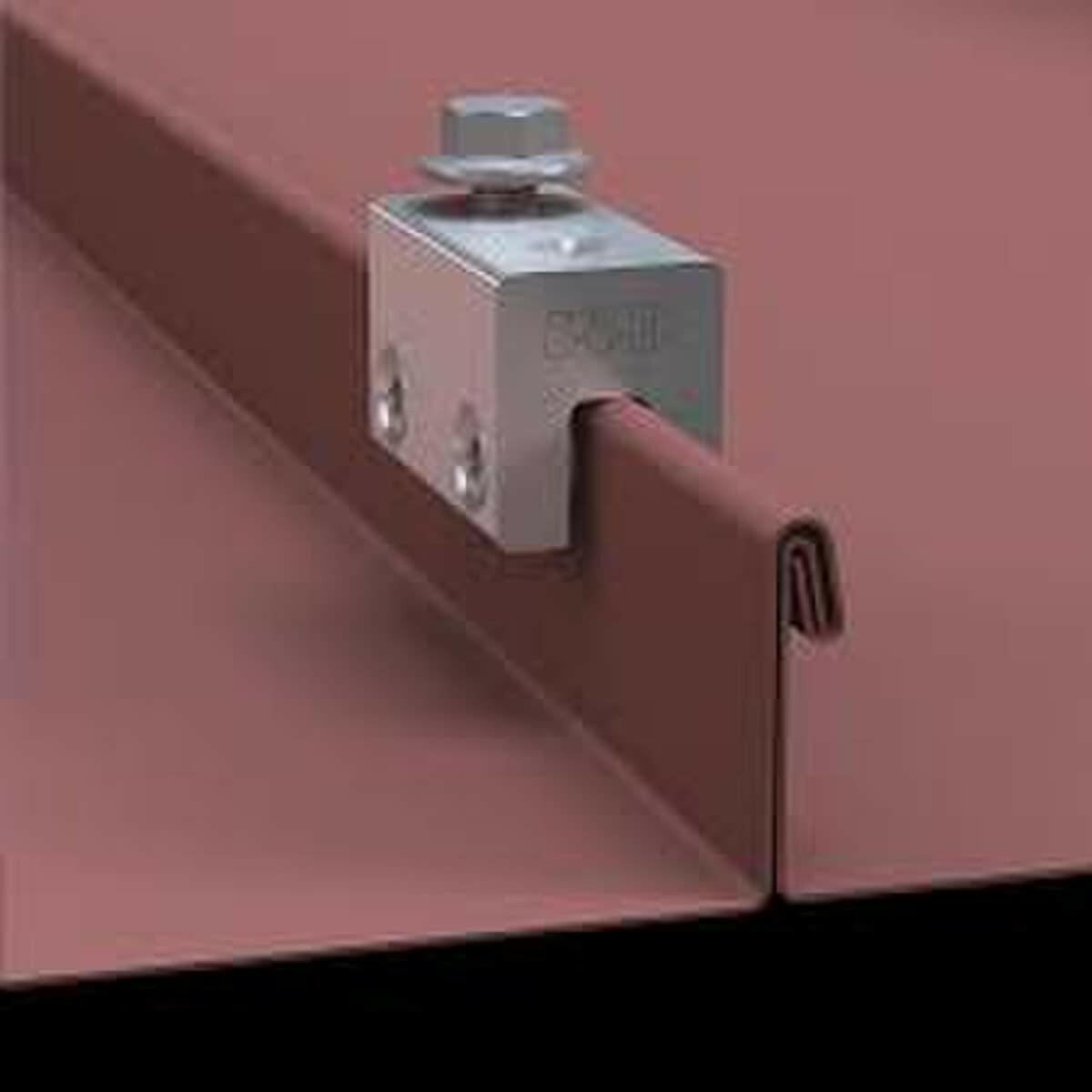

The S-5-E clamp is designed specially for double-folded standing seam roof profiles having the appropriate dimension. This clamp is also the one recommended for Butler's MR24.Although a bit smaller and less expensive than the S-5-U, for these profiles, the S-5-E is just as strong. The S-5-E is perfect for S-5! snow retention products and other heavy-duty applications. All included hardware is stainless steel. The S-5-E and S-5-E Mini clamps have been tested for load-to-failure results on a variety of double-folded standing seam roofs, from leading manufacturers of panels and panel-forming machines. The independent lab test reports found on our website at www.S-5.com prove that S-5!® holding strength is unmatched in the industry.

Features

• Easy installation, and high compatibility
• Thanks to S-5!'s patented round-point setscrews, the S-5-E clamps do not pierce metal roof paneling, thereby protecting roof coatings and weather-tightness warranties


Specifications

• Size: E
• Suitable For Use With: Butlers MR-24 & Other Double Folded Standing Seam Roofs
• Material: Aluminum
• Standards: UL Listed
• Includes:
  • M8-1.25 x 16 mm Hex Flange Bolt
  • (2) M8-1.25 Threaded Hole
  • (2) 3/8-24 x 0.8 in Round-Point Setscrews
• Dimensions: 1 in Height x 2 in Width x 1.5 in Depth
• Warranty: 25 Years Limited
