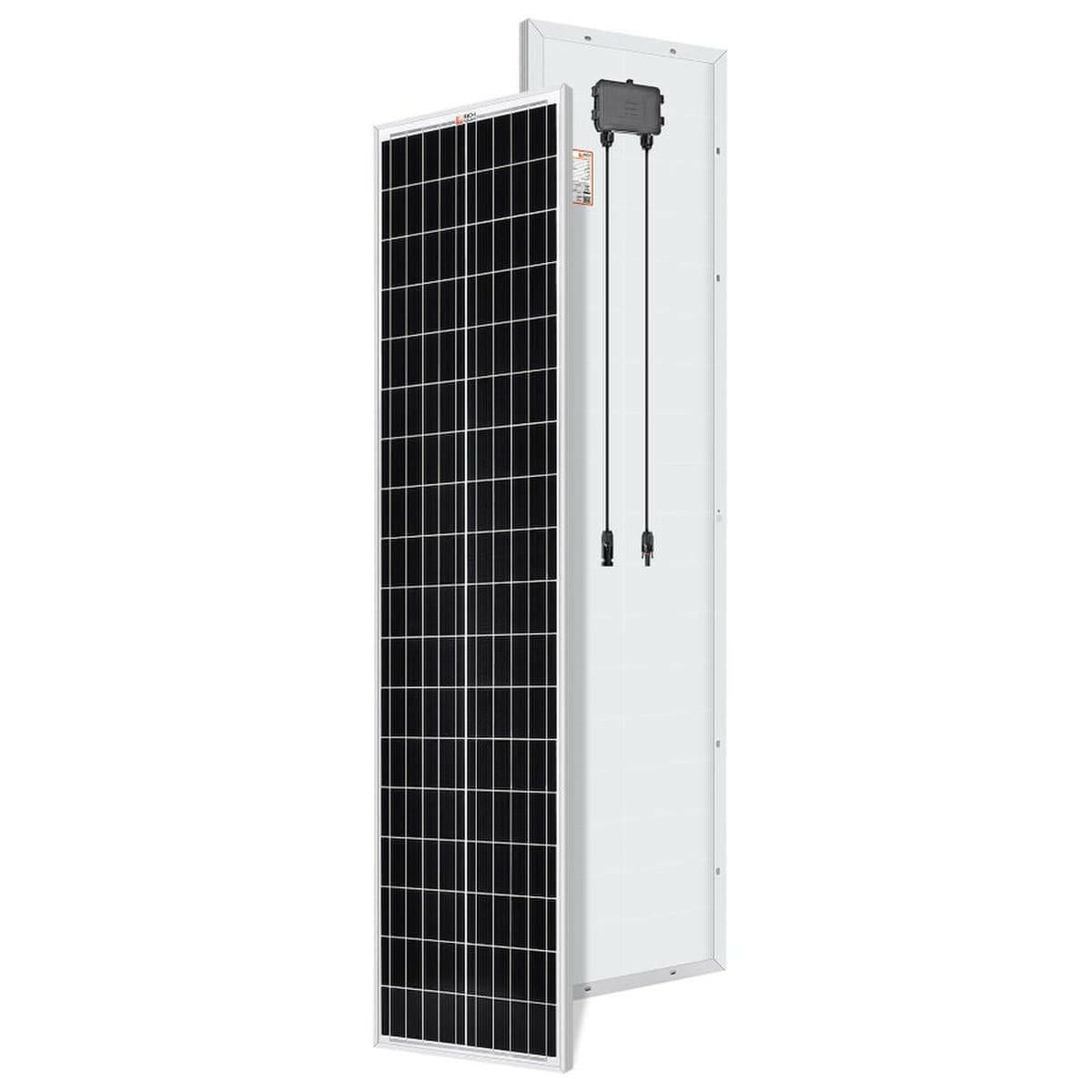

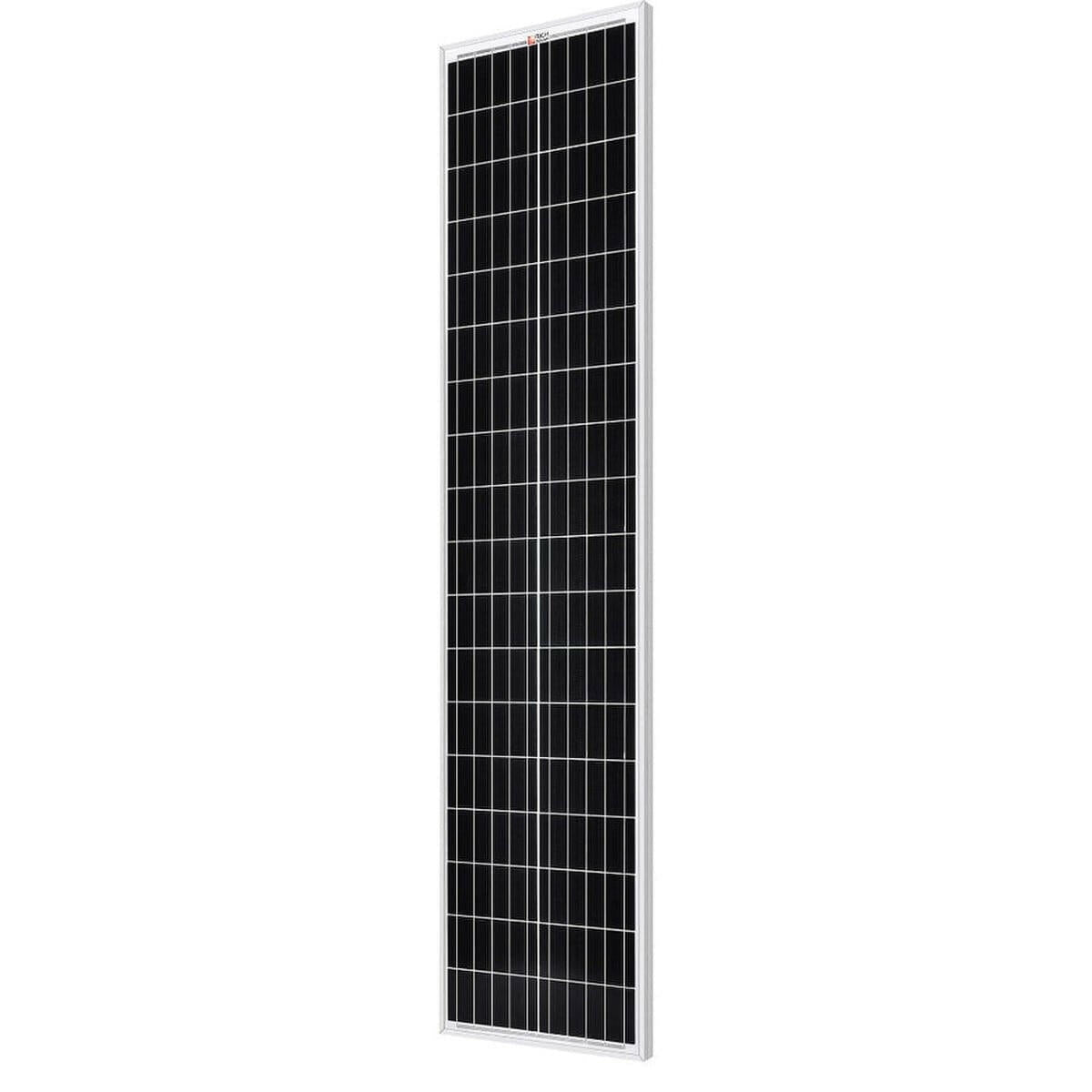

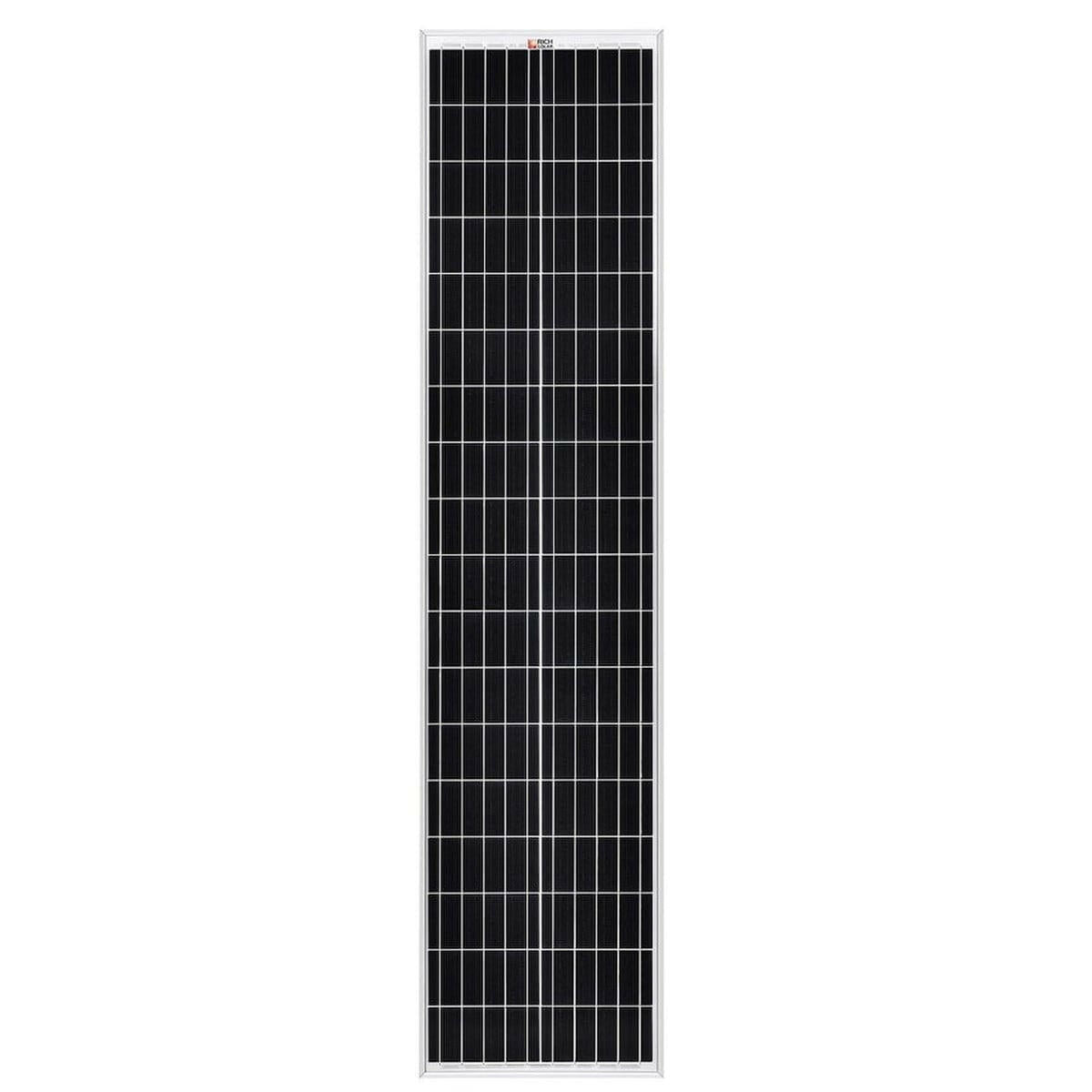

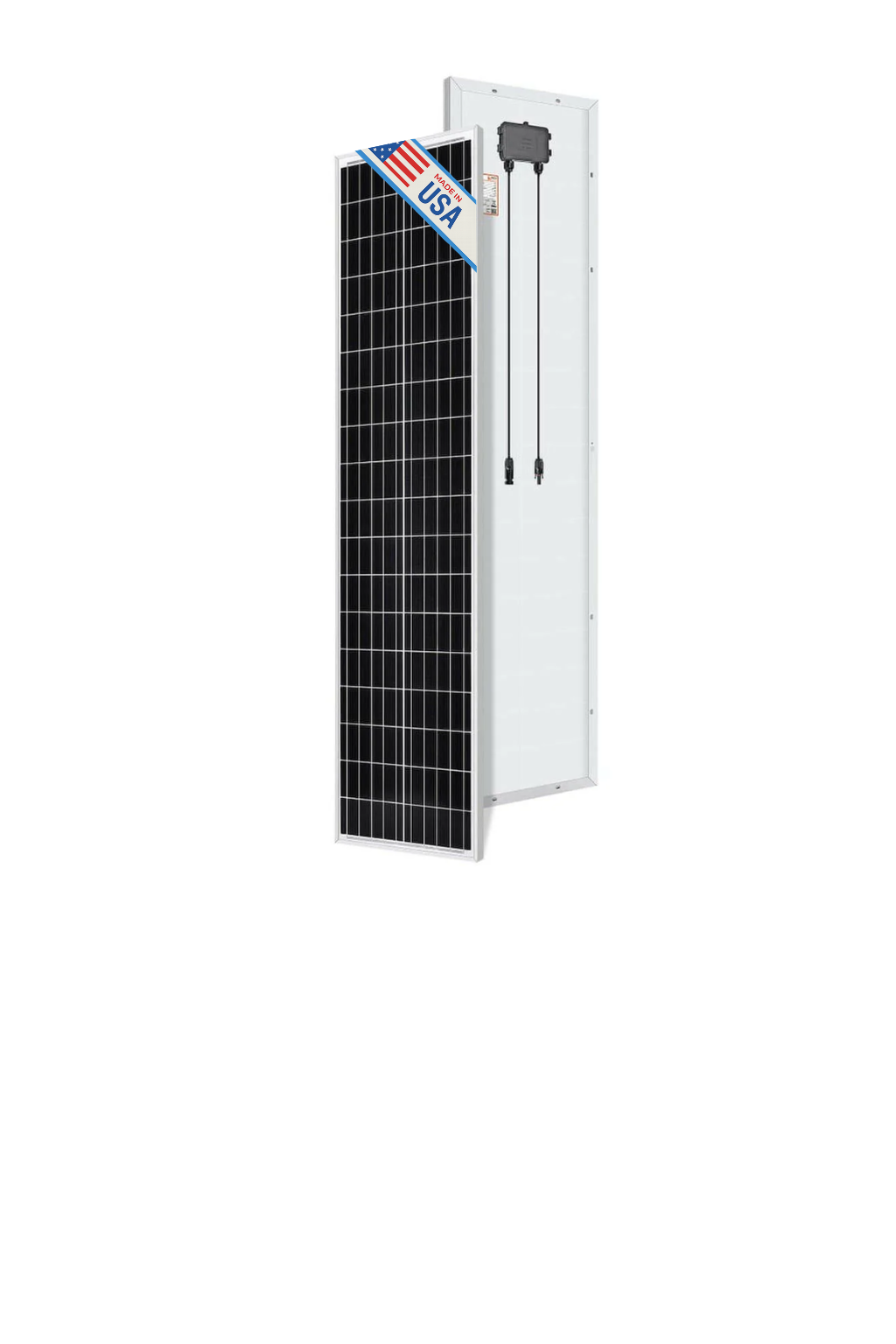

Rich Solar Mega 100 Slim Solar Panel

Been looking for the best RV off-grid solar system for you? This MEGA 100 Slim 100 Watt 12V solar panel will help start your camper solar setup. Get this to start your off grid solar trailer adventure today.

Features

• 12V Off-grid solar panel
• 0~+5W Guaranteed positive power output
• IP 65 or IP 67 Rated
• Built with strong tempered glass and aluminum frame
• Certified to withstand challenging environmental conditions
• Excellent low light performance on cloudy days, mornings and evenings
• Easy installation and handling for various applications
• Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts
• Compatible with on-grid and off-grid inverters

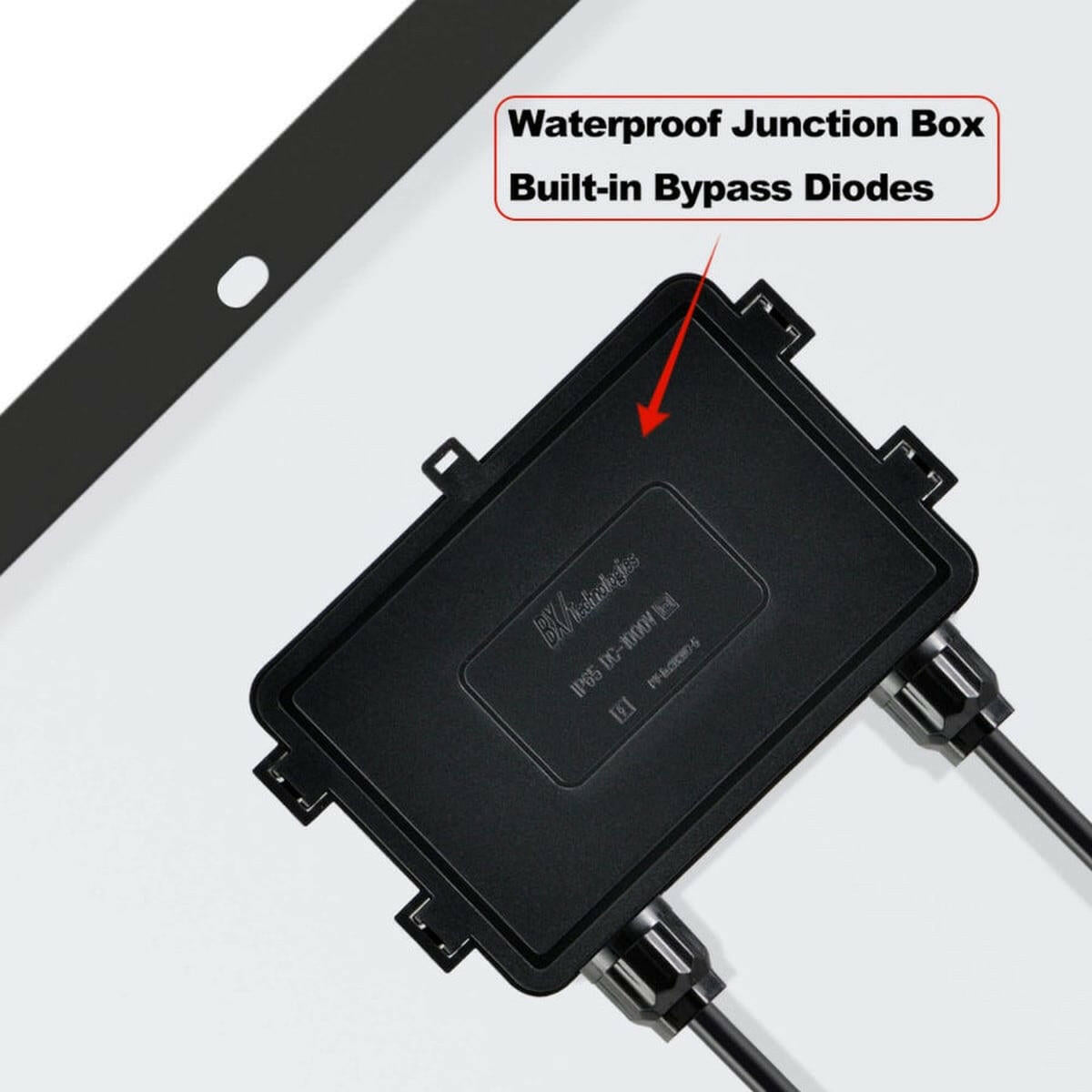

• Waterproof junction box
• Built-in bypass modes

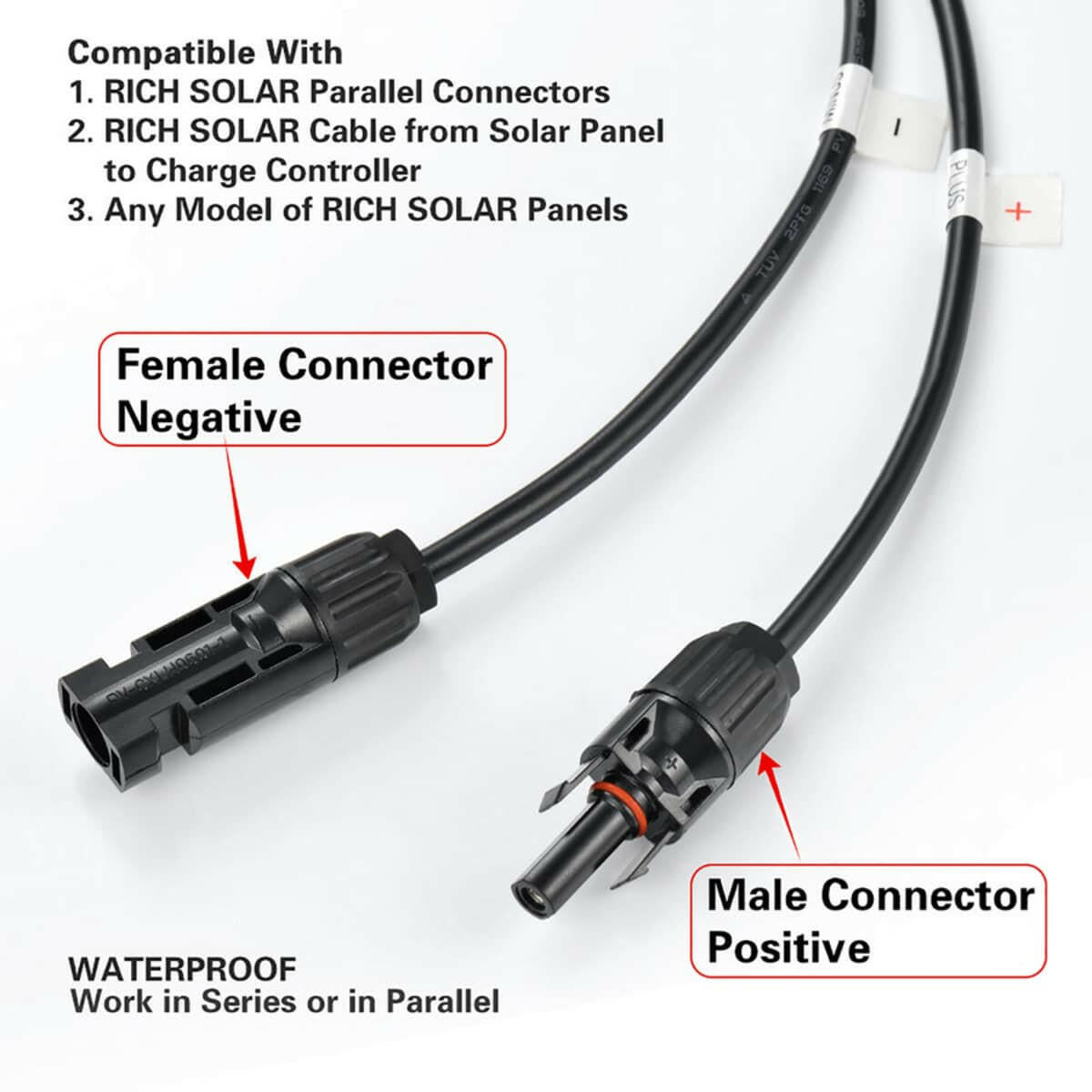

• Compatible with Rich Solar parallel connectors, Rich Solar wires from solar panel to charge controller, any model of Rich Solar panels
• Male connector positive
• Waterproof - Work in series or in parallel

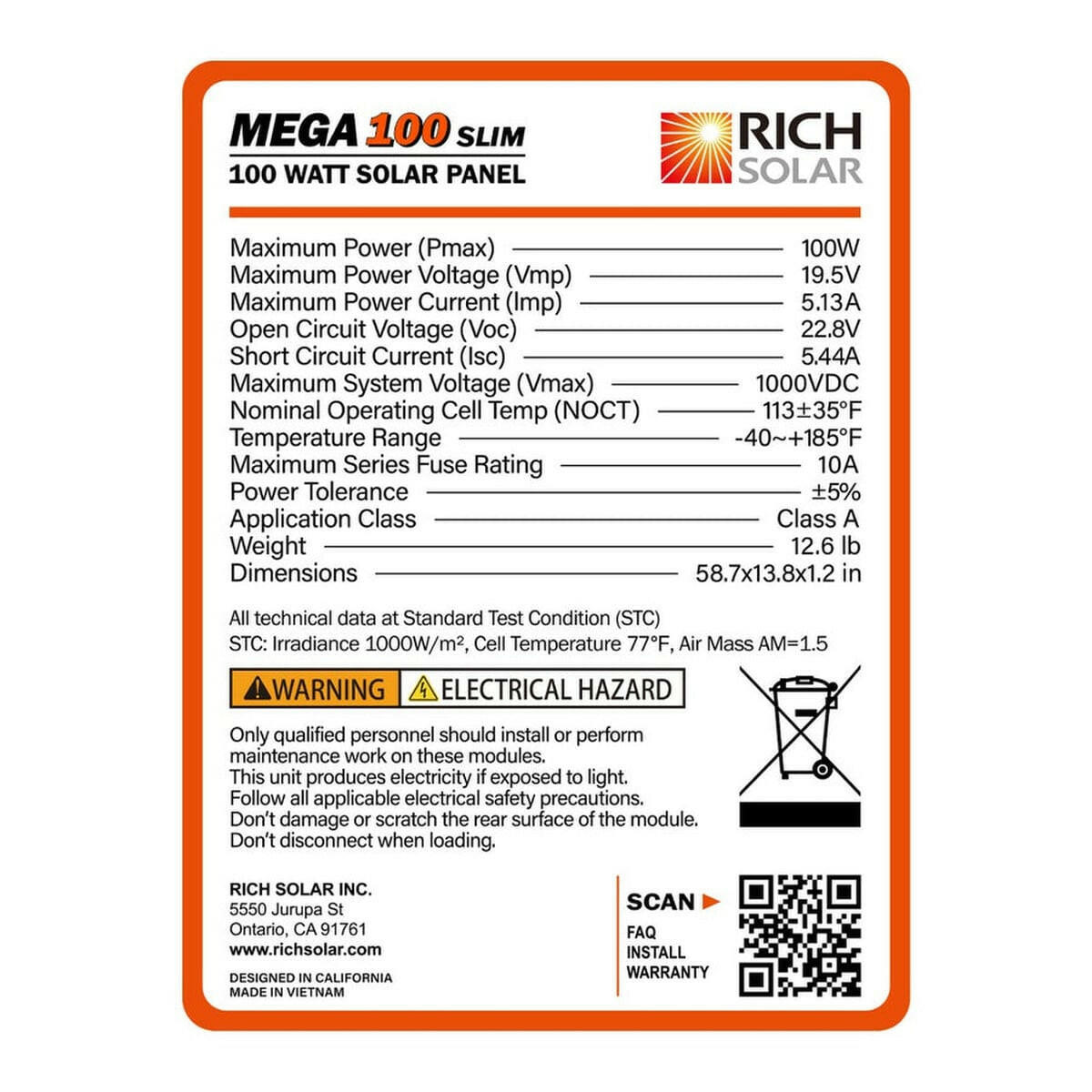

Specifications

• Series/Model: Mega™ SLIM
• Length: 58.7 in
• Width: 13.8 in
• Height: 1.2 in
• Cells Technology: Monocrystalline (Mono)
• Maximum Power (Pmax): 100 W STC
• Maximum Power Voltage (Vmp): 19.5 V STC
• Maximum Power Current (Imp): 5.13 A STC
• Open-Circuit Voltage (VOC): 22.8 V STC
• Short-Circuit Current (Isc): 5.44 A STC
• Maximum System Voltage: 1000 VDC
• Maximum Series Fuse Rating: 10 A
• Frame Material: Anodized Aluminum Alloy
• Front Glass: High Transmission, Anti-Reflection Coated Tempered Glass
• Frame Color: Silver

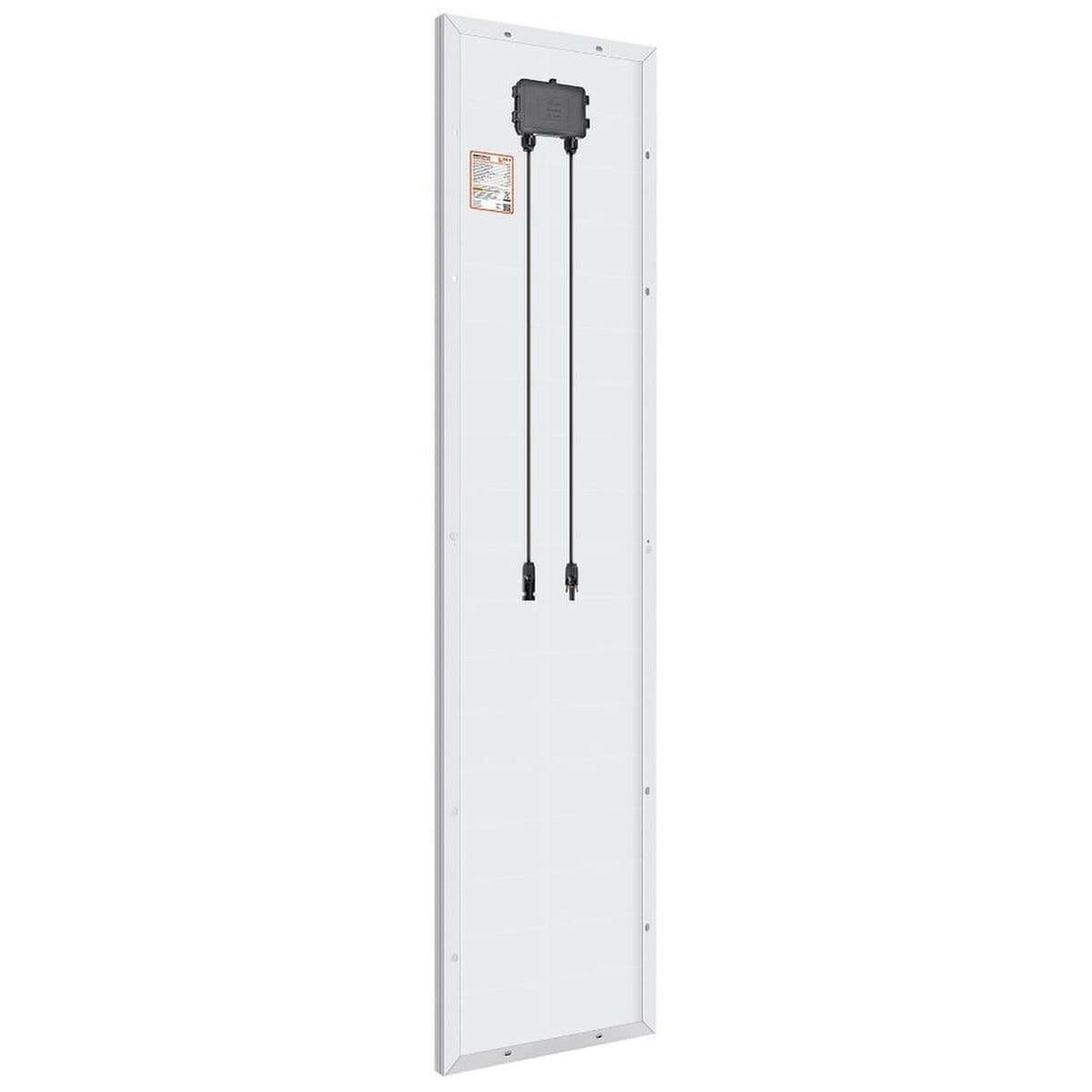

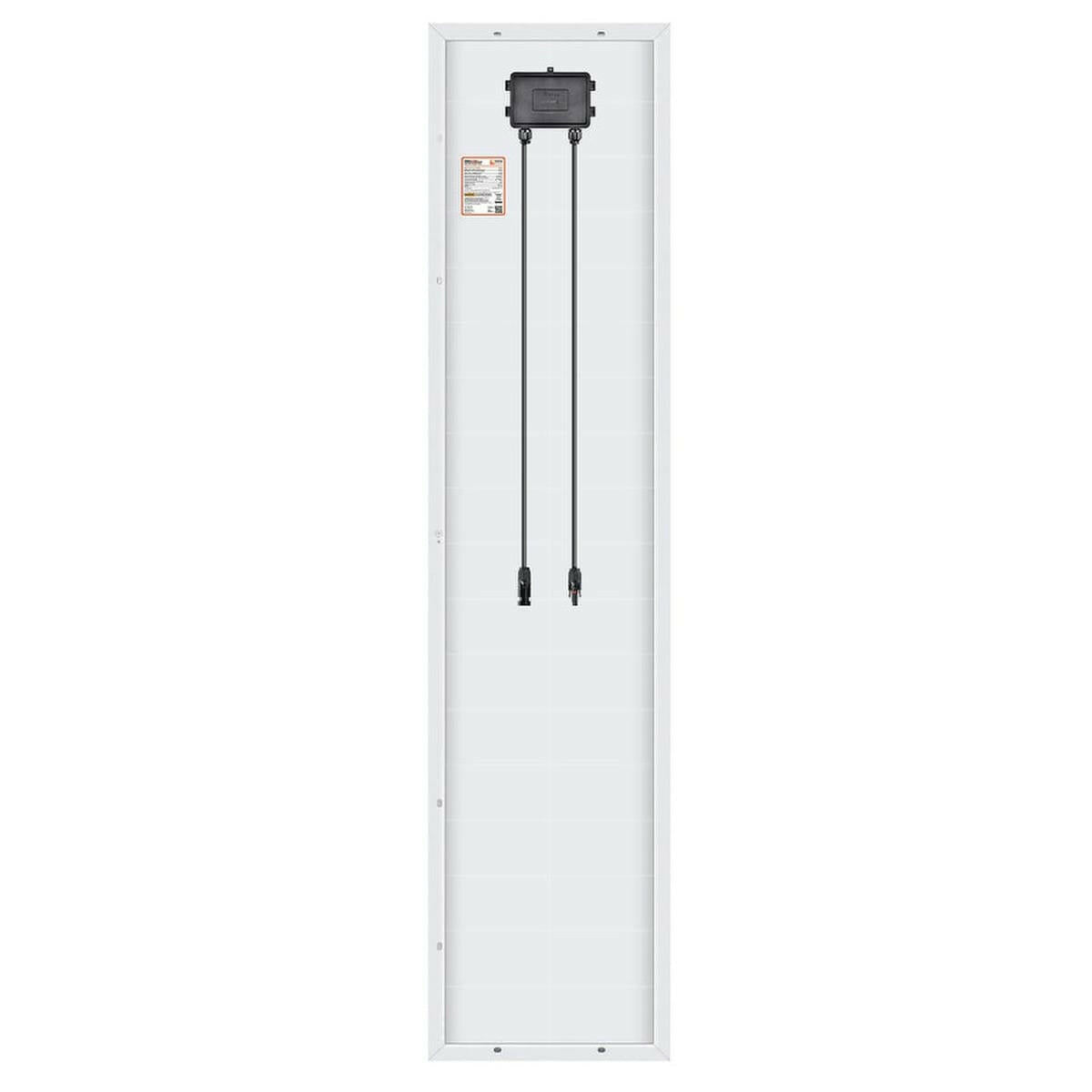

• Backsheet Color: White
• Irradiance: 1000 W/m² STC
• Operating Temperature: -40 to 185°F
• Cell Temperature: 77°F STC
• Nominal Operating Cell Temperature: 113°F +/-35%
• Air Mass (AM): 1.5 STC
• Junction Box: IP65 or IP67 Rated
• Power Output Tolerance: 0-5 W
• Includes: Rich Solar Mega Slim Solar Panel, Panel Leads (Pair): 12 AWG, IP65 Rated Waterproof Junction Box, IP67 Rated Waterproof Solar Connectors
• Standards: TUV, ETL, PV Cycle, MCS, IEC, UL
• Warranty: 25 Years 80% Output Power, 5 Years Materials & Workmanship
• Weight: 12.6 lb
• Application: Best 12V Panel for VAN RVs and Off-Grid


Documents

• Certificate of Compliance
