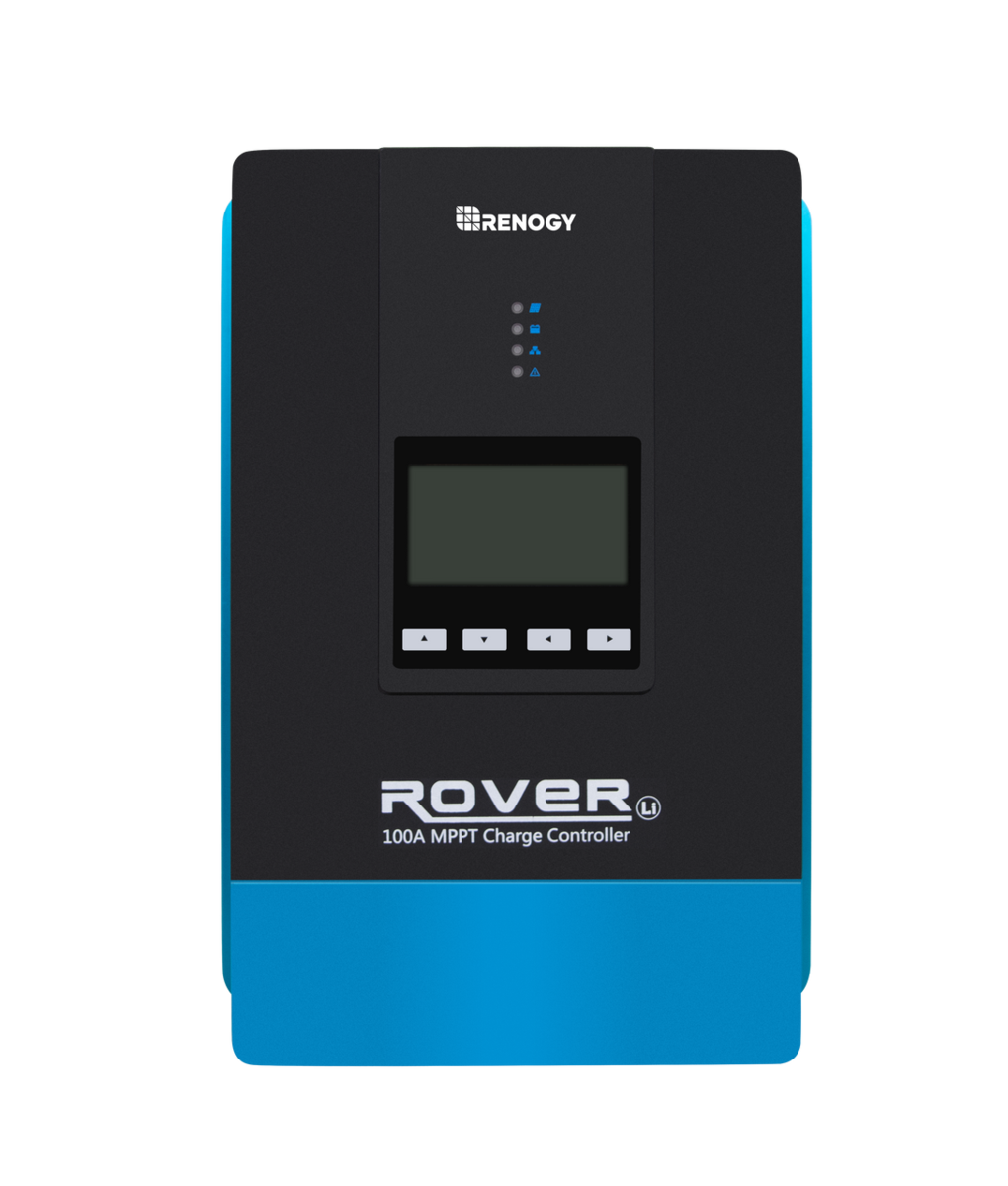

Renogy 12/24/36/48 V Auto Recognition MPPT Solar Charge Controller

Introducing the new 100A Rover MPPT Charge Controller, the largest Rover controller that Renogy has to offer. Capable of supporting up to 1300 watts on 12 volts, 2600 watts on 24 volts, 3900 watts on 36V and 5200 watts on 48V. This off-grid controller was designed for large-scale projects, both mobile and stationary. For even more power, users can utilize a unique feature limited to this Rover and connect two 100A Rover controllers in parallel for a total of 200 amps! This smart charge controller can also conveniently self-diagnose itself in the event of an error and can be remotely controlled through the DC Home app using the Renogy BT-1 Bluetooth Module. By pairing the Rover with the new BT-1 and the DC Home app through Bluetooth, users can easily monitor and adjust their solar system straight from their phones.

Features

• Automatically detects 12v, 24v, 36v and 48v dc system voltages (for non-lithium batteries). Compatible with various deep cycle battery options: agm, sealed, gel, flooded and lithium
• Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
• Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current. LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
• The integrated RS232 port can work with the BT-1 Bluetooth module while the RS485 port can work with the BT-2 Bluetooth module, delivering real-time energy data across the DC Home smart phone app & Renogy one Core

Specifications

• Type: MPPT
• Length: 12 in
• Width: 17.44 in
• Depth: 4.35 in
• Nominal Voltage: 12/24/36/48 V Auto Recognition
• Charge Current: 100 A
• Maximum PV Input Power:
  • 1300 W/12 V
  • 2600 W/24 V
  • 3900 W/36 V
  • 5200 W/48 V
• Maximum PV Input Voltage:
  • 150 VDC (25°C)
  • 140 VDC (-25°C)
• Operating Temperature: -35 to 45°C

Documents

• Specification Sheet
• Warranty Sheet
