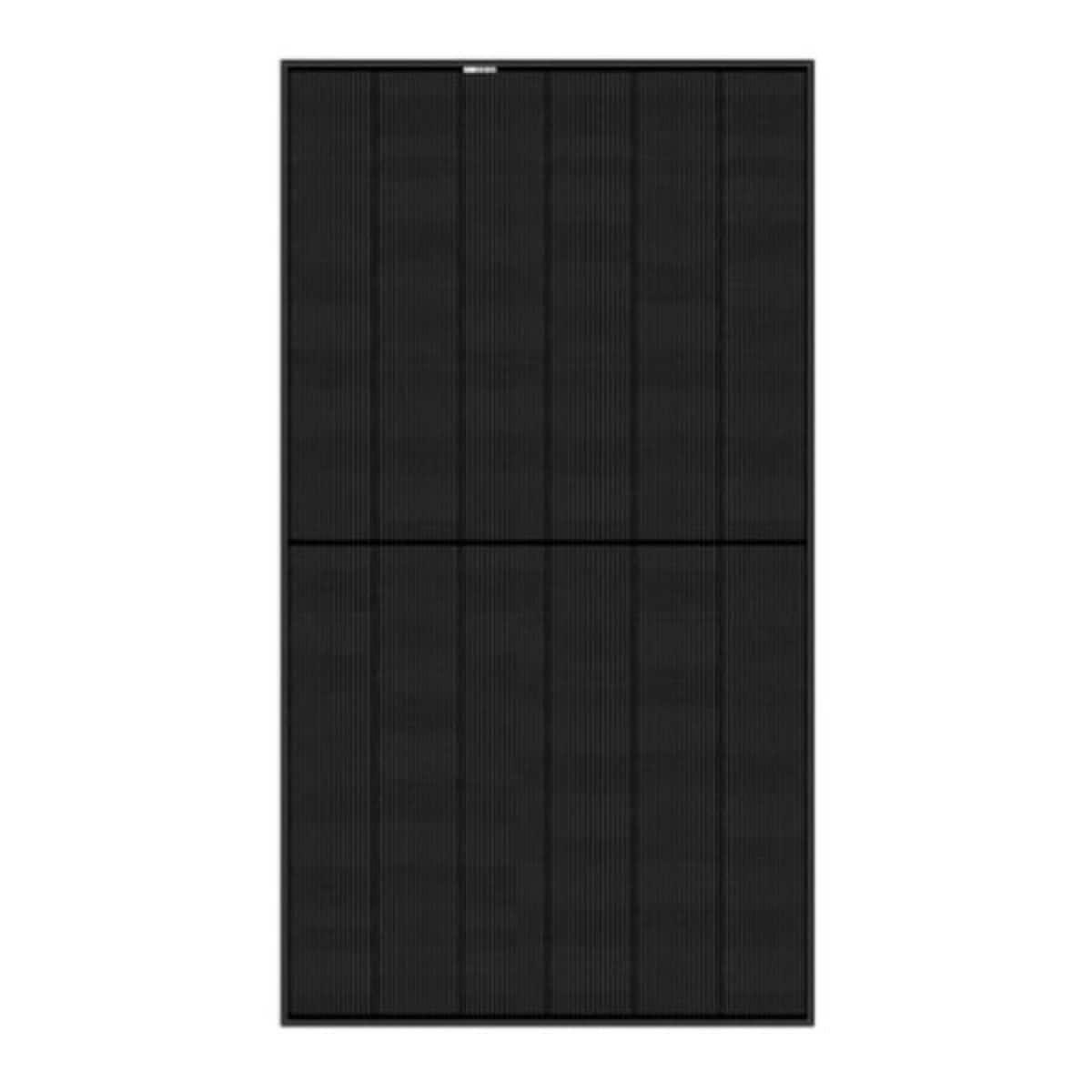

REC Alpha Black REC400AA 400w Mono Solar Panel

The Alpha Black module represents the cutting edge in module performance, efficiency, and aesthetics. Alpha Black modules are assembled in Singapore with an advanced 120-cell heterojunction process, which reduces parasitic losses from cell junctions. With HJT, REC combines the benefits of crystalline silicon solar cells with those of thin film technologies for much higher efficiency and energy yield, even at higher temperatures. The Alpha delivers the world's best power density on a 60-cell module, a key consideration when space is tight - like on any rooftop. With the REC Alpha Series, customers will get over 20 percent more power from the same area and the same number of panels - or, put other way, the same energy output from less space. This reduces the Balance of System (BoS) costs. In addition to better economics, customers can also look forward to an increase in the value of their property: several studies in various countries show that a premium solar installation on the roof is adding value to the property and is a highly desired extra for home-buyers, not least due to the better energy performance rating.

Features

• New Energy Directives - The Alpha's industry-beating energy efficiency will make it far easier for new-build owners to meet Zero Energy performance directives like in the European Union or California, U.S.1 For a 20 kW solar installation at a multi-apartment property, for example, 70 panels with 300 Wp, or an area of 140 m2, would be required. But with the 380 Wp of the REC Alpha Series, the building would only need 50 modules, or roughly 100 m². For rooftop installations with limited available space, in particular on tower buildings in cities, high power solar panels are therefore a key enabler for these building concepts


Specifications

• Series/Model: Alpha Black
• Length: 1821 mm
• Width: 1016 mm
• Height: 30 mm
• Cells Technology: Half-Cut Cell with REC Heterojunction Cell with Lead-Free, Gapless Technology
• Number of Half Cells: 132 (6 x 22)
• Maximum Power (Pmax): 400 W STC/305 W NOCT
• Maximum Power Voltage (Vmp): 42.1 V STC/39.7 V NOCT
• Maximum Power Current (Imp): 9.51 A STC/7.68 A NOCT
• Open-Circuit Voltage (VOC): 48.8 V STC/46 V NOCT
• Short-Circuit Current (Isc): 10.1 A STC/8.16 A NOCT
• Maximum System Voltage: 1000 V
• Maximum Series Fuse Rating: 25 A
• Maximum Reverse Current: 25 A
• Module Efficiency: 20.8%
• Material: Highly Resistant Polyester Polyolefin Construction Backsheet
• Frame Material: Anodized Aluminum
• Front Glass: 3.2 mm Solar Glass with Anti-Reflection Surface Treatment
• Frame Color: Black
• Backsheet Color: Black
• Irradiance: 1000 W/m² STC/800 W/m² NOCT
• Output Cables: Staubli MC4 PV-KBT4/PV-KST4 (4 mm²) in accordance with IEC 62852, IP68 only when connected
• Connector Type: 12 AWG (4 mm²) PV Wire, 43+47 in (1.1 + 1.2 m) Accordance with EN 50618, MC4
• Front Side Maximum Static Loading: 7000 Pa
• Rear Side Maximum Static Loading: -4000 Pa
• Operating Temperature: -40 to 185 deg F
• Cell Temperature: 25 deg C STC
• Ambient Temperature: 20 deg C NOCT
• Temperature Coefficients of Pmax: -0.26 %/deg C
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.24%/deg C
• Temperature Coefficients of Isc: 0.04%/deg C
• Nominal Operating Cell Temperature: 44+/-2 deg C
• Air Mass (AM): 1.5 STC/1.5 NOCT
• Junction Box: 3-Part, 3 Bypass Diodes, IP67 Rated in accordance with IEC 62790
• Power Output Tolerance: 0-5 W
• Power Density: 19.3 W/sq-ft
• Standards: CE, UL, CSA, Cus, DVE, IEC 61215:2016, IEC 61730:2016, UL 61730 (Pending), ISO 14001:2004, ISO 9001:2015, OHSAS 18001:2007, IEC 62941
• Warranty: 20 Years Product, 25 Years Linear Power Output
• Weight: 20.5 kg
