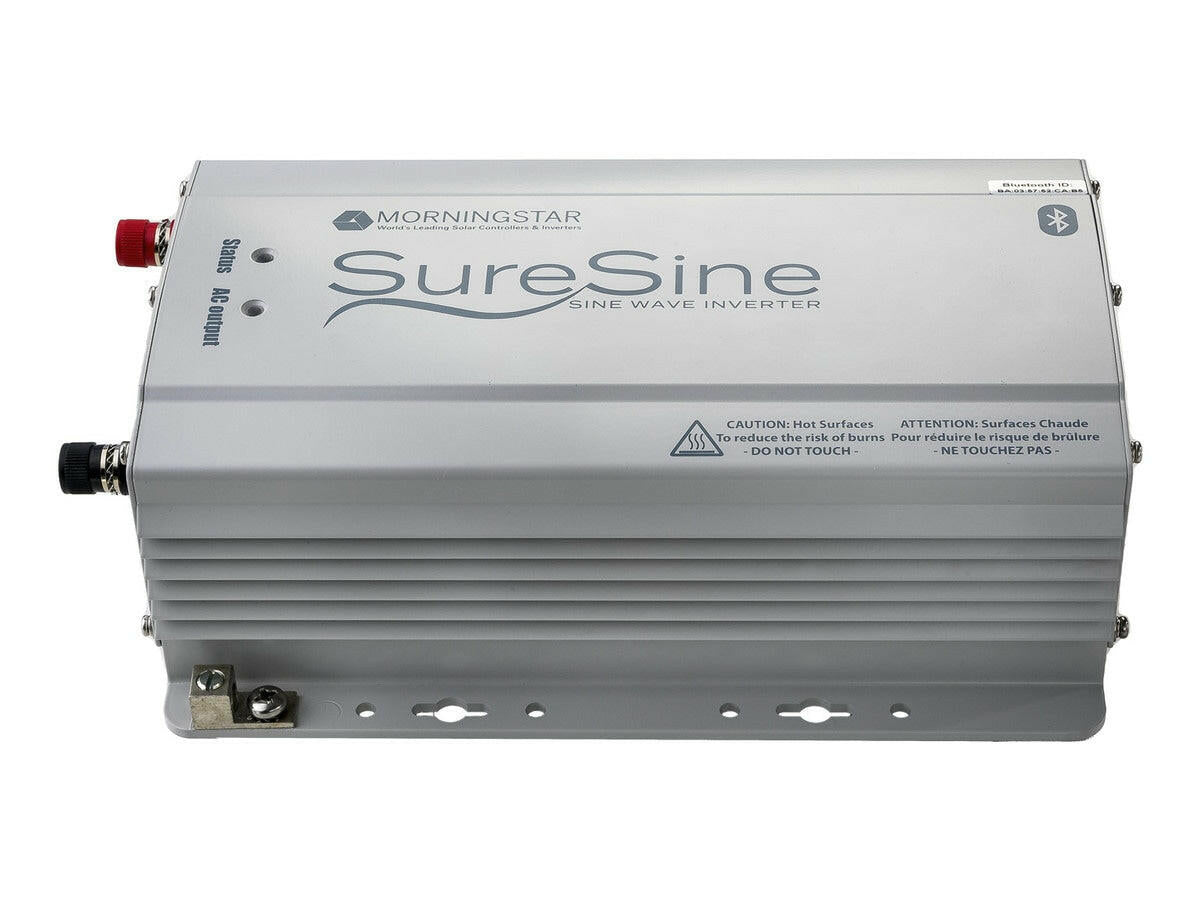

Morningstar Professional/SureSine 150 48 V Pure Sine Wave Inverter with North America Type B Receptacle

Since 1993 the name Morningstar has been synonymous with industry-leading charge controllers, used in mission-critical applications around the world. With that heritage and reputation, "Morningstar of Inverters" has a very high bar to meet. The new SureSine line was conceived for exactly that reason: meeting customer requests for a Morningstar inverter that's equal to the quality and performance of our charge controllers. These new models are more than up to that task. The new SureSine off-grid inverter line is comprised of six new models from 150W-2,500W with 120V/60Hz or 230V/50Hz output and 12, 24 or 48V DC input options to cover a wide range of off-grid applications requiring a high-performance, industrial-grade, pure sine wave inverter. They greatly expand our inverter offering that started with the acclaimed SureSine Classic. SureSine line uses industrial-grade build quality throughout, with models built around premium toroidal transformers for improved sinewave stability. Designed for the most demanding off-grid mission-critical installations. Superior thermal performance with fanless design means higher reliability- for example, the 300W model doesn't derate until 45 C and delivers 200W at 60 C. The small 150W model doesn't derate even at 60 C! That's outstanding performance in their power classes. Full communications capabilities include: RS485, USB, Ethernet, MS-CAN, Bluetooth while using industry-standard MODBUS protocol.

Features

• Inverter Functions: DC/AC conversion with pure sinewave output
• Superior industrial-grade product design and manufacturing
• Engineered for system-level integration and communication with Morningstar charge controllers
• Communication ports: RS485 USB, Ethernet, MS-CAN, Bluetooth while using industry-standard MODBUS protocol
• Wireless Android and iOS utility apps included for set-up and monitoring with remote devices
• AC hardwire terminal option available on selected models (all power ranges and frequencies)
• Remote On/Off improves safety and enables control in inaccessible locations
• Auxiliary Power Output (700-2500 W models) provides power for an EIA-485 bus or other small DC loads

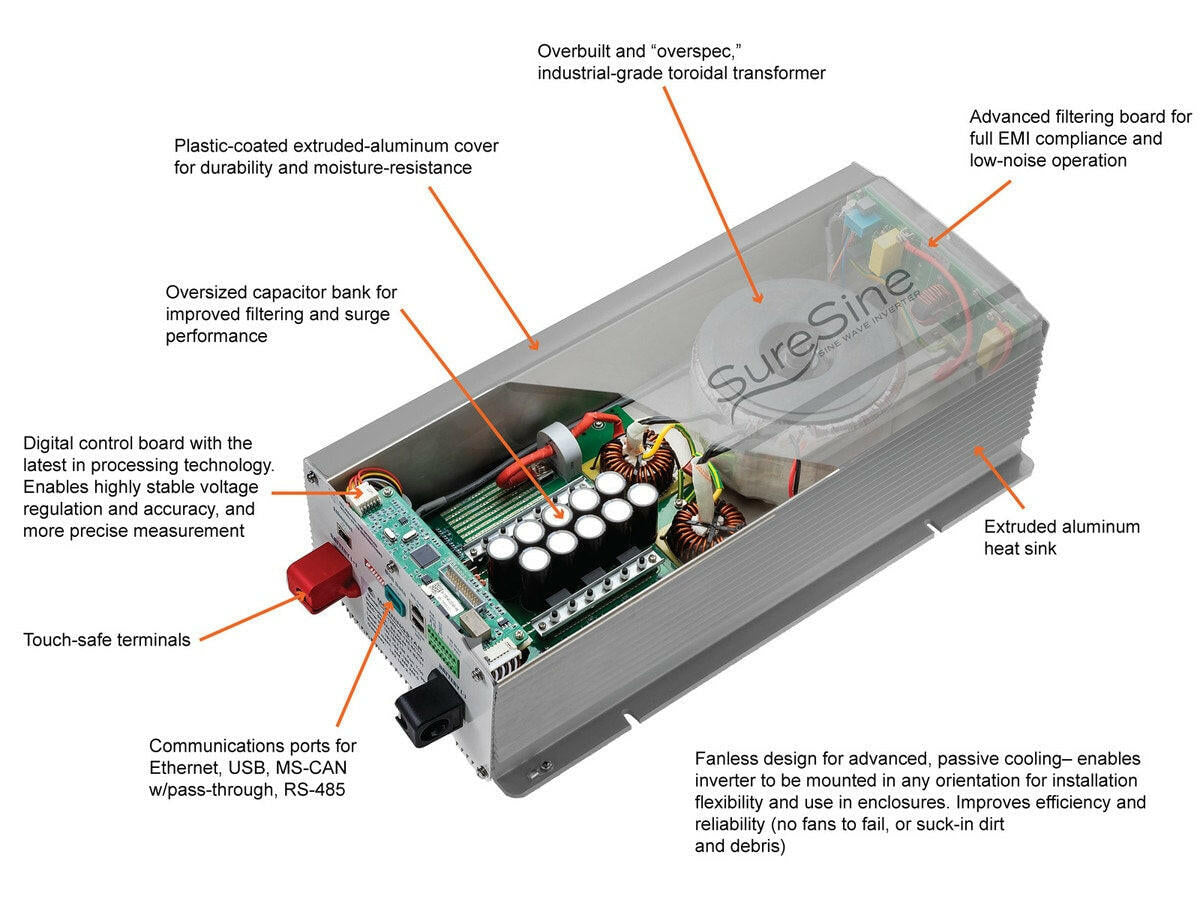

• Overbuilt, industrial-grade low-frequency transformer for improved sinewave stability
• Fanless convection cooling with extruded aluminum heat sinking, for maximum efficiency and reliability
• Status LEDs for both System and AC Sinewave output, to ensure reliable operation and notify of any system alerts
• Industry leading safety, low-noise and high performance NRTL certifications for reliability and system conformance
• Configuration can be achieved via manual DIP switch configuration or digitally programmable custom setpoints
• Multiple AC hardwire remote terminal options on selected models
• Industry leading safety, low-noise and high performance NRTL certifications for reliability and system conformance
• Electronic Protections: AC Short Circuit, AC Overload, High/Low Voltage

Specifications

• Series/Model: Professional/SureSine 150
• Dimensions:
  • Length: 312 mm
  • Width: 190 mm
  • Height: 96 mm
• Continuous Power at 25°C: 150 W
• Output AC Voltage: 120 V ±5%
• Output AC Frequency: 60 Hz
• Maximum Efficiency: 90%
• Protection Category: IP20
• Operating Temperature: 40-60°C
• Humidity (Non-Condensing): 100% RH
• Total Harmonic Distortion (THD): <2%
• Self-Consumption:
  • AC Output On: 2.6 W
  • AC Output Off: 0.65 W
• Rated Battery Voltage: 48 V
• Battery Operating Voltage: 42-66 V
• Power Surge:
  • 300 W at 40°C (<5 sec)
  • 225 W at 40°C (1 min)
  • 180 W at 40°C (3 min)
• Battery Reverse Polarity: Replaceable Internal Fuse
• AC Output Protection:
  • Short-Circuit: Yes
  • Overload: Yes
• Alarms, Disconnects, Reconnects:
  • Low Voltage: Yes
  • High Voltage: Yes
  • High Temperature: Yes
• Communications:
  • Wired: RS485, MS-CAN
  • Wireless: Bluetooth, Companion Android & iOS Apps
• Data Storage: 4MB / 5 Years Internal
• Cooling: Fanless Natural Convection
• Standards Compliance:
  • IEC-62109-1, IEC 62109-2, IEC 62368-1
  • UL 1741, UL 458 (Pending)
  • CE/UKCA Compliant
  • IEC/EN 61000, IEC/EN 55032, IEC/EN 55011
• Warranty: 5 Years
• Weight: 8.4 lb
