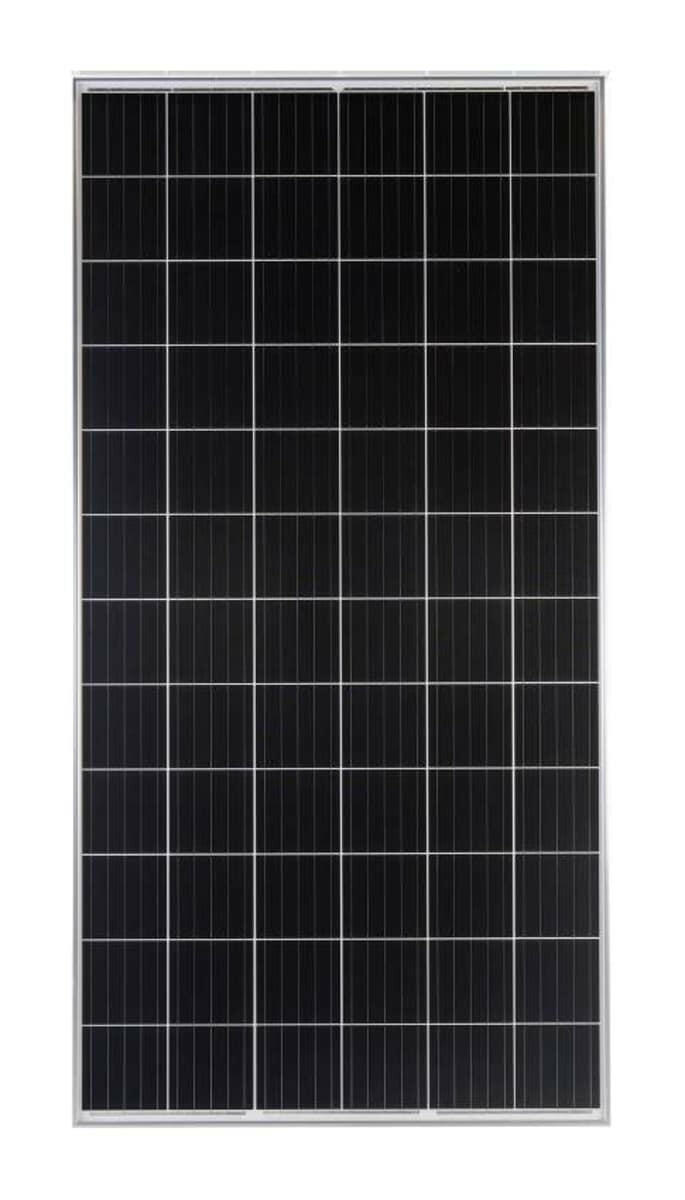

Mission Solar MSE390SR9S 390w Mono Solar Panel

 Features

• Certified Reliability - Tested to UL1703 and IEC standards. PID resistant. BAA Compliant for government projects
• Advanced Technology - PERC and 5 busbar drive >19.3% module efficiency. Ideal for all applications
• Excellent Weather Resilience - 5631 Pa front and back load (117 psf) tested load to UL1703
• BAA Complaint for Government Projects - Buy American Act, American Recovery & Reinvestment Act


Specifications

• Length: 1999 mm
• Width: 1008 mm
• Height: 40 mm
• Cells Technology: P-Type Monocrystalline Silicon
• Cell Dimensions: 158.75 mm
• Number of Half Cells: 72 (6 x 12)
• Maximum Power (Pmax): 390 W STC/360.7 W PTC
• Maximum Power Voltage (Vmp): 41.05 V
• Maximum Power Current (Imp): 9.499 A
• Open-Circuit Voltage (VOC): 48.96 V
• Short-Circuit Current (Isc): 10.024 A
• Maximum System Voltage: 1000 VDC or 1500 VDC
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 20%
• Frame Material: Anodized Aluminum Alloy
• Front Glass: 3.2 mm (0.126 in) Tempered, Low-Iron, Anti-Reflective Coating
• Frame Color: Black
• Backsheet Color: Black
• Output Cables: PV Wire, 1.2 m (47.24 in), 4mm2/12 AWG
• Connector Type: MC4 Compatible
• Fire Type: Type 1, Class C
• Front Side Maximum Static Loading: 5361 Pa (117 psf) Tested to UL1703 standard
• Rear Side Maximum Static Loading: 5361 Pa (117 psf) Tested to UL1703 standard
• Hailstone Test: 25 mm at 23 m/s
• Operating Temperature: -40 to 185 deg F
• Temperature Coefficients of Pmax: -0.375%/deg C
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.28%/deg C
• Temperature Coefficients of Isc: 0.045%/deg C
• Nominal Operating Cell Temperature: 46.43 deg C (+/-2 deg C)
• Junction Box: Protection Class IP67 Rated with 3 Bypass-Diodes
• Power Output Tolerance: 0-5 W
• Encapsulant: Ethylene Vinyl Acetate (EVA)
• Standards: UL 1703, IEC 61215-61730-61701 - Salt Mist, TUV, CSA, CUS, BAA, CuL
• Warranty: 12 Years Product, 25 Years Linear Performance
• Weight: 52 lb
• Length: 16.8 in
• Width: 4.9 in
• Height: 12.7 in
• Input Voltage: 120 Vac
• Output Voltage: 120 Vac
• Amperage Rating: 48 V
• Power Rating: 3500 W
• Battery Chemistry: Lead Acid/Lithium
• Suitable For Use With: Pure Sine Wave Inverter
