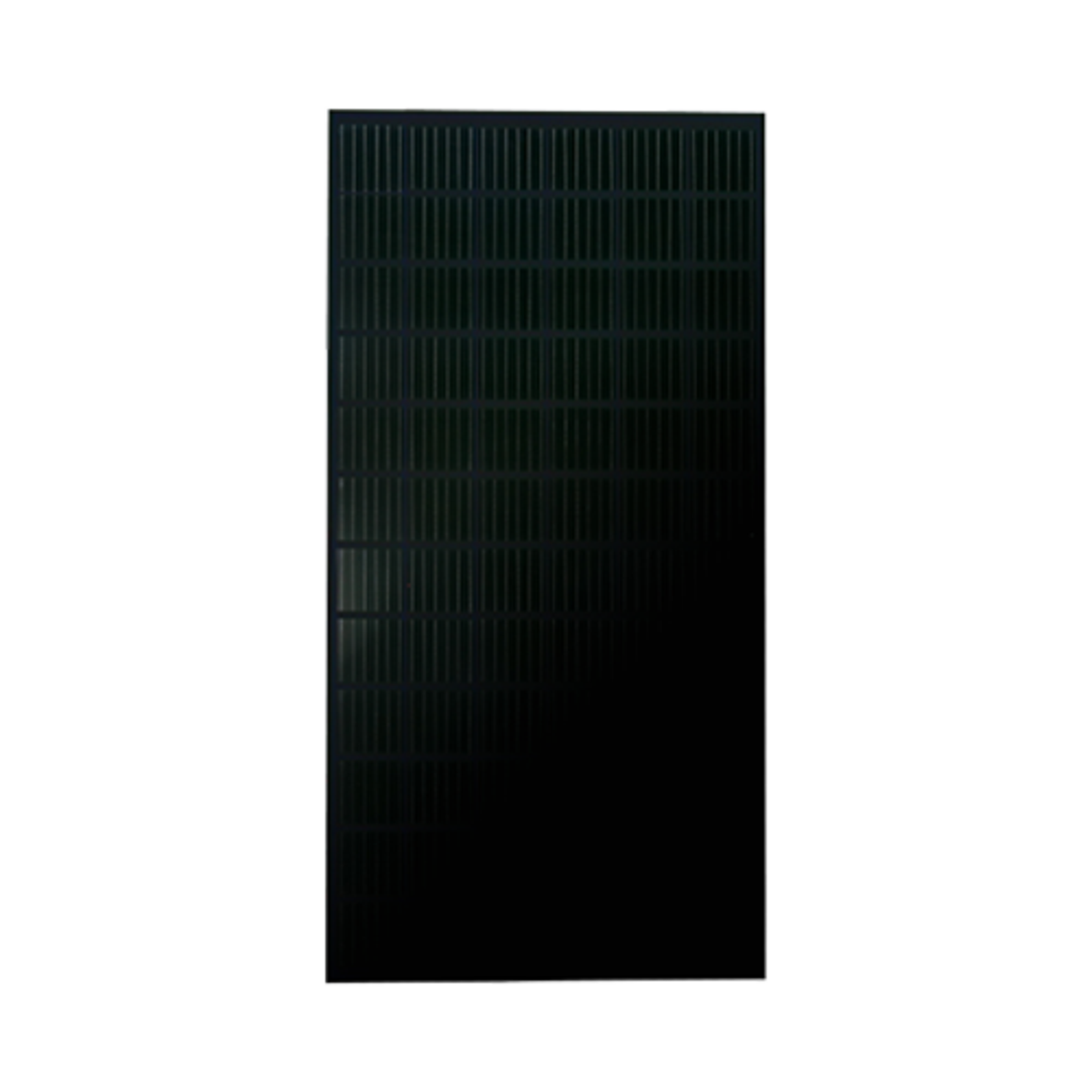

Mission Solar MSE Series 415 W Monocrystalline Solar Panel

Mono-crystalline solar panel is a 72 cell solar panel with the highest power output in its class. It's high efficiency and certified reliability make it ideal for utility grid-tied installations including ground-mounted and commercial rooftop solar panel systems.

Features

• High peak power output of 415 W
• Resistance to salt mist corrosion
• Advanced technology including PERC and 6 busbars
• Anodized Black aluminum frame
• Suitable for PV systems up to 1,500 VDC
• Up to 5400 Pa front load & 3,600 Pa back load
• Qualifies for the Buy American Act


Specifications

• Series: MSE
• Length: 82.1 in
• Width: 41.5 in
• Depth: 1.6 in
• Material: Clear Anodized Aluminum Alloy Frame
• Color: Black
• Power Voltage: 40.09 V
• Power Current: 10.35 A
• Power Rating: 415 W
• Open Circuit Voltage: 48.91 V
• Short Circuit Current: 10.91 A
• Voltage Rating: 1500 V
• Cell Type: Monocrystalline
• Number of Cells: 72 Perc
• Efficiency: 18.9%
