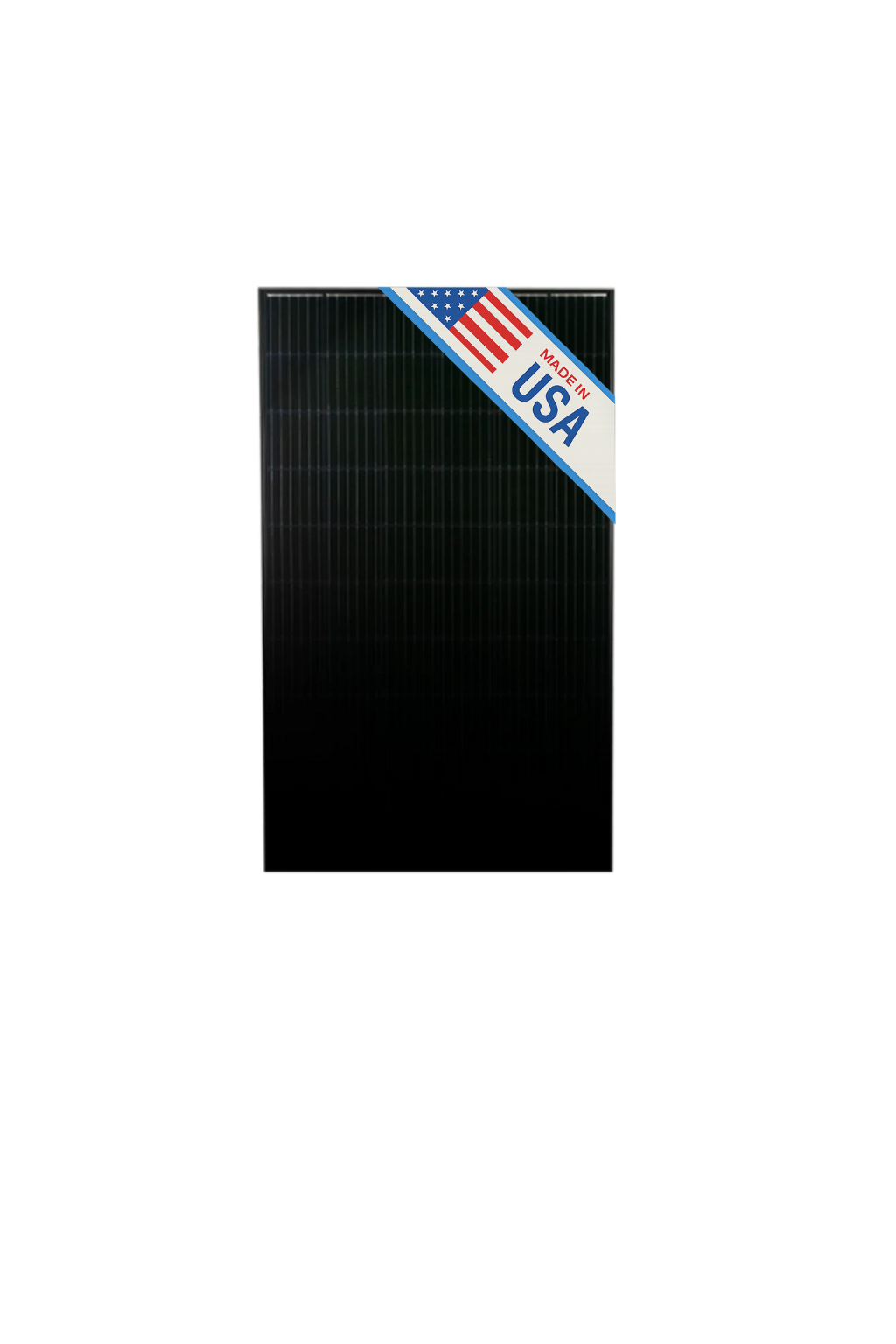

Mission Solar 340W Solar Panel 60 Cell MSE340SX5T

Mission Solar Energy is headquartered in San Antonio, Texas, where we manufacture our modules. We produce American, high quality solar modules ensuring the highest in-class power output and best in-class reliability. Our product line is tailored for residential, commercial and utility applications. Every Mission Solar Energy solar module is certified and surpasses industry standard regulations, proving excellent performance over the long term.

Features

• PID resistant
• Resistance to salt mist corrosion
• Perc and 6 busbar drive 18.7% module efficiency
• Ideal for all applications
• 5600 Pa front and 4800 Pa back load
• Tested load to UL 61730 › 40mm frame


Specifications

• Series: MSE
• Length: 68.82 in
• Width: 41.5 in
• Depth: 1.57 in
• Material: Clear Anodized Aluminum Alloy Frame
• Color: Black
• Power Voltage: 33.2 V
• Power Current: 10.24 A
• Power Rating: 340 W
• Open Circuit Voltage: 40.82 V
• Short Circuit Current: 10.86 A
• Voltage Rating: 1000 V
• Cell Type: Monocrystalline
• Number of Cells: 60 Mono-Perc
• Efficiency: 18.5%
