MidNite Solar Type 1 Small Breaker Boxes General Use Enclosure

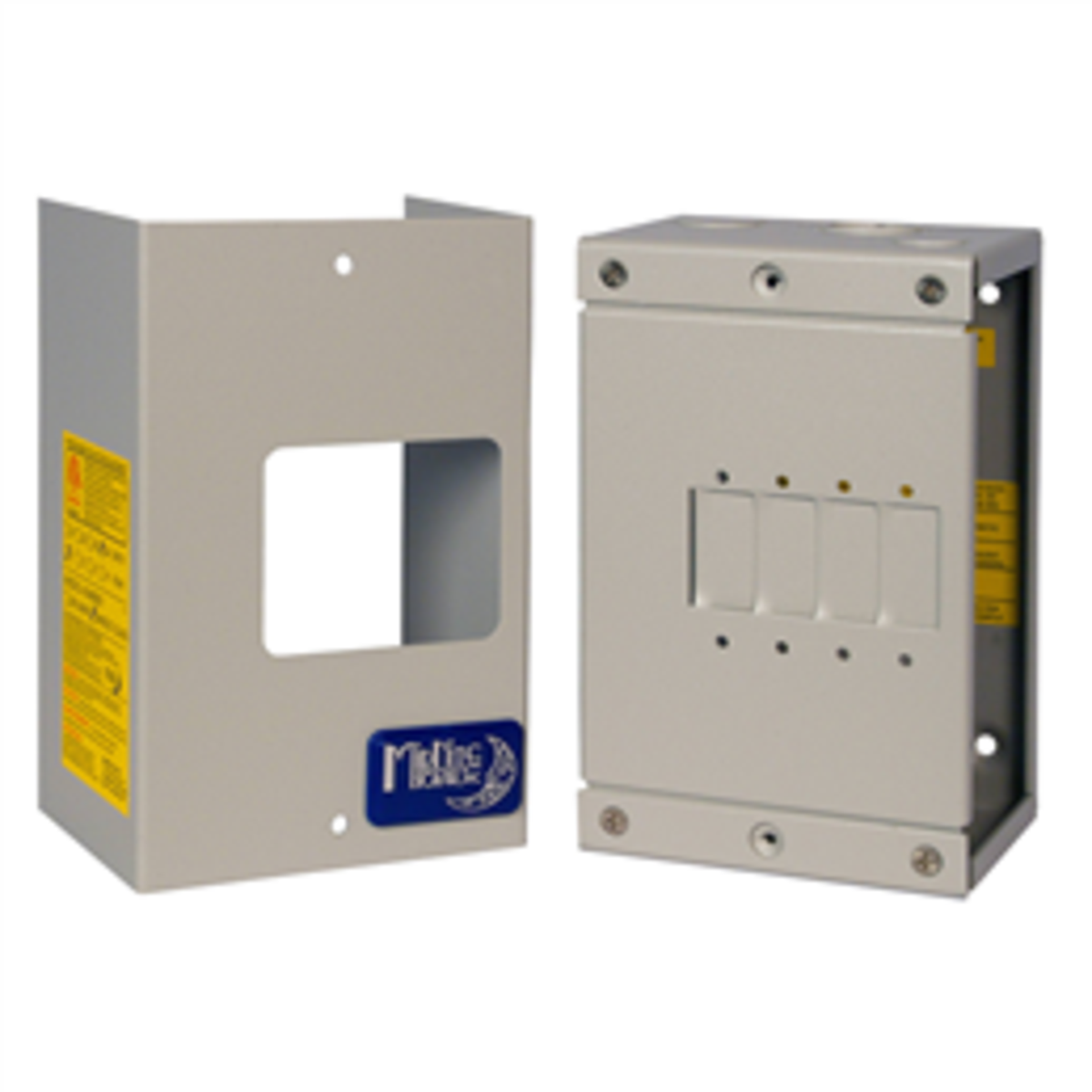

The Baby Box and Big Baby Box are small general purpose breaker boxes that will hold up to four DIN-mount breakers from 1 to 63 A. The Big Baby Box also includes a ground box lug and mounting provisions for a short insulated busbar. The Big Baby Box's dimensions are 9"H x 5"W x 4"D, and it weighs 3 lbs. The MNEDC Quad is the same size as the Big Baby but holds up to 4 MNEDC-type panel-mount AC/DC breakers or panel-mount GFP breakers. The MNDC15 is a general-use enclosure that will hold up to 15 MNEDC type panel-mount breakers, and one larger 175 or 250 A breaker on the end. Breakers are sold separately. The MNDC15 dimensions are 23"H x 12"W x 3.5"D, and it weighs 25 lbs. These breaker boxes are listed to applicable UL standards. The MNBCB-1000/100 Battery Combiner can be used to combine circuits from multiple inverters or battery strings or both. There are spaces for six large 175 A or 250 A breakers on both ends. 35.5" W x 22"H x 9.75"D, and weighs 50 lbs. The MNBCB-1000/50 is similar, but has a shunt with the correct ratio for the SMA Sunny Island system. Add the MNBCB-Busbar for more connections, useful for the inverter side of the shunt. It has five 3/8" studs and hole for the shunt connection and comes with red and white insulators.

Features

• General Use Powder Coated Aluminum Enclosure For 4 Panel Mount Type Breakers From 5 - 100 Amp
• Convenient size for small applications
• Big Baby's DIN rail accepts up to 4 breakers (not included)
• Quad accepts up to 4 panel mount breakers (not included)
• Breakers: 1-63 amp Big Baby and 1-65 amp Quad
• Ground lug accepts up to 1/0 wire
• Not Recommended For Use With Cables Larger Than Awg #4 (19mm)


Specifications

• Type: Small Breaker Boxes
• Voltage Rating: 240 VAC, 300 VDC
• Enclosure Rating: Type 1
• Material: Aluminum
• Finish: Powder Coated
• Standards: UL Listed, ETL Listed
• Warranty: 5 Years
• Dimensions: 8 in Length x 5 in Width x 4 in Depth
