Description

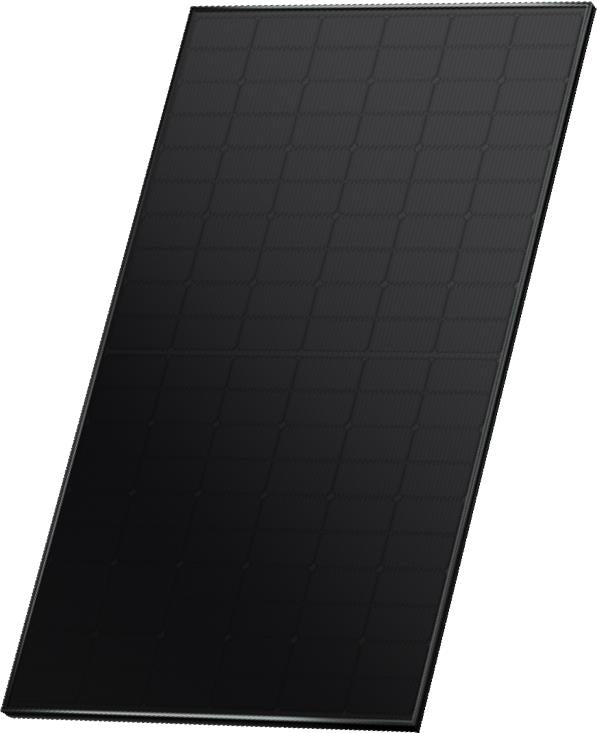

The MB_B120AyB_380 from Meyer Burger blends advanced Heterojunction Technology (HJT) with SmartWire Connection Technology (SWCT®) to deliver efficiency, aesthetics, and durability. Designed in Switzerland and built in Germany, this panel sets a benchmark for engineering precision and long-term performance in solar modules.

Key Features

  • 380W Output with ~20.7% Efficiency — Higher energy yield per area for residential and commercial use

  • 120 Half-Cell HJT with SWCT® — Reduces hot spots, enhances shade tolerance and improves reliability

  • Sleek Black-on-Black Design — Offers seamless rooftop appearance with strong thermal control

  • High Durability Ratings — Certified for up to ~125 lbs/ft² front load and ~83 lbs/ft² uplift (≈6000 Pa front, 4000 Pa rear)

  • Eco-Friendly Manufacturing — Lead- and PFAS-free production powered by 100% renewable energy

  • Robust Environmental Certifications — IEC 61215, IEC 61730, UL 61730, PID resistance IEC 62804, Salt Mist IEC 61701, and more

Technical Specifications

Specification Details
Rated Power (STC) 380 W
Efficiency (STC) ~20.7%
Cell Technology & Count Mono HJT, 120 half-cut cells
Open Circuit Voltage (Voc) ~44.5 V
Short Circuit Current (Isc) ~10.6 A
Vmp / Imp ~38.2 V / ~10.0 A
Temperature Coefficient (Pmax) −0.259% / °C
Max System Voltage 1000 V DC
Series Fuse Rating 20 A
Frame & Glass 35 mm black anodized frame, tempered glass
Junction Box & Connector IP68-rated, MC4 compatible, 1.2 m output cable
Mounting Tolerance Front load ~6000 Pa; uplift ~4000 Pa
Warranty 25‑year product & performance (≥ 92% at 25 y)


Why Choose This Panel?

  • Exceptional performance under low light and high-temperature conditions

  • Minimal degradation over time thanks to HJT + SWCT® design

  • Stylish yet functional design with thermal advantages

  • Precision engineering and quality control from Swiss design and German manufacturing

  • Sustainably engineered, built for high ROI over its lifetime



Document: Specification Sheet
