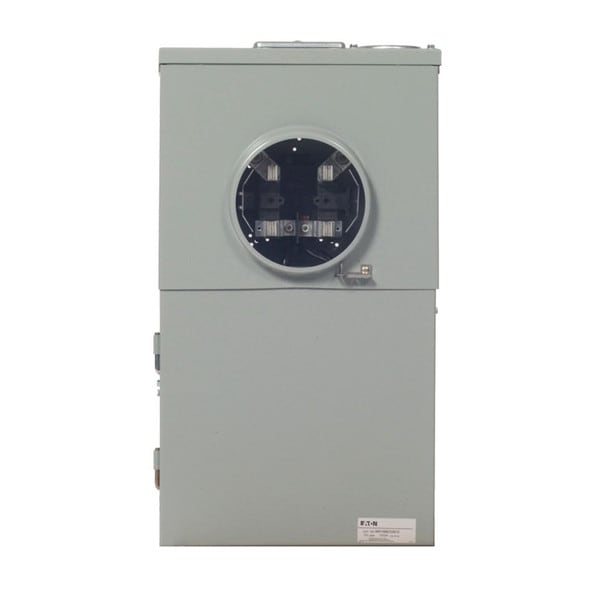

MBT48B200BTS - Meter Breaker

The Meter Breaker is designed for reliable and efficient residential and light commercial metering applications. With a 200A amperage rating and 8 circuits, it provides ample capacity for most electrical systems. This surface-mounted meter breaker features a 4-jaw, single-phase design and supports wire sizes from 6 AWG to 350 Kcmil. It is rated for 120/240V AC and includes both top and bottom feed options for flexible installation.

Key Features:

• Product Type: Meter Breaker
• Amperage Rating: 200 Amps
• Circuit Count: 8 Circuits
• Jaw Configuration: 4-Jaw
• Phase Configuration: Single-Phase
• Voltage Rating: 120/240V AC
• Wire Size Range: 6 AWG to 350 Kcmil
• Bus Material: Aluminum
• Feed Type: Top/Bottom Feed
• Overall Height: 14.44 Inches
• Overall Width: 14.44 Inches
• Overall Length: 4.94 Inches

This meter breaker is an ideal choice for managing residential and light commercial electrical systems, offering reliable performance and ease of installation.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - MBT48B200BTS
