Magnum MPXS250-30D-L Panel Extension Box

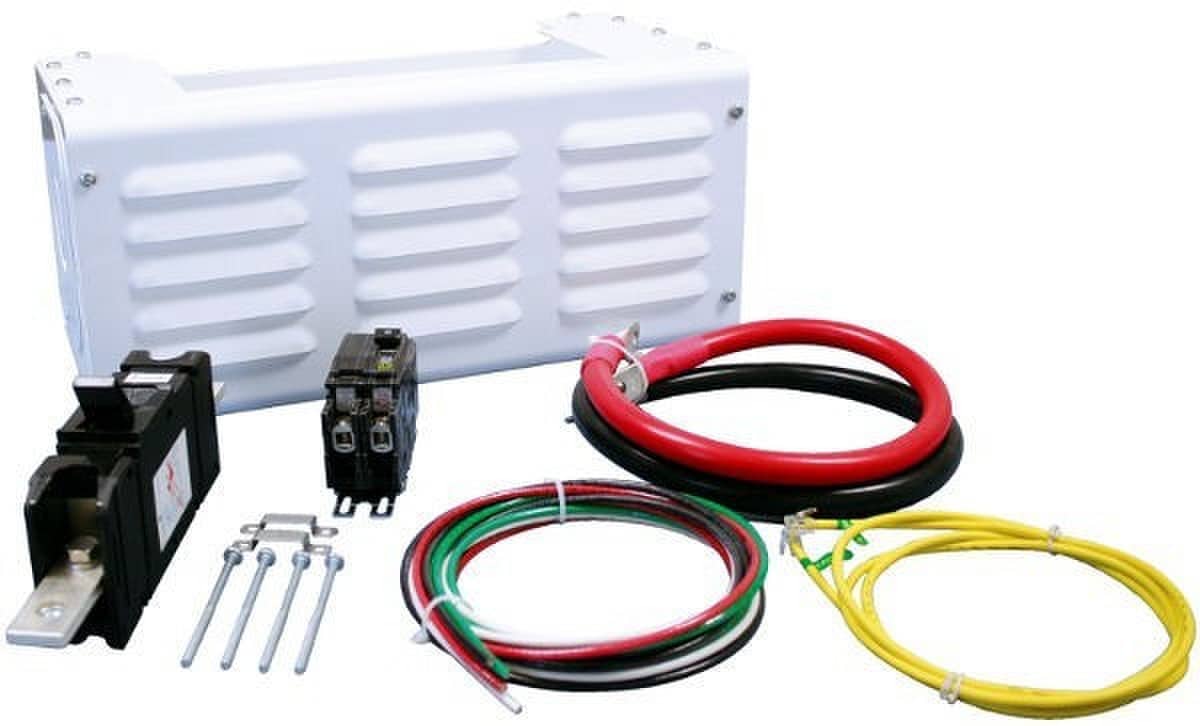

The MPX Series Extension Boxes allow additional Magnum inverters to be mounted with and connected to the MP Series Systems Panels. The top of the MPX is designed to allow Magnum inverters to fit seamlessly into the top. The MPX Series comes with the AC and DC breakers and wiring to install another Magnum Inverter. An inverter hood (not shown) is also included with each MPX extension to allow the inverter to be mounted vertically. There are three models of the MPX Series, depending on which MP enclosure it will be installed. Each model has a left and right side version depending on which side of the MP enclosure it will be installed - this ensures correct battery cable lengths. MPXD250-30D (-L or -R): MPX enclosure that installs on the MPDH250-30D. Includes one 30-amp AC double-pole input circuit breaker, one 250-amp DC disconnect breaker, an inverter hood, and all AC and DC inverter wiring to add another inverter.

Features

• Safety - AC over-current protection, grounding connections, and full system inverter bypass switch
• Efficiency - designed specifically for single inverter applications
• User friendly - easy installation and operation


Specifications

• Suitable For Use With: Extend Panel System
• Includes: 250 ADC Breaker, 30 A 2-Pole AC Breaker, Wires, Hood
