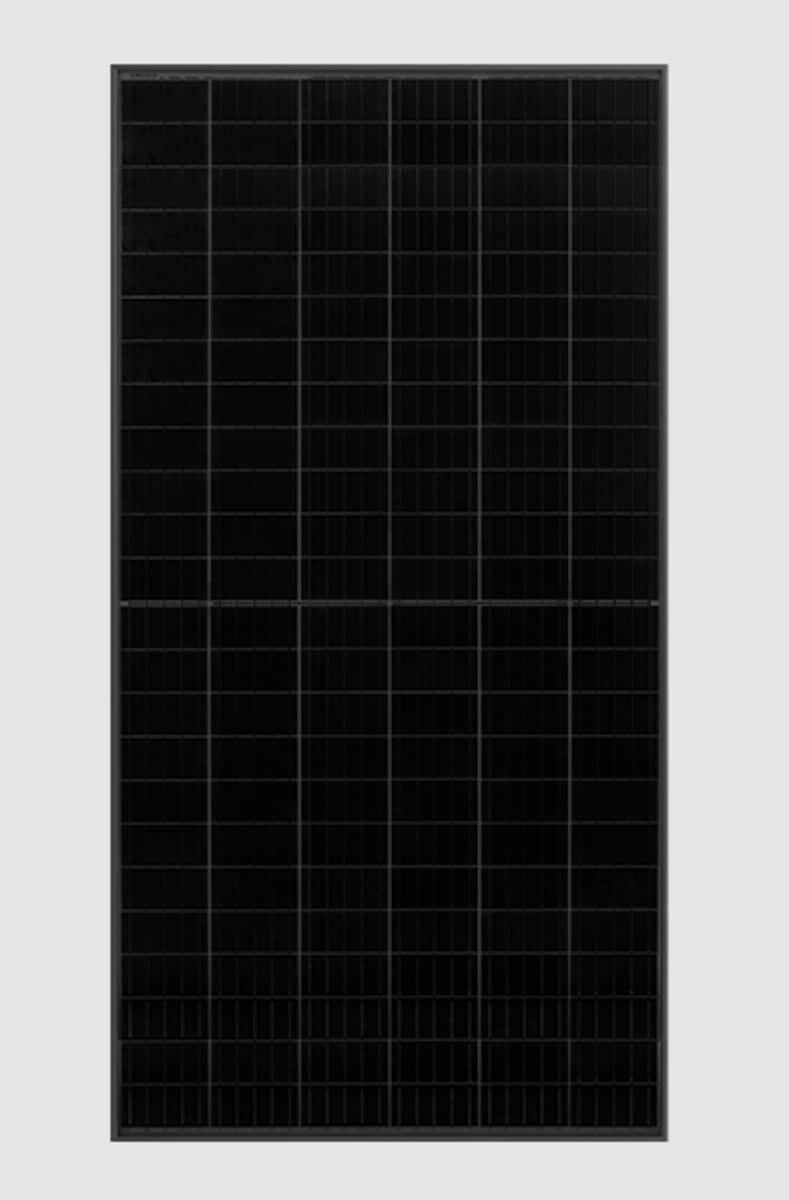

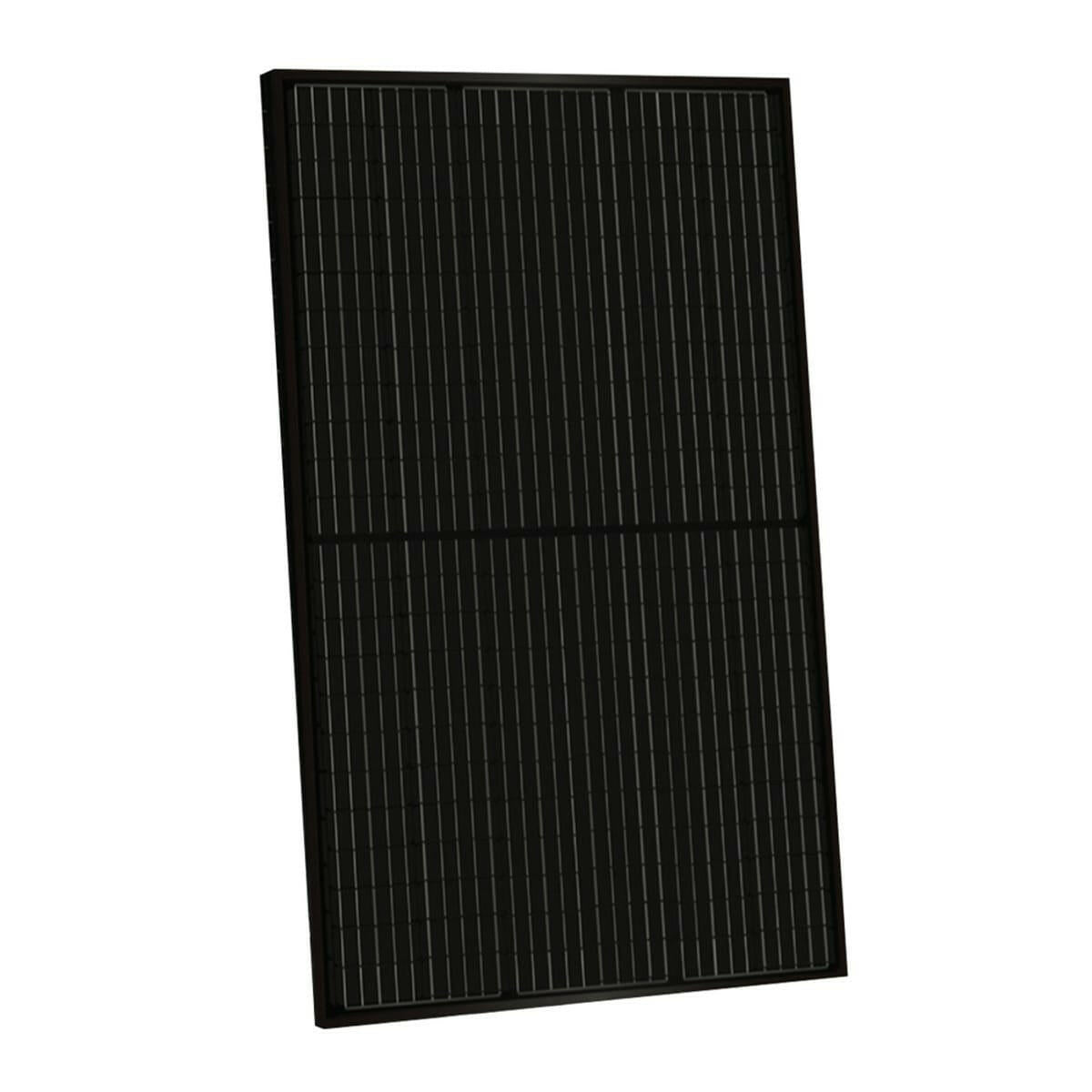

Jinko JKM390M-72HBL-V-D1 390W Black on Black 144 Half-Cell Mono Solar Panel

The EAGLE® Continental module includes our Diamond cells. These uniquely designed cells feature high-efficiency mono PERC technology and enable module power up to 400W.

Features

• Superior Aesthetics: Black backsheet and black frame create ideal look for residential applications
• Thick and Tough: Fire Type 1 rated module engineered with a thick frame, 3.2mm front side glass enables hail impact resistance at 50 mm, and thick backsheet for added durability
• Protected Against All Environments: Certified to withstand extreme weather
• Diamond Half-Cell Technology: World-record breaking efficient mono PERC half-cells deliver high power in a small footprint
• Shade Tolerant: Twin array design allows continued performance even with shading by trees or debris
• Staubli MC4 connector
• Certified to withstand humidity, heat, rain, marine environments, wind, hailstorms, and packed snow
• NYSE-listed since 2010, Bloomberg Tier 1 manufacturer
• Top performance in the strictest 3rd party labs
• Automated manufacturing utilizing artificial intelligence
• Vertically integrated, tight controls on quality
• Premium solar module factory in Jacksonville, Florida
• Positive power tolerance of 0~+3%


Specifications

• Series/Model: Eagle Continental
• Length: 2008 mm
• Width: 1002 mm
• Height: 40 mm
• Cells Technology: Monocrystalline (Mono) PERC Diamond
• Cell Dimensions: 158.75 mm x 158.75 mm
• Number of Half Cells: 144 (6 x 24)
• Maximum Power (Pmax):
  • 390 W STC
  • 287 W NOCT
  • 361.7 W PTC
• Maximum Power Voltage (Vmp):
  • 39.64 V STC
  • 37 V NOCT
• Maximum Power Current (Imp):
  • 9.84 A STC
  • 7.75 A NOCT
• Open-Circuit Voltage (VOC):
  • 48.6 V STC
  • 45.8 V NOCT
• Short-Circuit Current (Isc):
  • 10.46 A STC
  • 8.45 A NOCT
• Maximum System Voltage: 1500 VDC (UL & IEC)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 19.38% STC
• Frame Material: Anodized Aluminum Alloy
• Front Glass: 3.2 mm, High Transmission, Anti-Reflection Coated, Low Iron, Tempered Glass
• Frame Color: Black
• Backsheet Color: Black
• Irradiance:
  • 1000 W/m² STC
  • 800 W/m² NOCT
• Output Cables: 12 AWG, 1400 mm (55.12 in)
• Connector Type: Staubli MC4 Series
• Fire Type: Type 1
• Pressure Rating:
  • 5400 Pa (Snow)
  • 2400 Pa (Wind)
• Hailstone Test: 50 mm Hailstones at 35 m/s
• Operating Temperature: -40 to 85°C
• Cell Temperature: 25°C STC
• Ambient Temperature: 20°C NOCT
• Temperature Coefficients of Pmax: -0.35%/°C
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.29%/°C
• Temperature Coefficients of Isc: 0.048%/°C
• Nominal Operating Cell Temperature: 45 +/-2°C
• Air Mass (AM): 1.5 STC/1.5 NOCT
• Junction Box: IP68 Rated
• Standards:
  • ISO9001:2008 Quality Standards
  • ISO14001:2004 Environmental Standards
  • IEC61215, IEC61730 Certified
  • ISO 45001 2018 Occupational Health & Safety Standards
  • UL1703/61730 Certified
  • ISO-Plant
  • IEC, PV Cycle, TUV, CE
• Warranty:
  • 25 Years Product
  • 25 Years Linear Power
• Weight: 49.61 lb
• Application: Residential
