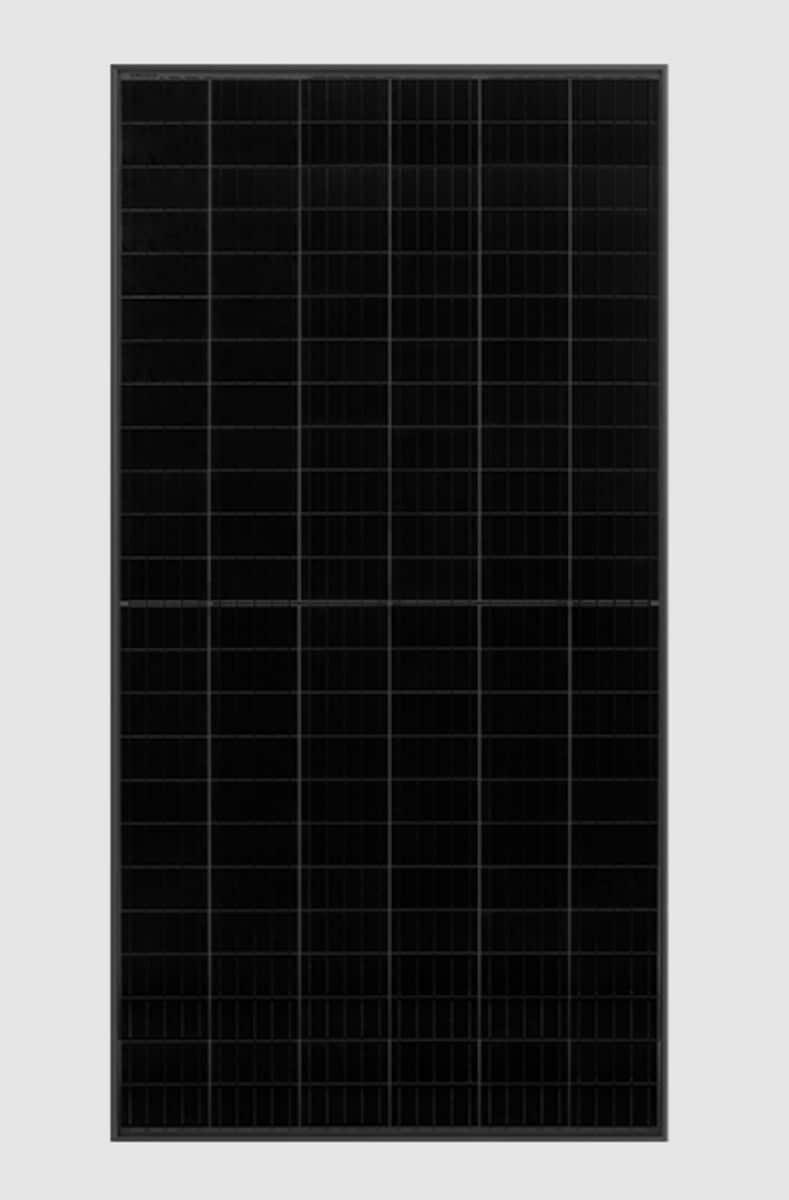

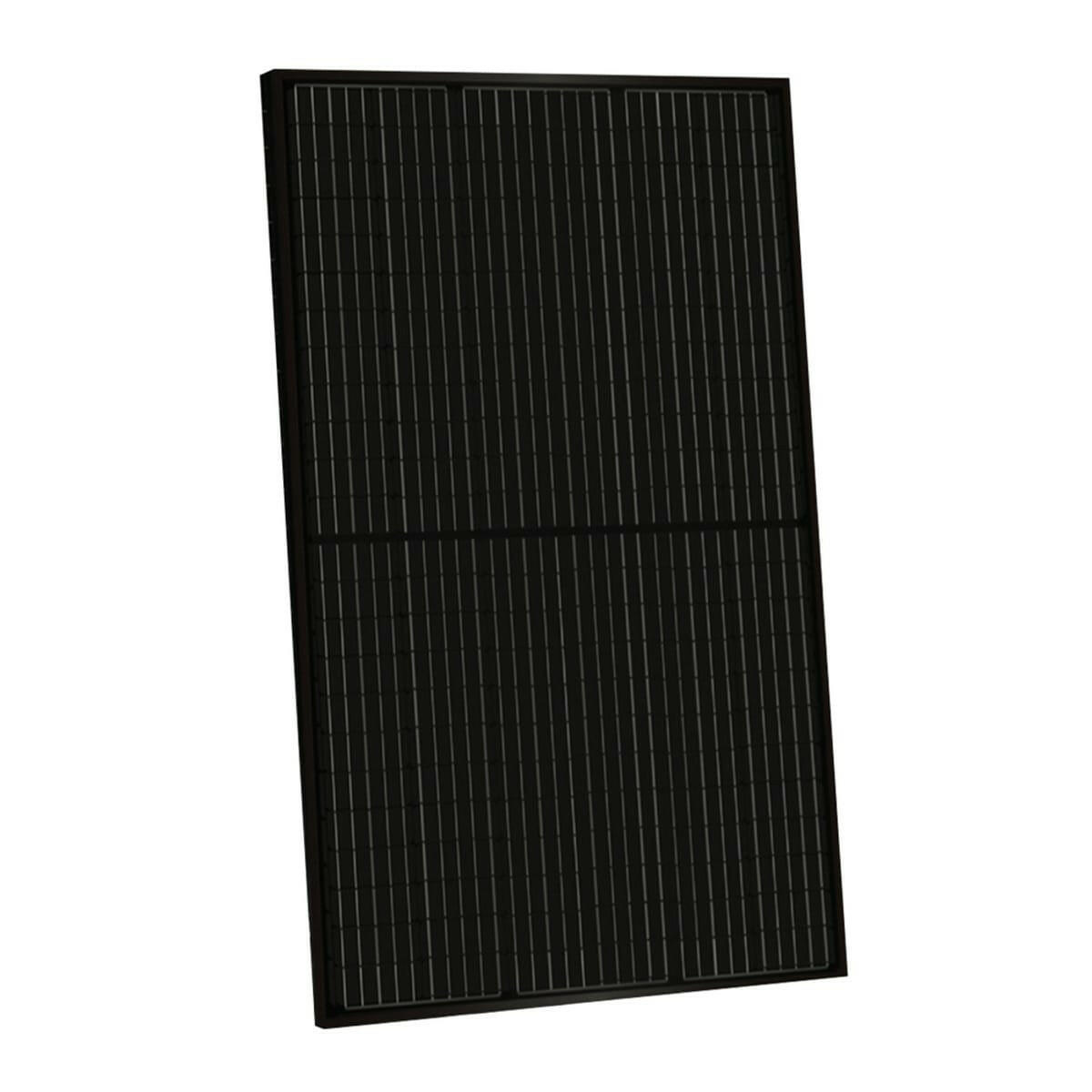

Jinko JKM385M-72HBL-V 385W Black on Black 144 Half-Cell Mono Solar Panel

The EAGLE® Continental module includes our Diamond cells. These uniquely designed cells feature high-efficiency mono PERC technology and enable module power up to 400W.

Features

• Superior Aesthetics: Black backsheet and black frame create ideal look for residential applications
• Thick and Tough: Fire Type 1 rated module engineered with a thick frame, 3.2mm front side glass enables hail impact resistance at 50 mm, and thick backsheet for added durability
• Protected Against All Environments: Certified to withstand extreme weather
• Diamond Half-Cell Technology: World-record breaking efficient mono PERC half-cells deliver high power in a small footprint
• Shade Tolerant: Twin array design allows continued performance even with shading by trees or debris
• Staubli MC4 connector
• Certified to withstand humidity, heat, rain, marine environments, wind, hailstorms, and packed snow
• NYSE-listed since 2010, Bloomberg Tier 1 manufacturer
• Top performance in the strictest 3rd party labs
• Automated manufacturing utilizing artificial intelligence
• Vertically integrated, tight controls on quality
• Premium solar module factory in Jacksonville, Florida
• Positive power tolerance of 0~+3%


Specifications

• Series/Model – Eagle Continental
• Dimensions – 2008 mm (L) x 1002 mm (W) x 40 mm (H)
• Cells Technology – Monocrystalline (Mono) PERC Diamond
• Cell Dimensions – 158.75 mm x 158.75 mm
• Number of Half Cells – 144 (6 x 24)
• Maximum Power (Pmax) – 385 W STC / 283 W NOCT / 356.9 W PTC
• Maximum Power Voltage (Vmp) – 39.37 V STC / 36.8 V NOCT
• Maximum Power Current (Imp) – 9.78 A STC / 7.71 A NOCT
• Open-Circuit Voltage (VOC) – 48.4 V STC / 45.6 V NOCT
• Short-Circuit Current (Isc) – 10.38 A STC / 8.38 A NOCT
• Maximum System Voltage – 1500 VDC (UL & IEC)
• Maximum Series Fuse Rating – 20 A
• Module Efficiency – 19.13% STC
• Frame Material – Anodized Aluminum Alloy
• Front Glass – 3.2 mm, High Transmission, Anti-Reflection Coated, Low Iron, Tempered Glass
• Frame Color – Black
• Backsheet Color – Black
• Irradiance – 1000 W/m² STC / 800 W/m² NOCT
• Output Cables – 12 AWG, 1400 mm (55.12 in)
• Connector Type – Staubli MC4 Series
• Fire Type – Type 1
• Pressure Rating – 5400 Pa (Snow) & 2400 Pa (Wind)
• Hailstone Test – 50 mm Hailstones at 35 m/s
• Operating Temperature – -40 to 85°C
• Cell Temperature – 25°C STC
• Ambient Temperature – 20°C NOCT
• Temperature Coefficients of Pmax – -0.35%/°C
• Temperature Coefficients of Open-Circuit Voltage (VOC) – -0.29%/°C
• Temperature Coefficients of Isc – 0.048%/°C
• Nominal Operating Cell Temperature – 45 ±2°C
• Air Mass (AM) – 1.5 STC / 1.5 NOCT
• Junction Box – IP68 Rated
• Standards – ISO9001:2008, ISO14001:2004, IEC61215, IEC61730, ISO 45001:2018, UL1703/61730, ISO-Plant, IEC, PV Cycle, TUV, CE
• Warranty – 25 Years Product & 25 Years Linear Power
• Weight – 49.61 lb
• Application – Residential
