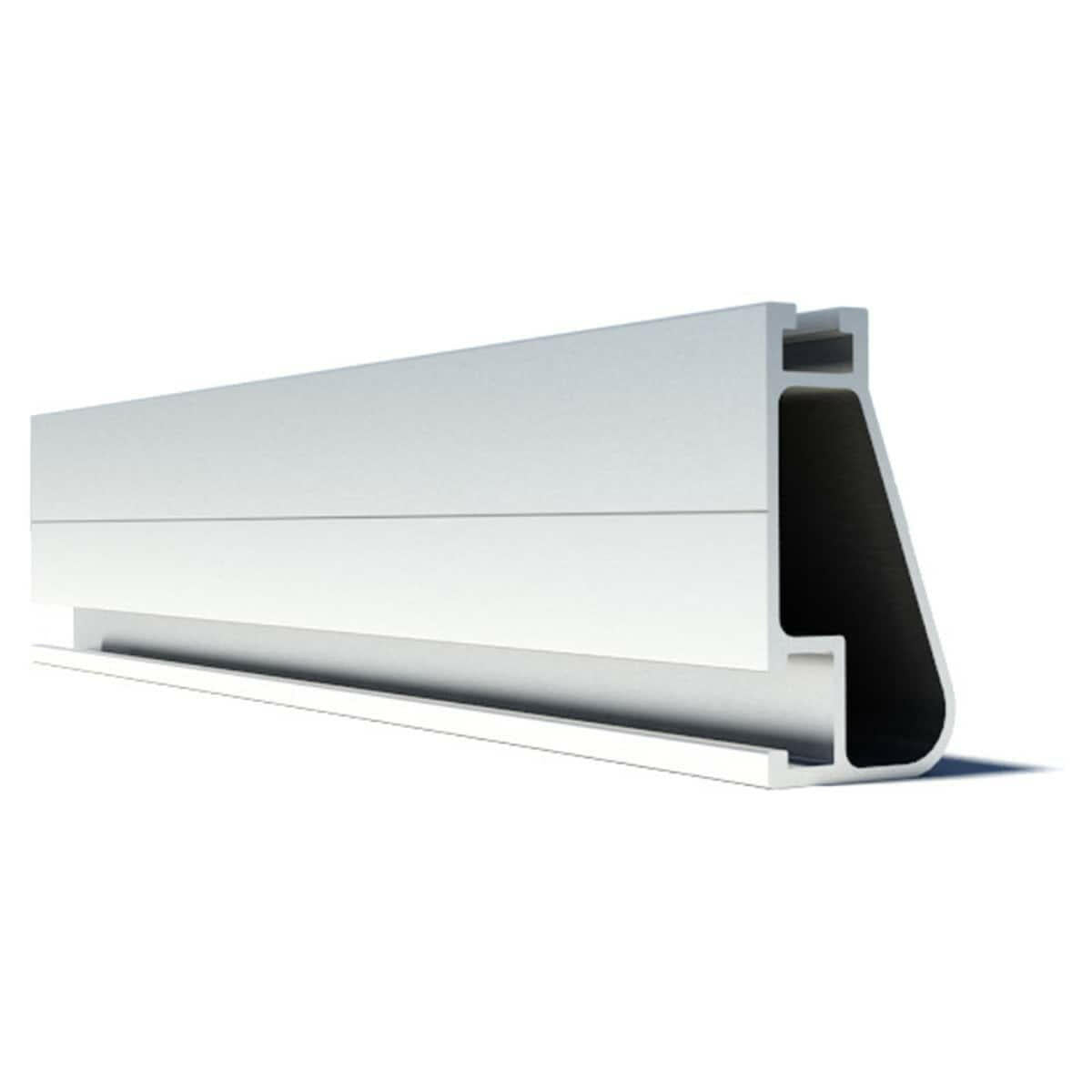

Ironridge 1-1/4 in x 168 in x 2.34 in Silver Aluminum XR Rail

The XR Rail Family offers the strength of a curved rail in three targeted sizes. Each size supports specific design loads, while minimizing material costs. Depending on your location, there is an XR Rail to match. XR1000 is a heavyweight among solar mounting rails. It's built to handle extreme climates and spans 12 feet or more for commercial applications. XR100 is the ultimate residential mounting rail. It supports a range of wind and snow conditions, while also maximizing spans. XR10 is a sleek, low-profile mounting rail, perfectly matched to regions with light or no snow. It achieves 6 foot spans, while also staying light and economical.

Features

• Safety - All components evaluated for superior structural performance
• UL 2703 system eliminates separate module grounding components


Specifications

• Dimensions: 1-1/4 in Width x 168 in Length x 2.34 in Height
• Material: Aluminum
• Color: Silver
• Finish: Clear Anodized


Documents

• Drawing Sheet
